Quantity discount

EFB Elektronik Network cable

S/FTP, CAT6, 1.50 m
Save CHF1.20 CHF8.07/1m
224Ratings
BrandMore from EFB Elektronik
Delivered between Sat, 16.8. and Thu, 21.8.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Colour

Length

Product details

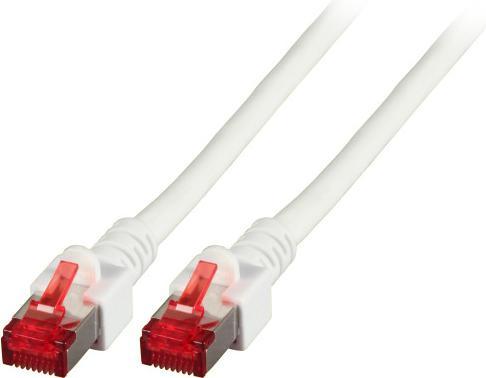

EFB-Elektronik Patch Cable Cat.6 EC6000 1.5m S/FTP

Manufacturer: EFB-Elektronik
Description: Patch Cable Cat.6 2xRJ45 with S/FTP
Type: EC6000 1.5m S/FTP
Cable Type: S/FTP
Category: 6
Length: 1.5 m
Connector Type Connection 1: RJ45 8(8)
Connector Type Connection 2: RJ45 8(8)
Outer Jacket Color: Yellow
Bend Protection Boot: Molded
Locking Clip Protection: Yes
Color of Bend Protection Boot: Yellow
Flame Retardant Design: Yes
Oil Resistant according to EN 60811-404: No
Cable Construction: 4x2
AWG Cross Section: 27
Pin Assignment: 1:1

The Cat.6 patch cable features gold-plated contacts and meets the requirements for 5 Gbit Ethernet.

Technical Product Features:

  • Cat.6 S/FTP cable with AWG27/7
  • Jacket material made of halogen-free LSZH
  • Fire Protection: flame retardant, halogen-free, low smoke
  • Connector: RJ45 to RJ45 with locking clip protection
  • Gold-plated contacts

The jacket of the shielded patch cable is made of halogen-free LSZH material and has a length marking on the boot. Additionally, the cable allows for power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at, and 4PPoE according to IEEE802.3bt. The RJ45 connectors are wired according to TIA/EIA 568B and follow a 1:1 configuration.

Suitable for a temperature range of 0 to 60 °C. The network cable features copper conductor material and is ideal for applications in structured building cabling, Industrial Ethernet, and data centers. The bandwidth reaches up to 250 MHz.

EAN: 4049759021092.

Key specifications

Patch cable type
Copper cable
Contact assignment
crossover
Item number
14030629

General information

Manufacturer
EFB Elektronik
Category
Network cables
Manufacturer no.
K5511.1,5
Release date
19.10.2020
External links
Manufacturer's site (de)

Colour

Cable colour
Yellow

Material

Material
Polyvinyl chloride (PVC)
Material of the isolation
Polyvinyl chloride

Cable properties

Connection A
RJ45
Connection B
RJ45
Cable Application
Network
Cable design
Metal cladding
Plug type
Flat
Cable connection
Connection (m/m)
American Wire Gauge (AWG)
27
Temperature range
0° - 60° C

Patch cable properties

Patch cable type
Copper cable
Patch cable Features
Halogen-free

Twisted-pair cable properties

Cable category
CAT6
Contact assignment
crossover
Shield
S/FTP

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
1

Product dimensions

Length
1.50 m
Depth
1500 mm
