Eaton Overload relay-DILM7-12 contactor,9-12A

Ratings
BrandMore from Eaton
Delivered tomorrow
5 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

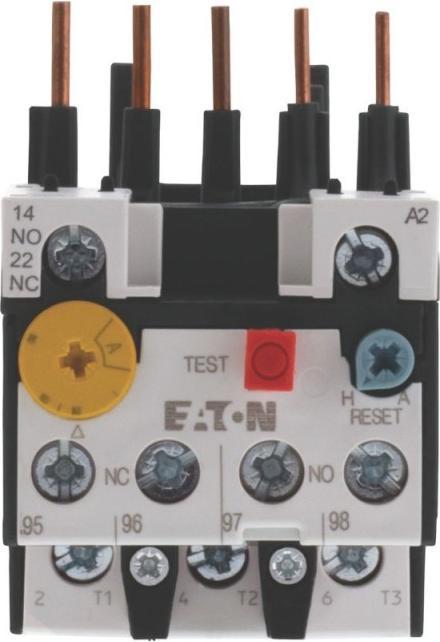

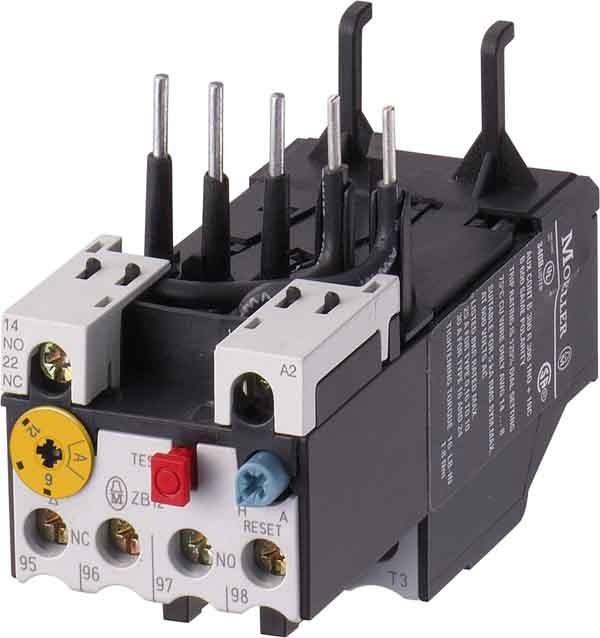

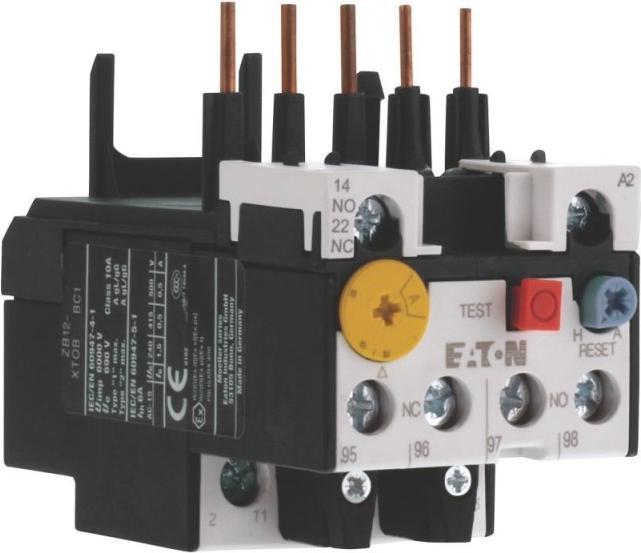

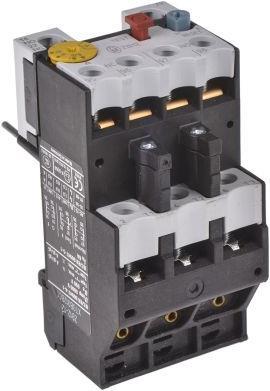

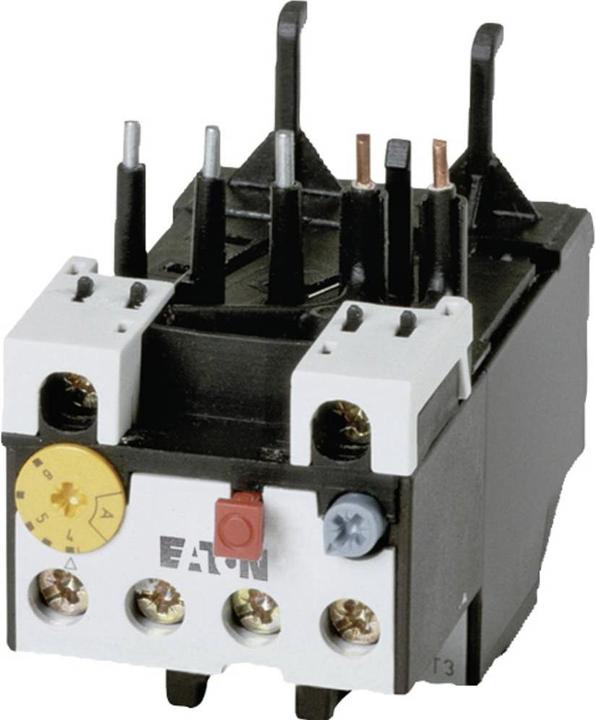

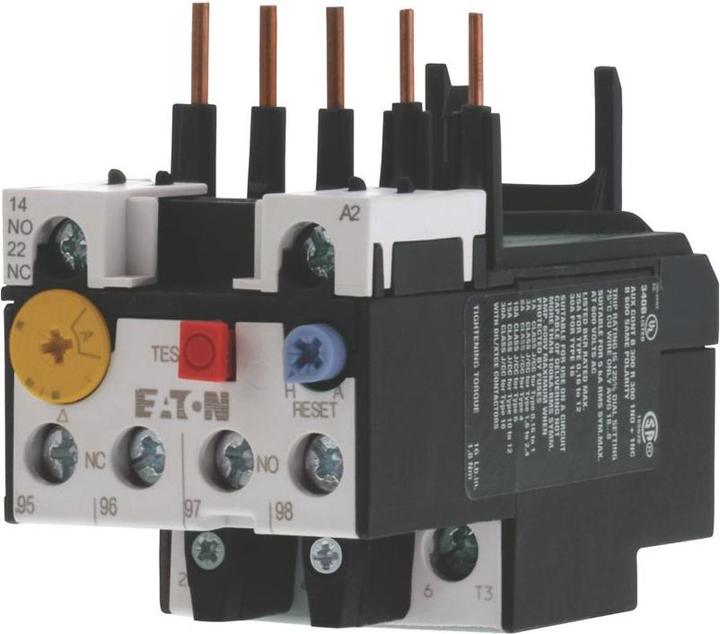

The ZB12-12 overload relay from Eaton is a reliable motor protection relay designed to protect electric motors in various applications. With a current rating of 12 A and a contact current carrying capacity of up to 150 A, it provides an effective solution to prevent overloads. The relay can be directly mounted on the contactor and features phase failure sensitivity according to IEC/EN 60947 and VDE 0660 Part 102 standards. It is equipped with a test/reset button and a reset button for manual and automatic operation, making it easy to use and maintain. The IP20 protection class ensures that the relay can be used in dry indoor environments. The ZB12-12 is compatible with various contactor types, including DILM7, DILM9, and DILM12, offering versatile applications in industrial automation.

  • Direct mounting on the contactor for easy installation
  • Test/reset button and reset button for user-friendliness
  • Free tripping to enhance safety
  • Compatible with multiple contactor types for flexibility
  • Certified according to IEC/EN 60947 and VDE 0660 for high standards.

Key specifications

input voltage
690 V
Scope of delivery
Accessories: Motor protection relay, Auxiliary switch Ö = NC contact: 1 Ö, Auxiliary switch S = NO contact: 1 S, Description: Test/off button, DILM12, DILM15, DILM9, DIULM12, DIULM7, DIULM9, DS7-34 SX012, Free release, Manual/auto reset button, Motor protection relay, Mounting type: Direct mounting, Phase failure sensitivity: IEC/EN 60947, SDAINLM12, SDAINLM16, SDAINLM22, Size: ZB12, suitable for: DILM7, VDE 0660 Part 102
Electric current output
12 A
Relay type
Overload relay
Item number
10155235

General information

Manufacturer
Eaton
Category
Relays
Manufacturer no.
ZB12-12
Release date
27.11.2018
Sales rank in Category Relays
64 of 14660
External links
Manufacturer's site (de)

Relay properties

Relay type
Overload relay
input voltage
690 V
Electric current output
12 A
Switching function
Normally open
Number of openers
1 x
Number of closers
1 x
Manufacturer Type
Zb12-12

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Accessories: Motor protection relay, Auxiliary switch Ö = NC contact: 1 Ö, Auxiliary switch S = NO contact: 1 S, Description: Test/off button, DILM12, DILM15, DILM9, DIULM12, DIULM7, DIULM9, DS7-34 SX012, Free release, Manual/auto reset button, Motor protection relay, Mounting type: Direct mounting, Phase failure sensitivity: IEC/EN 60947, SDAINLM12, SDAINLM16, SDAINLM22, Size: ZB12, suitable for: DILM7, VDE 0660 Part 102

Product dimensions

Length
8 mm
Width
45 mm
Height
50 mm
Weight
145 g

Package dimensions

Length
10.70 cm
Width
7.70 cm
Height
4.50 cm
Weight
159 g
