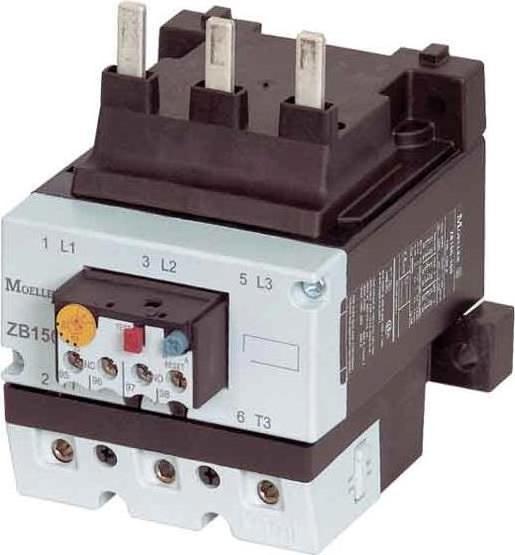

Eaton Motor protection relay 70-100A

The Eaton motor protection relay ZB150-100 is a reliable and powerful device designed to protect electric motors in industrial applications. With an adjustable current range of 70 to 100 amperes, it offers high flexibility and adaptability to various operating conditions. The relay is rated for a maximum operating voltage of up to 1000 volts and allows for direct mounting, simplifying installation. The integrated phase failure sensitivity ensures that the motor is immediately shut down in the event of a phase failure to prevent damage. The device features a reset function that can be activated both manually and automatically, making operation easier. With an IP00 protection class, the relay is suitable for use in protected environments and complies with relevant standards and regulations, including IEC/EN 60947 and VDE 0660. The motor protection relay is an ideal choice for applications that require reliable monitoring and protection of motors.

• Adjustable current range from 70 to 100 A
• Maximum operating voltage of 1000 V
• Integrated phase failure sensitivity
• Reset function manual and automatic
• Complies with standards such as IEC/EN 60947 and VDE 0660.
