Eaton 9SX3000 Uninterruptible Power Supply (UPS) Double Conversion (Online) 3 kVA
2700 VA, 2700 W, Online double converter UPSfree shipping

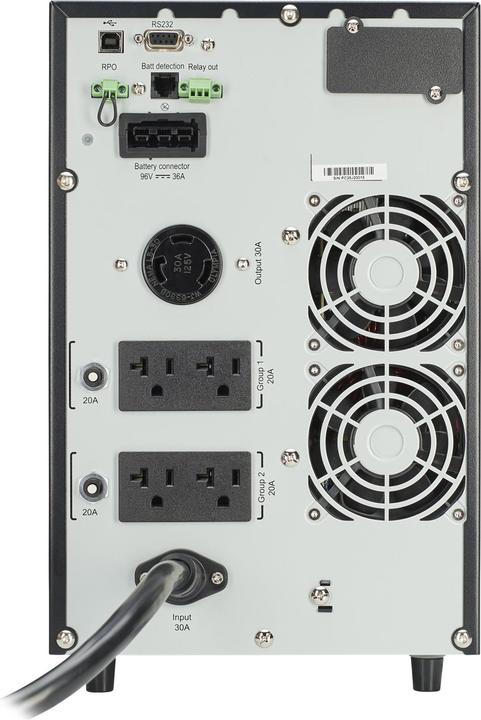

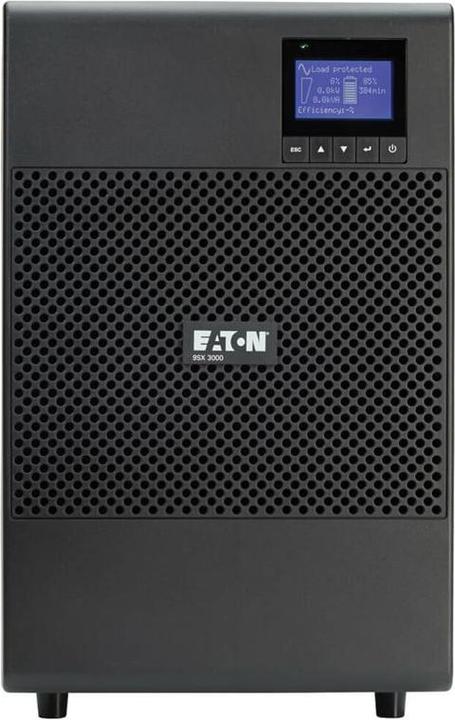

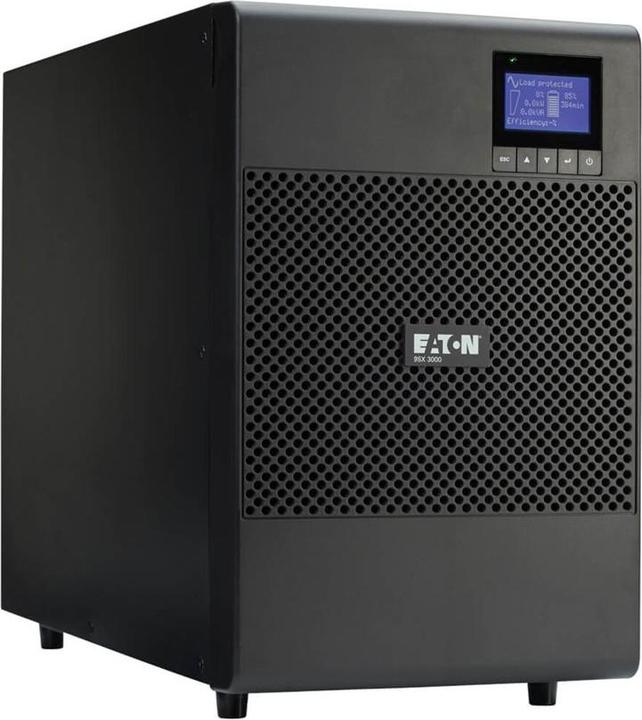

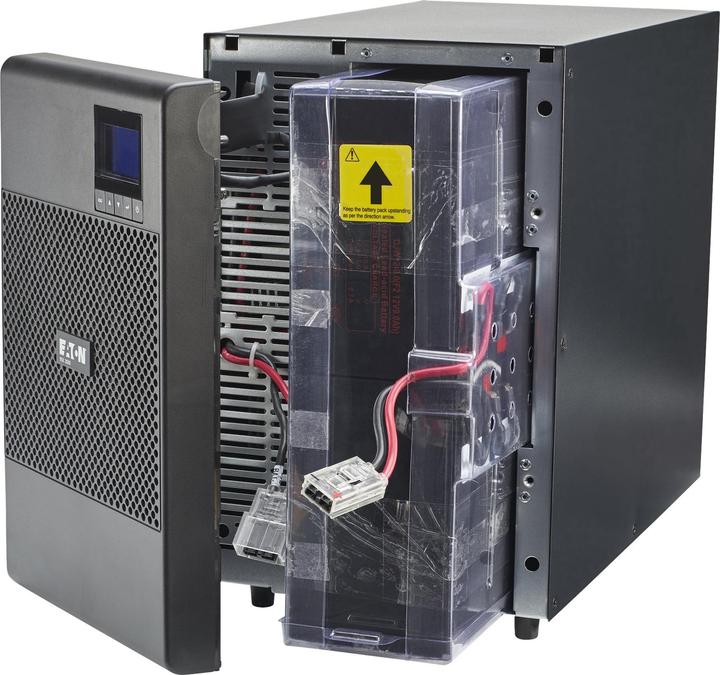

Eaton 9SX 3000 Tower 120VAC version. The Eaton 9SX protects critical applications from unpredictable power problems such as computer failure, data loss, or work interruption by providing clean uninterruptible power. A graphical, multi-language display offers extensive, easy configuration options. The Eaton 9SX increases battery life through active battery management (ABM). It features Class 1 (VFI-SS-111) online double conversion technology, a power factor of 0.9, RS232 and USB interfaces, one relay output, and a terminal block for remote power off/EPO. It also includes HotSwap batteries and an MS slot for communication cards (network, relay, or ModBus) with multiple load segments. Included in delivery: UPS, cable set, software.
Operating time at full load | 6 min |
Model | Desktop |
Scope of application | Server room |
Plug type | NEMA L5-30P |
Item number | 21174581 |
UPS type | Online double converter UPS |
Power output | 2700 W |
Output power capacity | 2700 VA |
Model | Desktop |
shaft type | Sine wave |
UPS protection functions | Overvoltage protection |
Scope of application | Server room |
Plug type | NEMA L5-30P |
USB ports | USB-A |
Data ports | RS-232 (1x) |
Electrical safety | Due to the high power, this device requires a socket outlet fused with 16 amperes (type 23). If no suitable socket is available, the conversion must be carried out by an authorised installer. |
input voltage | 100 - 138 V |
output voltage | 120 V |
Input frequency | 40 / 70 Hz |
Output frequency | 50 - 60 Hz |
Efficiency full load | 89 % |
Efficiency battery operation | 89 % |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0 - 95% |
Max. noise level | 45 dB |
Battery category | Industry battery |
Battery | Rechargeable battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 4 x |
Battery weight per cell | 800 g |
Voltage | 120 V |
Operating time at full load | 6 min |
Operating time at half load | 15 min |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |

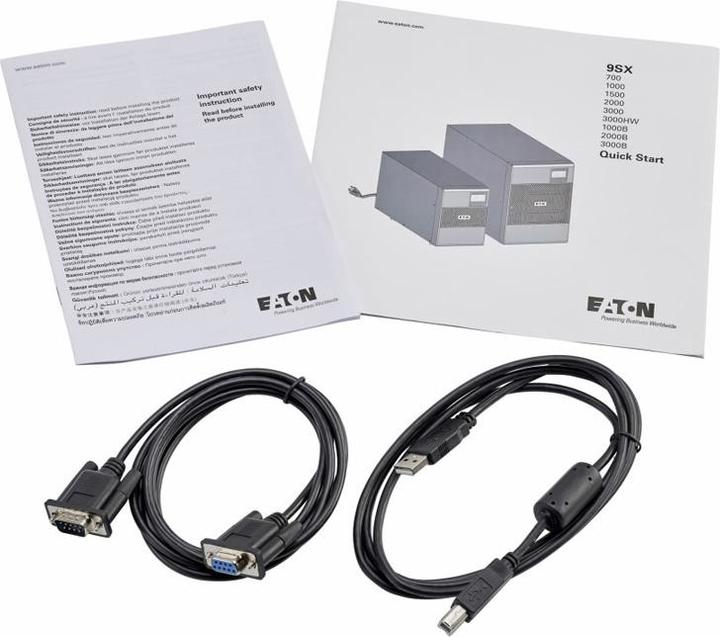

Scope of delivery | RS-232 Cable |
Items per sales unit | 1 x |
Height | 346 mm |
Weight | 33.40 kg |
Width | 214 mm |
Length | 412 mm |
Length | 57 cm |
Width | 32 cm |
Height | 49.40 cm |
Weight | 38.20 kg |
