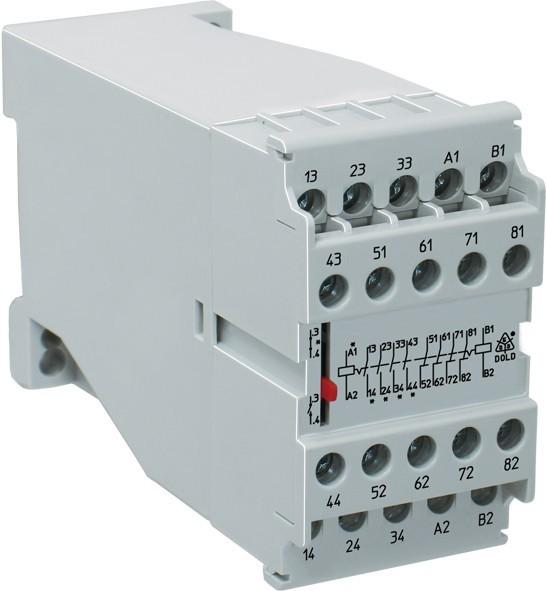

Dold Tilt relay

Ratings
BrandMore from Dold
Delivered between 26.2.2026 and 12.3.2026
free shipping

input voltage2

Product details

Dold&Söhne Tipping Relay AD8851.14 230V

Manufacturer: Dold&Söhne
Designation: Tipping Relay AC 50/60Hz
Type: AD8851.14 230V
Electrical connection type: Screw connection
With removable terminals: no
Rated current: 8 A
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Voltage type for actuation: AC
Drive, polarity: unipolar
Switching behavior of the drive: bistable
Number of contacts as changeover: 4
Complete device with base: yes
Protection class (IP): IP20
Width: 45 mm
Height: 77 mm
Depth: 127 mm

Dold&Söhne Tipping Relay AD8851.14 230V: additional details
The relay is actuated by pulse or continuous excitation of coils A1-A2 or B1-B2. During simultaneous excitation of both systems, the locking is released, and the contact position corresponds to the excitation of coil A1-A2. All contacts are located on the same magnetic system, which is connected to A1, A2. This ensures that no undefined contact states occur during simultaneous excitation of both systems, according to IEC/EN 61 810-1 with manual operation and contact position indication via a toggle switch.

Key specifications

Scope of delivery
1 piece
Output current type
AC
Electric current output
8 A
input voltage
230 V
Number of poles
4 x
Item number
36788147

General information

Manufacturer
Dold
Category
Relays
Manufacturer no.
0016370
Release date
28.6.2023

Relay properties

input voltage
230 V
Electric current output
8 A
Output current type
AC
Switching function
Changer
Number of closers
4 x
Number of poles
4 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
127 mm
Width
45 mm
Height
77 mm
