Doepke DOEP EDS 16 with light sensor LF1 Recessed dimmer switch ED

Dusk switches turn on electrical consumers when it gets dark and turn off again when it becomes light. Devices of this series have an external sensor. They can be installed in the distribution box and adjusted from there, regardless of the lighting location. The operating and control voltage of the devices is 230 V AC. The EDS 16 has an adjustable turn-on threshold and a fixed turn-off threshold. A delay time for turning on and off ensures that these dusk switches do not react to short-term changes in light (car headlights, flashes).

Features:

• Energy savings through automatic lighting control
• On/Off delay filters out short-term brightness fluctuations
• Low self-consumption
• Easy installation and adjustment
• Adjustable turn-on threshold from 2 to 1000 Lux
• Turn-off threshold preset by internal factor of 1.5
• Potential-free switching contact (16 A)
• On/Relay status indicated by LED
• Light sensor LF 1 for outdoor installation (IP 44)
• Cable length to LF 1 up to 100 m

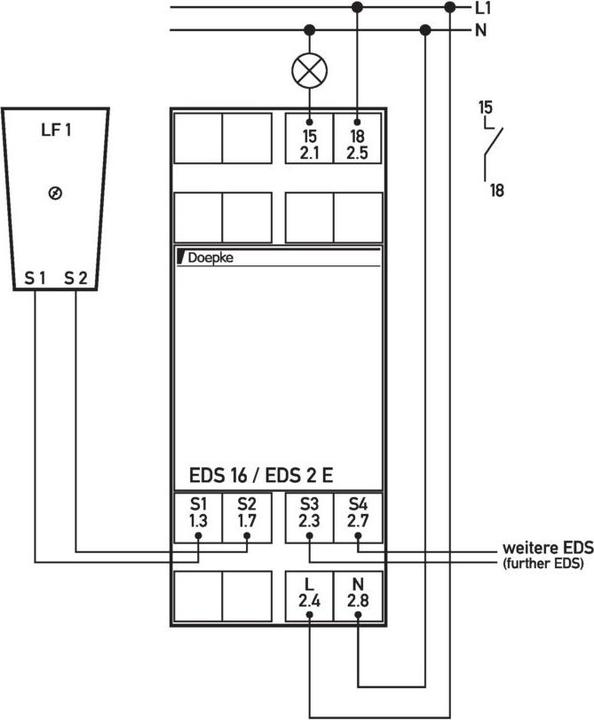

• Multiple dusk switches can use one LF 1
• Mounting type: Dusk switch: Quick mounting on a mounting rail
• Installation position arbitrary
• Light sensor LF 1: Wall mounting, preferably facing north or east

Applications: Control of lighting for streets, buildings, and industrial areas. Notes: Depending on the order number, the dusk switch is supplied with or without a light sensor.
