Product details

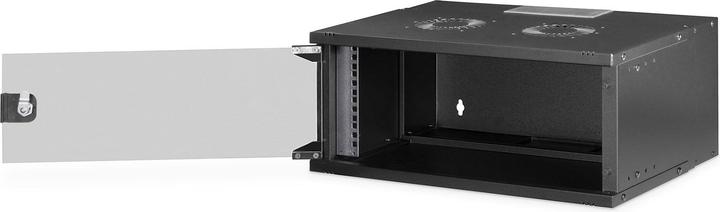

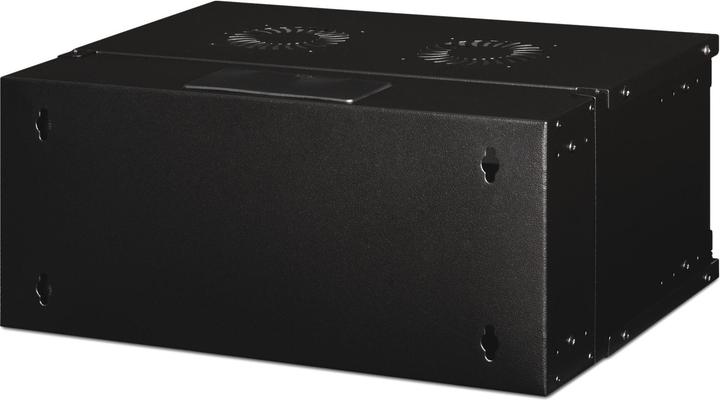

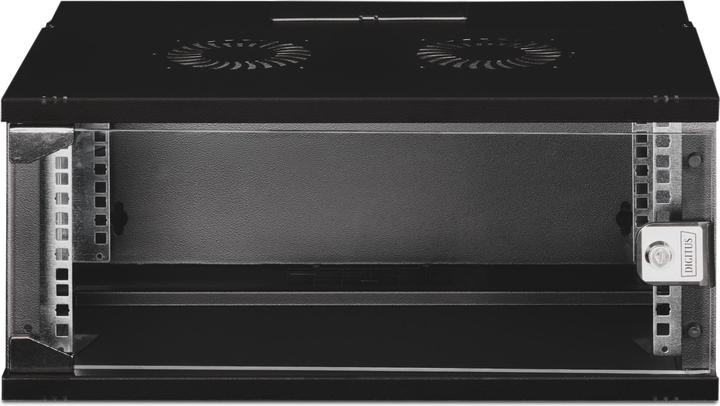

Whether in private settings, offices, or in sub-distributions with limited space: With the compact 483 mm (19") solutions from the SOHO PRO series, you can install your network wherever you want. The wall-mounted enclosures are available in four height units (4HE, 7HE, 9HE, 12HE) and come equipped with a full glass door as well as cable entry at the top and bottom. A pair of galvanized profile rails, labeled with readable height units, are installed inside and can be adjusted in depth. Each cabinet is a robust steel construction made from up to 1.5 mm thick steel sheet. The finish is done through electrostatic powder coating in standard colors of gray (RAL 7035) and black (RAL 9005). A door hinge change can be made. The network cabinets are delivered unassembled in an optimized flat pack. Assembly takes just a few steps and is made easy with the included step-by-step instructions.
Type | Cabinet |
Usable installation depth | 327 mm |
Protection type (IP code) | IP20 |

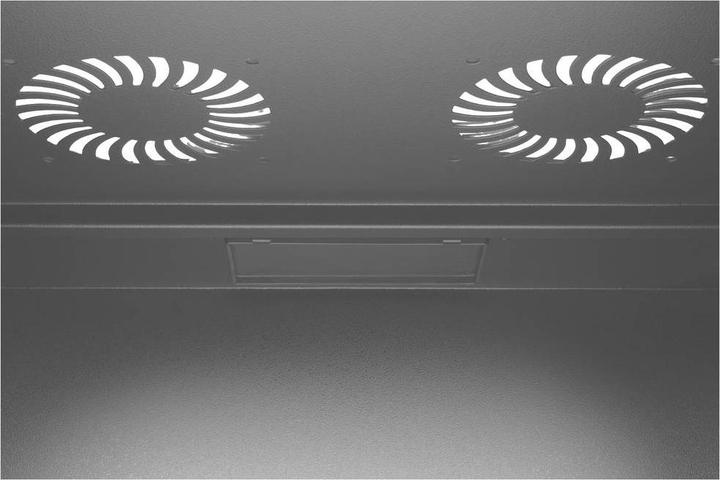

Ventilation | Passive |
Server cabinet features | Door, Lockable, Safety glass |
Item number | 40183108 |
Manufacturer | Digitus |
Category | Server cabinets |
Manufacturer no. | DN-49201 |
Release date | 22.11.2023 |
Sales rank in Category Server cabinets | 84 of 3588 |
External links |
Colour | Black |
Exact colour description | Black, RAL 9005 |
Material group | Metal |
Material | Steel |
Type | Cabinet |
Rack size | 19 inch rack |
Form factor size | 4 RU |
Usable installation depth | 327 mm |
Max. weight | 60 kg |
Protection type (IP code) | IP20 |
Wall thickness | 1.50 mm |
Ventilation | Passive |
Server cabinet features | Door, Lockable, Safety glass |
Country of origin | China |
CO₂ emissions | 61.12 kg |
Climate contribution | CHF 1.45 |
Scope of delivery | 1x QIG, 2x keys, Installation set (screws, cage nuts, washers) |
Height | 237 mm |
Width | 540 mm |
Length | 400 mm |
Weight | 7.13 kg |
Length | 58 cm |
Width | 31 cm |
Height | 17.50 cm |
Weight | 7.88 kg |
