Di-Soric Proximity switch

Switch
Ratings
BrandMore from Di-Soric
Delivered between Tue, 28.4. and Thu, 7.5.
free shipping

Product details

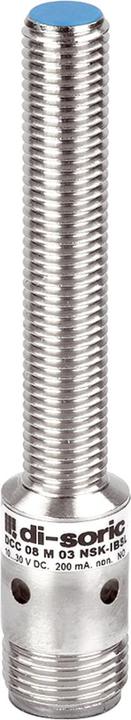

The inductive proximity switch from Di-Soric is a highly advanced electronic module designed for precise and reliable applications in automation technology. With a switching distance of 3 mm and an operating voltage of 10 to 30 V DC, this sensor provides an effective solution for object detection without direct contact. The robust design, featuring a brass housing and an IP 67 protection rating, ensures high resistance to environmental influences, making it ideal for use in demanding industrial environments. The sensor is equipped with a digital switching output (pnp) that allows for a maximum switching current of 200 mA. Its compact size (M8 x 1) and easy installation via a 4-pin M12 connector make it a flexible choice for various applications.

  • Inductive operating principle for contactless object detection
  • Extremely high switching distance of 3 mm
  • Robust brass housing with IP 67 protection rating
  • Digital switching output (pnp) with 200 mA
  • Operating temperature range of -25 to +70 °C.

Key specifications

Scope of delivery
200 mA, 4-pole, A-coded, Inductive proximity sensor Functional principle: Inductive Installation type: Flush Switching distance: 3 mm Operating voltage: 10 30 V DC Switching output: pnp, M12

General information

Item number
49480235
Manufacturer
Di-Soric
Category
Electronics modules
Manufacturer no.
209875
Release date
16.9.2024

Electronic module properties

Module type
Switch

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
0.82 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
200 mA, 4-pole, A-coded, Inductive proximity sensor Functional principle: Inductive Installation type: Flush Switching distance: 3 mm Operating voltage: 10 30 V DC Switching output: pnp, M12

Product dimensions

Length
66 mm
