Di-Soric Proximity switch

Switch
Ratings
BrandMore from Di-Soric
Delivered between Tue, 28.4. and Thu, 7.5.
free shipping

Product details

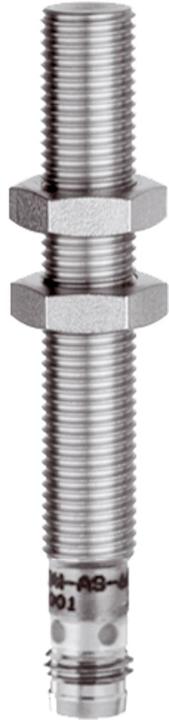

The inductive proximity switch from Di-Soric is a highly advanced electronic module designed for precise and reliable applications in various industrial environments. With a switching distance of 3 mm and an operating voltage of 10 to 30 V DC, this sensor offers digital evaluation and a pnp switching output with a maximum current of 200 mA. The robust stainless steel construction and the closed all-steel housing ensure a high pressure resistance of under 100 bar, making it ideal for demanding conditions. The proximity switch is suitable for a temperature range of -25 to +70 °C and meets the protection class IP 67, which protects it from dust and water. The connection is made via a 3-pin M8 connector that is A-coded, facilitating integration into existing systems.

  • Inductive operating principle for precise detection
  • Pressure resistant up to < 100 bar
  • Robust all-steel housing for high durability
  • Operating temperature range of -25 to +70 °C
  • Protection class IP 67 for optimal protection against environmental influences.

Key specifications

Scope of delivery
200 mA, 3-pole, A-coded, All-steel sleeve closed, Extremely high switching distance, Flameproof Housing material: Stainless steel Size: M8 x 1 Housing length: 60 mm Ambient temperature operation: -25 +70 °C Protection class: IP 67 Connection: Plug, Inductive proximity sensor Functional principle: Inductive Installation type: Flush Switching distance: 3 mm Operating voltage: 10 30 V DC Switching output: pnp, M8, NO Evaluation: digital Design: thread Special features: < 100 bar

General information

Item number
44570412
Manufacturer
Di-Soric
Category
Electronics modules
Manufacturer no.
200033
Release date
28.3.2024

Electronic module properties

Module type
Switch

Origin

Country of origin
Sri Lanka

Voluntary climate contribution

CO₂ emissions
0.82 kg
Climate contribution
CHF 0.11

Scope of delivery

Scope of delivery
200 mA, 3-pole, A-coded, All-steel sleeve closed, Extremely high switching distance, Flameproof Housing material: Stainless steel Size: M8 x 1 Housing length: 60 mm Ambient temperature operation: -25 +70 °C Protection class: IP 67 Connection: Plug, Inductive proximity sensor Functional principle: Inductive Installation type: Flush Switching distance: 3 mm Operating voltage: 10 30 V DC Switching output: pnp, M8, NO Evaluation: digital Design: thread Special features: < 100 bar

Product dimensions

Length
60 mm
