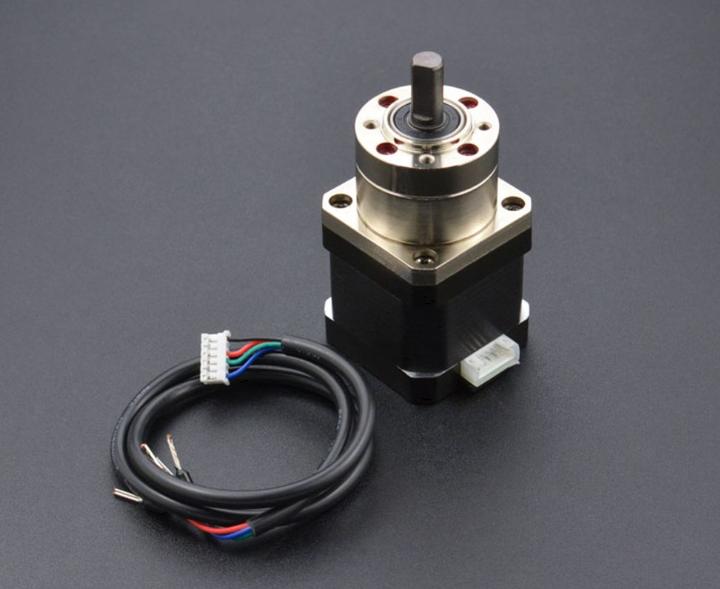

DFRobot Stepper motor Nema 17 42x42mm 1.75Nm with planetary gearbox

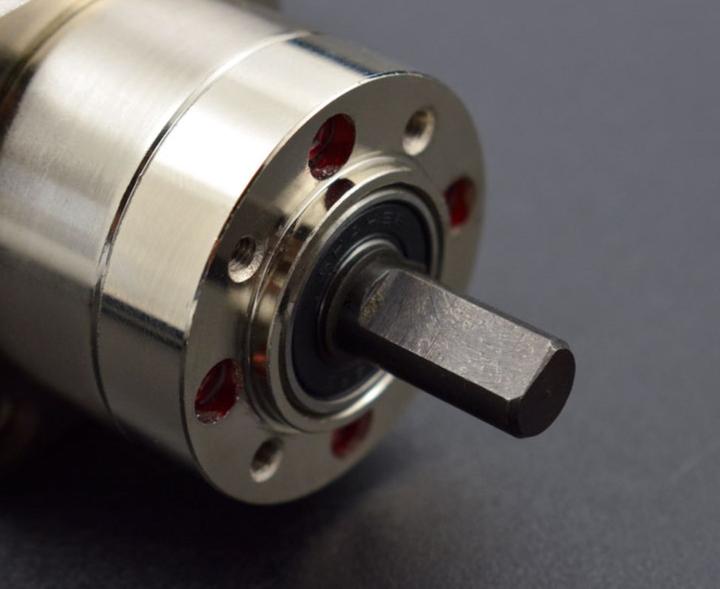

This bipolar stepper motor with planetary gearbox (gear ratio: 5.18:1) features a D-type output shaft with a standard diameter of 8 mm and has a step angle of 1.8° (200 steps/revolution). Each phase draws 1.0 A at 3.4 V and provides a holding torque of 18 kg/cm or 176 Ncm. The motor can be easily mounted using the four M3 threaded holes. For controlling the stepper motor with Arduino, I recommend using a stepper motor driver such as the DRV8825 or even better, the TB6600.

Application examples:

• Printers
• 3D printers
• CNC
• Robotics
• Linear drives

Technical details:

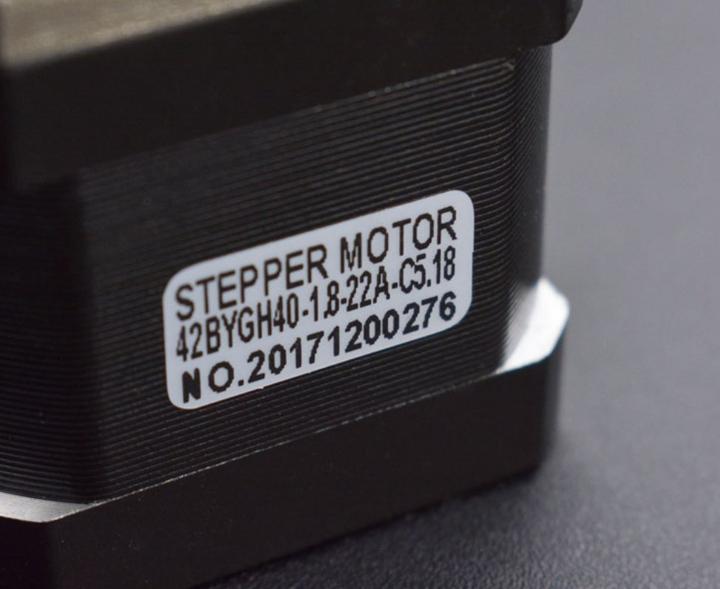

• Model No.: 42BYGH40-18-22A-C5.18
• Step angle: 1.8°
• 2 phases
• Voltage: 3.4 V
• Current: 1.0 A
• Resistance: 1.7 ± 10 % Ohm/phase
• Inductance: 4.3 ± 20 % mH/phase
• Holding torque: 3600 g.cm
• Detent torque: 400 g.cm
• Insulation class: B
• Lifespan: 6000 hours
• Gear ratio: 5.18:1
• Torque with gearbox holding: 18 kg-cm / 176 Ncm
• Mounting: 4 x M3
• Dimensions: 42 × 42 × 40 mm
• Weight: 400 g

Delivery includes:
1x Nema 17 stepper motor 42x42 mm 1.75 Nm with planetary gearbox.
