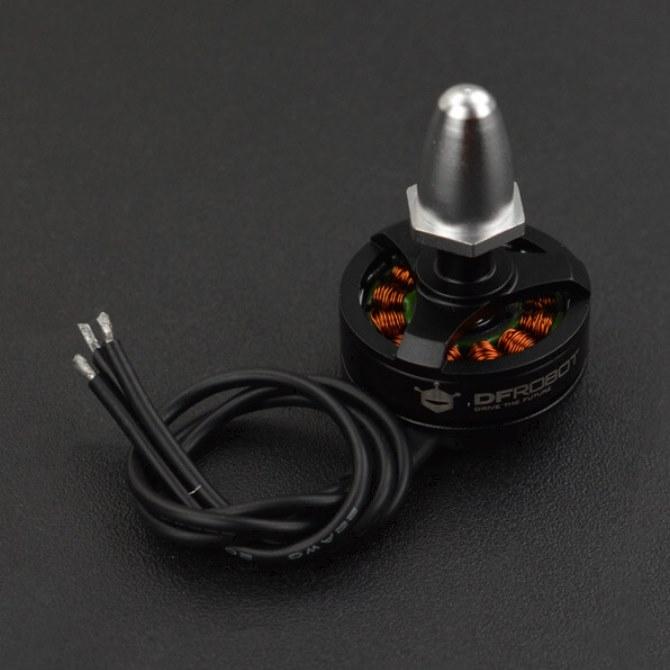

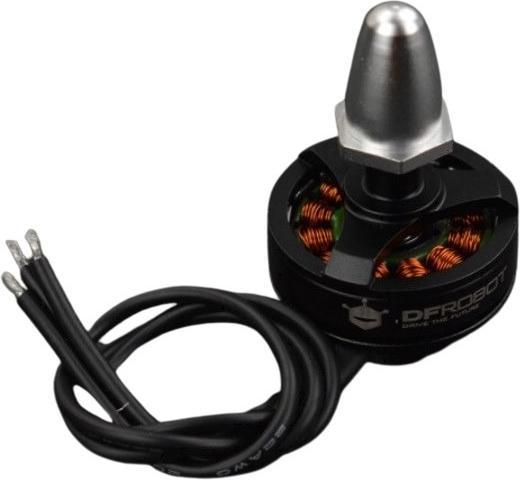

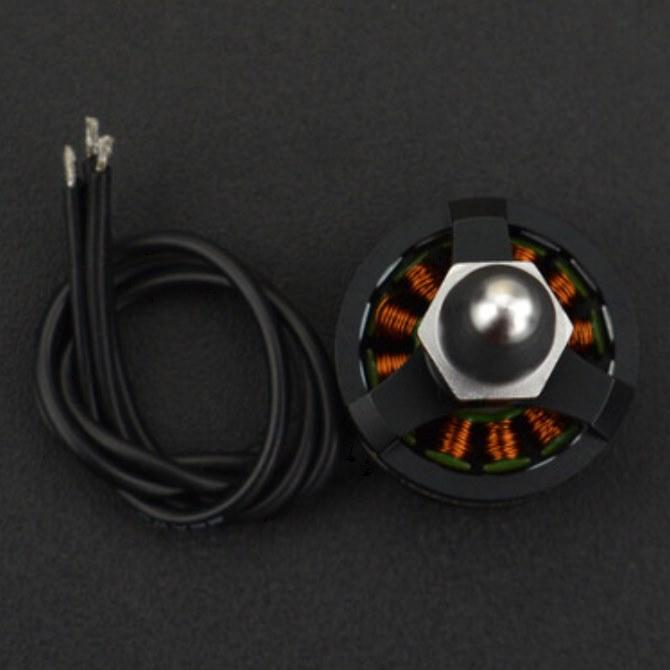

DFRobot MTO1804 Brushless DC Motor CW

Ratings
Delivered between Tue, 3.6. and Wed, 4.6.
8 items in stock at third-party supplier
Supplied by

Product details

This brushless DC motor is designed for multi-rotor wings and is also perfect for drones or other Arduino craft projects. The brushless motor can deliver large torques at low speeds and allows full power operation at any speed. It has high efficiency, strong overload capability, good regenerative braking, small size, high power density, and simple drive control.

Technical details:
Motor:

  • KV value: 2480
  • Stator diameter: 18mm
  • Stator length: 4mm
  • Shaft diameter: M5 (0.8mm)
  • Motor size (outer diameter): 23mm
  • Motor weight: 16g
  • Power supply: 2-3 lithium batteries
  • Maximum continuous current: 5A
  • Maximum continuous power: 55.5W
  • Bearing model: NSK
  • Winding: Heat resistant up to 220°C

Driver:

  • Continuous current: 20A
  • Peak current: 25A
  • BEC: No BEC
  • Input voltage: 2-4 lithium batteries
  • Weight: 7.5g
  • Dimension: 27 x 12 x 5.2mm
  • Total weight: 30g

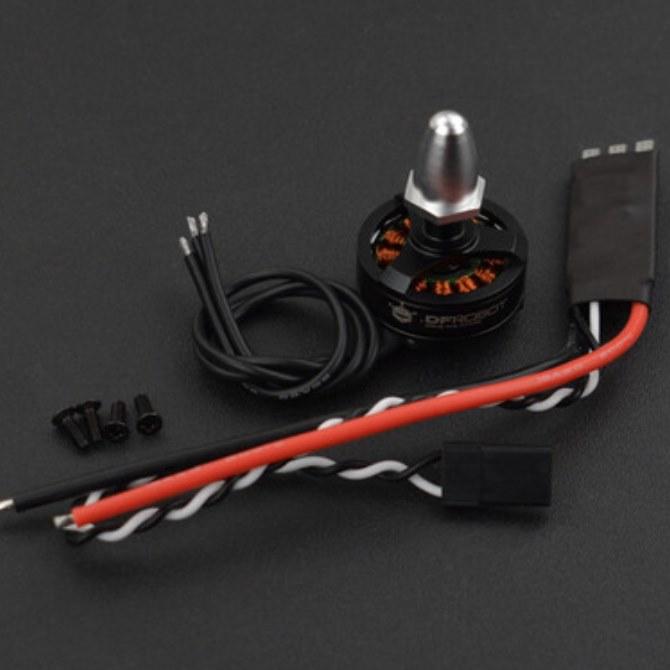

Included in delivery:

  • 1x MTO1804 Brushless DC Motor (CW)
  • 1x motor driver
  • 4x mounting screws.

Key specifications

Item number
24881745

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
24.3.2023

Power supply

Power supply
Battery operated

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x motor driver, 1x MTO1804 brushless DC motor (CW), 4x fastening screws
