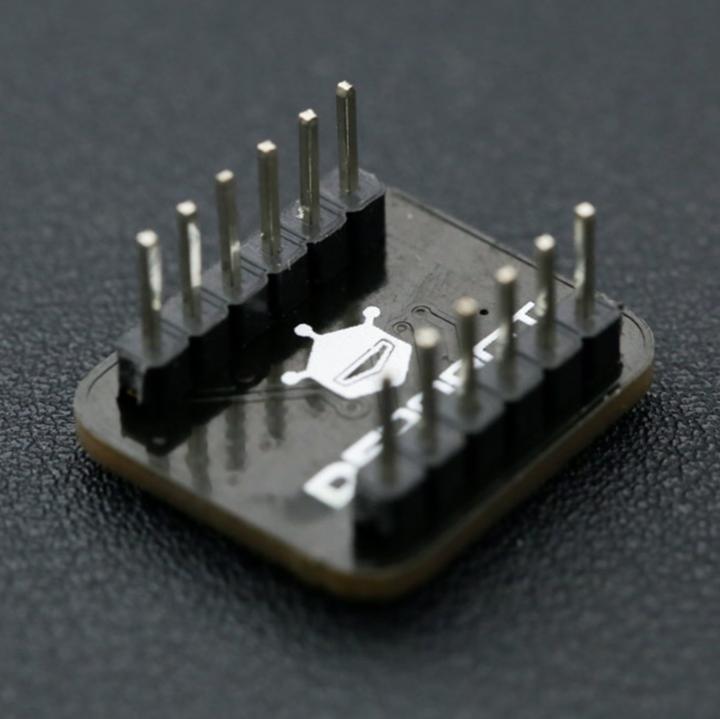

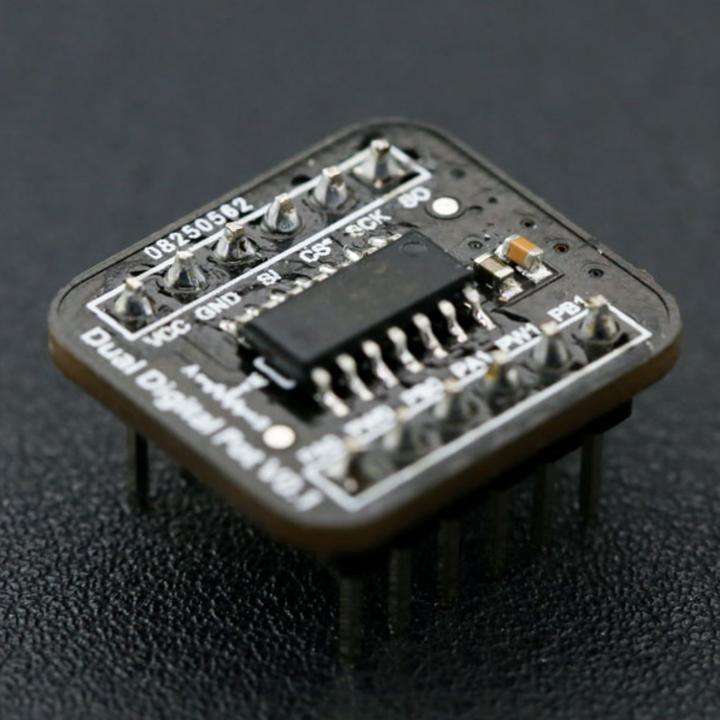

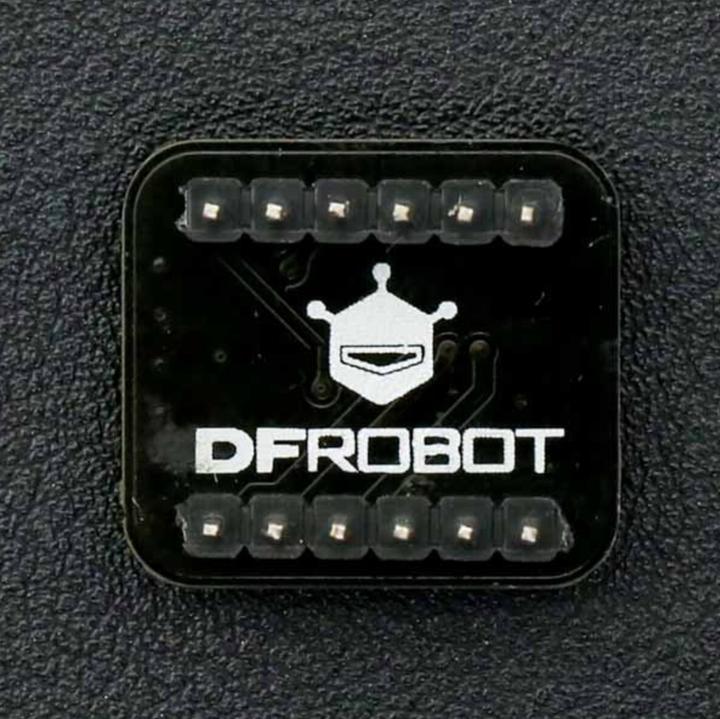

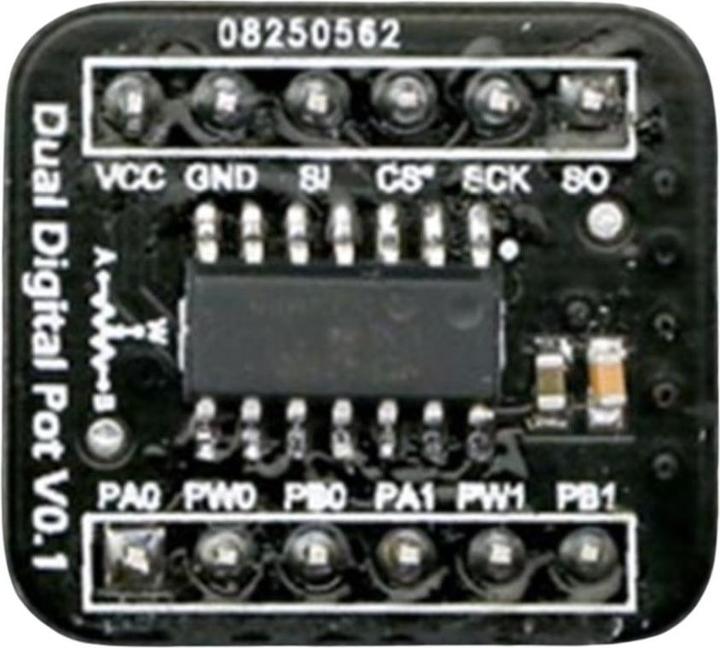

DFRobot MCP42100 Dual Digital SPI Potentiometer Module 100kOhm

The MCP42100 dual digital SPI potentiometer module is a highly flexible and reliable tool for your projects. It is a mixed-signal IC that can dynamically change the internal resistances via a microcontroller like Arduino. Compared to traditional mechanical potentiometers, this digital potentiometer offers advantages such as programmable control, small size, and high reliability. It is ideal for applications such as LED DC dimming, linear stable voltage sources, oscillators, low-pass filters, and differential amplifiers.

Note: The resistance terminals A, B, and W have no polarity restrictions relative to each other. The current through terminals A, B, and W should not exceed ±1mA. The voltages at terminals A, B, and W should be in the range of 0 - VCC.

Features:

• Low power consumption and small dimensions
• Compatible with 3.3V or 5.0V operating voltage
• Each potentiometer has 256 steps with a resistance of 100KΩ
• Equipped with SPI interface for easy communication

Application examples:

• Volume or tone control in audio devices
• LED DC dimmers and contrast control
• Programmable voltage sources, filters, and differential amplifiers

Technical specifications:

• Manufacturer: DFRobot
• Manufacturer SKU: DFR0520
• Operating voltage: 2.7–5.5V DC
• Static operating current: < 1 μA
• Potentiometer value: 100 KΩ
• Resolution: 8 Bit, 256 steps for each potentiometer
• Number of potentiometers: 2
• Interface: SPI
• Operating temperature: -40℃–85℃
• Dimensions: 20 x 18 x 12mm
• Weight: 13.3g

Delivery includes:
1x MCP42100 dual digital SPI potentiometer module 100kOhm
1x 30cm 5pin Male-Male Dupont cable.
