DFRobot Gravity TCS34725 RGB colour sensor

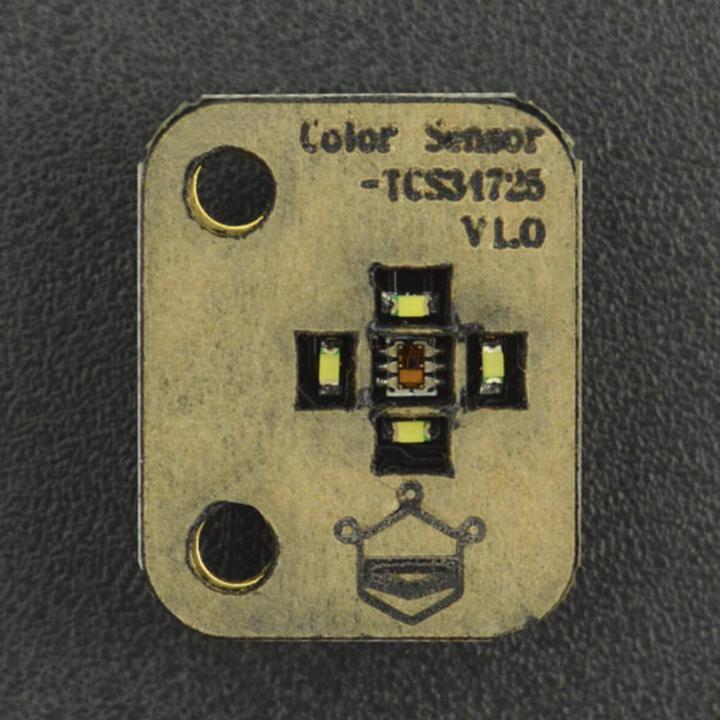

The Gravity TCS34725 RGB color sensor is a highly advanced light sensor module based on the TCS34725 RGB sensor chip and equipped with four white LEDs. This sensor can detect and measure an almost unlimited range of visible colors. With its high sensitivity and wide dynamic range, it is ideal for color detection tasks under various lighting conditions. The sensor features an IR blocking filter and can recognize colors in its environment to provide digital values for red, green, and blue (RGB). These values allow for the reproduction of the detected colors. The TCS34725 operates via the I2C bus of your Arduino and offers both PH2.0-4P and XH2.54 (breadboard-compatible) interfaces to support a variety of application scenarios.

Features:

• High sensitivity and wide dynamic range
• Includes IR blocking filter for improved color detection
• Four ultra-bright LEDs for operation without external light sources
• Easy connection via the I2C bus of the Arduino

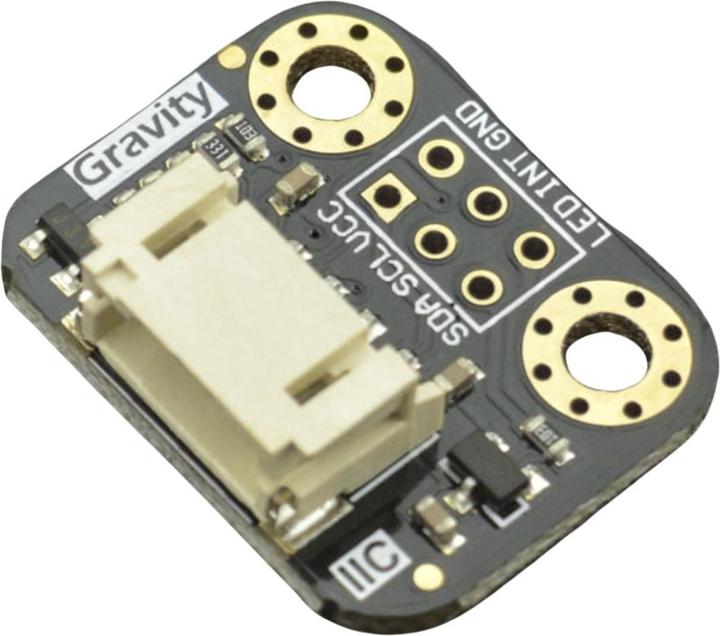

• Versatile interfaces: PH2.0-4P and XH2.54 (breadboard-compatible)

Application examples:

• Color detection in environments with varying lighting conditions
• Reproduction of detected colors in digital projects
• Use in educational and hobby projects for color detection and analysis

Technical specifications:

• Manufacturer: DFRobot
• Manufacturer SKU: SEN0212
• Operating voltage: 3.3-5V
• Operating current: 65 uA
• Detection range: 3 - 10 mm
• Clock frequency: 0 - 400 KHz
• Interface: I2C
• Temperature range: -30℃ - +70℃
• Dimensions: 18.5 x 23 x 9.3mm
• Weight: 13.2g

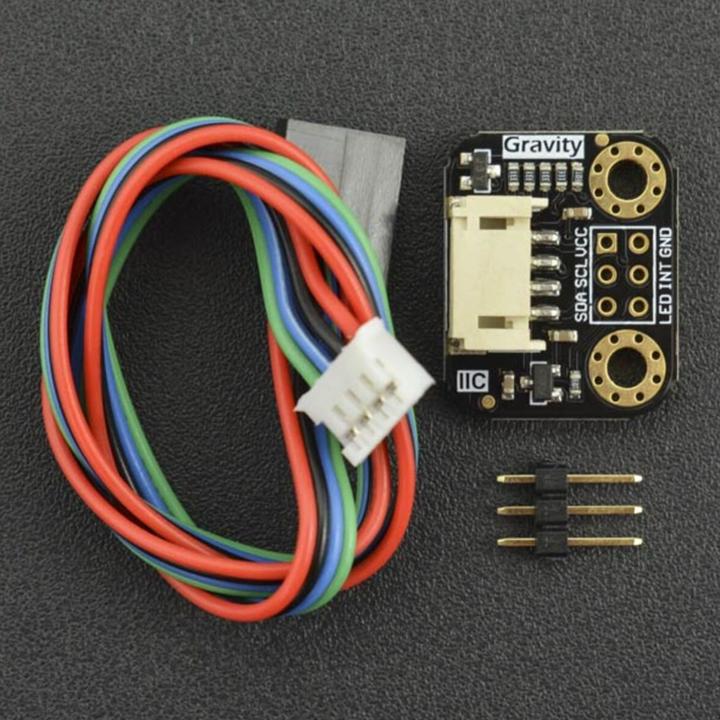

Delivery contents:

• 1x Gravity TCS34725 RGB color sensor
• 1x Gravity IIC/UART sensor cable
• 2x XH2.54-3P pin headers.
