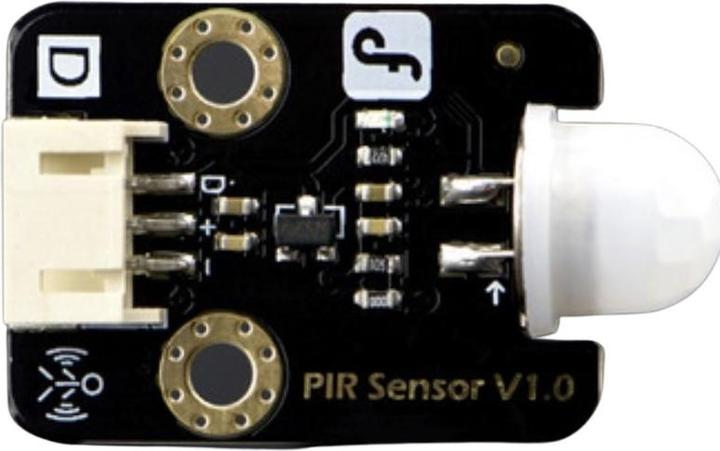

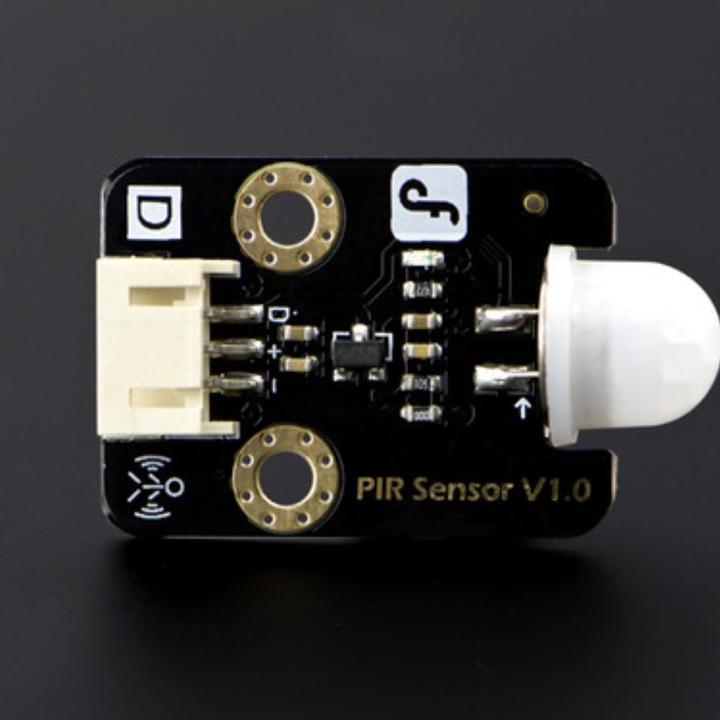

DFRobot Gravity PIR Motion Sensor for Arduino

This is a PIR (Passive Infrared Motion) sensor designed for use with Arduino and Raspberry Pi. It can detect motion and is commonly used to detect if a person is in the sensor area. They are small, inexpensive, low-power, easy to use and do not wear out. Unlike conventional motion sensors, this product is reliable and efficient thanks to its simple circuit diagram. The sensor is plug-and-play. The Arduino IO Expansion Shield is the best solution for connecting this sound sensor to your Arduino. As this sensor can work with 3.3V, it is compatible with Raspberry Pi, Intel Edison, Joule and Curie.

Technical details:
Manufacturer: DFrobot
Manufacturer SKU: SEN0171
Input voltage: 3.3V to 5V, maximum 6V
Current: 15uA
Operating temperature: -20 to 85 °C
Output voltage: High 3V, Low 0V
Output delay time (High Level): Approximately 2.3 to 3 seconds
Detection angle: 100 °
Detection range: 7 metres
Output indicator LED (when output is HIGH, it lights up)
Output limiting current: 100mA
Connector plug: PH2.0 3pin
Dimension: 36 x 12 x 22mm
Weight: 13g

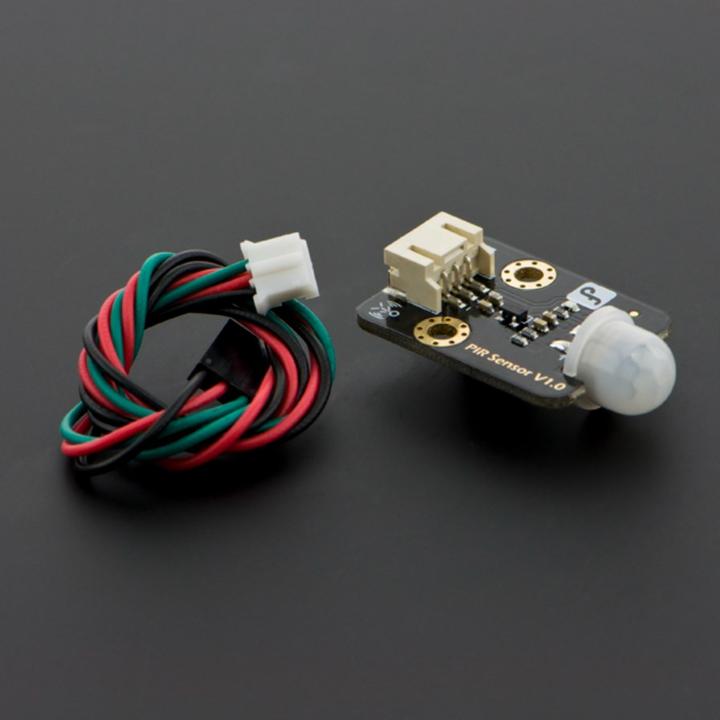

Scope of delivery:
1x Gravity PIR Motion Sensor for Arduino.
1x Gravity 3pin digital sensor cable PH2.0 to XH2.54.
