DFRobot Gravity Digital 5A Relay Module

Ratings
Delivered between Mon, 16.6. and Tue, 17.6.
More than 10 items in stock at third-party supplier
Supplied by

Product details

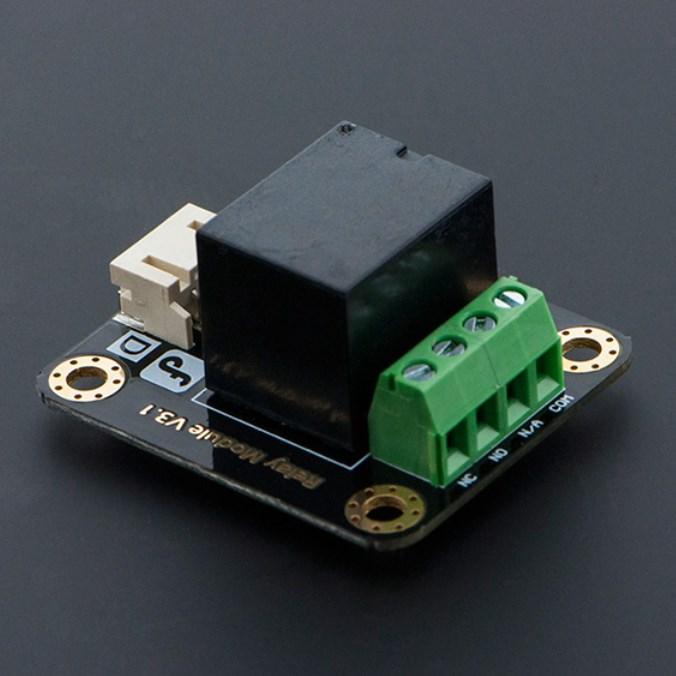

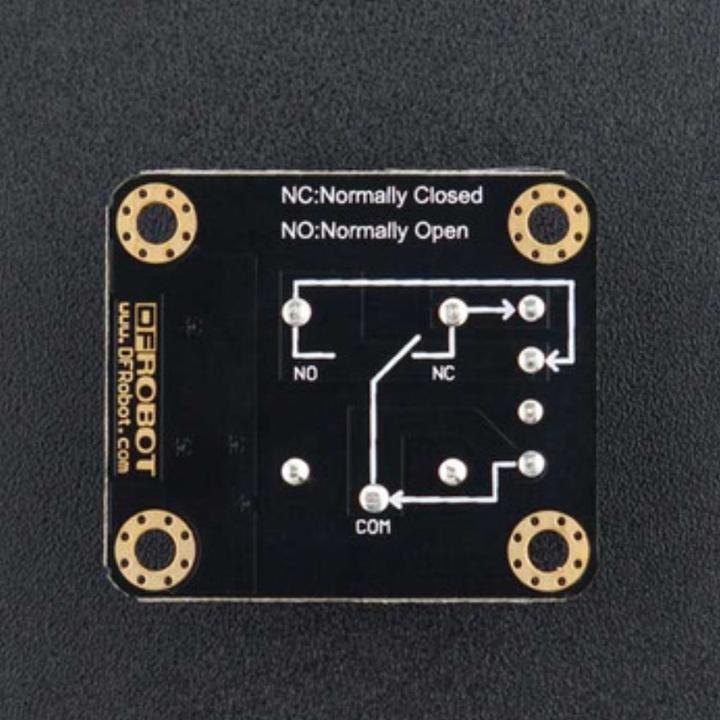

The DFRobot relay module is a standard relay controlled by a microcontroller to switch larger loads such as pumps, solenoid valves, lamps, or motors. The relay features a status LED to visually indicate its switching state (on or off). It is controlled via the digital IO port and can operate with 3.3 V or 5 V microcontrollers, making it suitable for use with the Raspberry Pi or ESP. For safety reasons, you should only operate the relay up to 30 V, as the back of the PCB is not isolated and can be dangerous when mishandled with 230 V.

Technical Details:
Number of Channels: 1
Rated Through Current: 10 A (NO), 5 A (NC)
Maximum Switching Voltage: 150 VAC, 24 VDC
Interface: Digital
Control Signal: TTL Level
Switching Power (resistive load): 10 A, 250 VAC / 24 VDC
Max. Switching Voltage: 250 VAC / 30 VDC
Dimensions: 38 x 33 x 20 mm
Weight: 25 g

Package Includes:
1x Gravity MOSFET Driver Module 10 A
1x Gravity 3-Pin Digital Sensor Cable PH2.0 to XH2.54.

Key specifications

Development board type
Kit
Item number
24919849

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
28.3.2023

Target group

Target group
Adults

Development board properties

Development board type
Kit

Power supply

Operating voltage
150 V

Connections

Number of I/O
1

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x Gravity 3pin digital sensor cable PH2.0 to XH2.54, 1x Gravity MOSFET driver module 10A

Product dimensions

Length
38 mm
Width
33 mm
Height
20 mm
Weight
25 g
