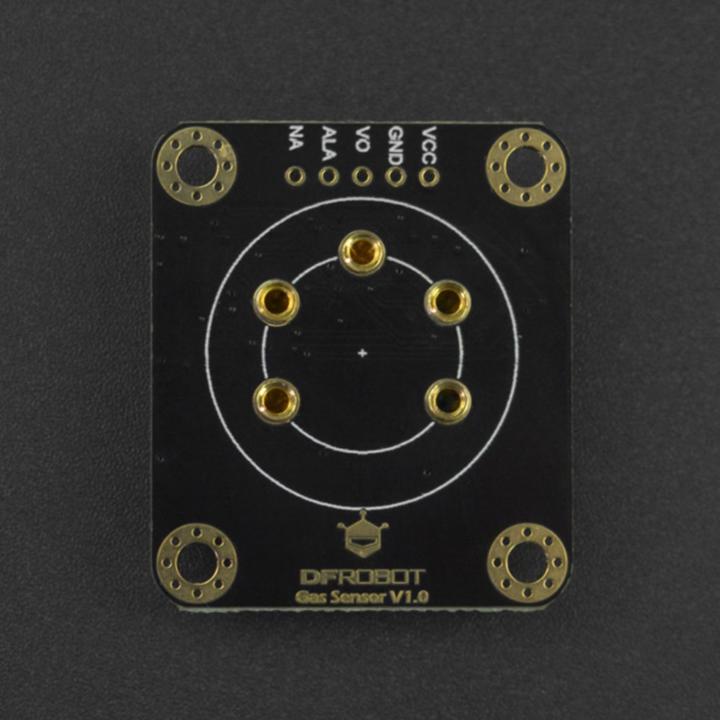

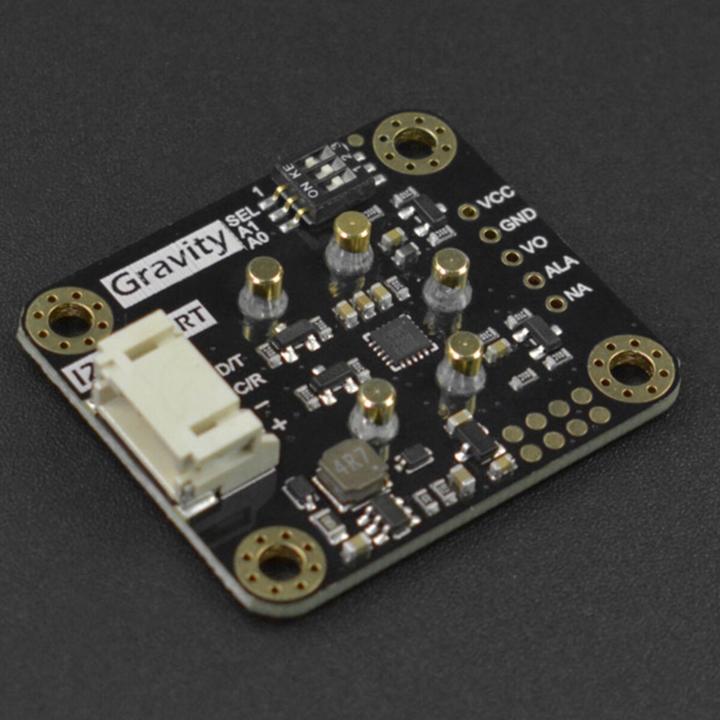

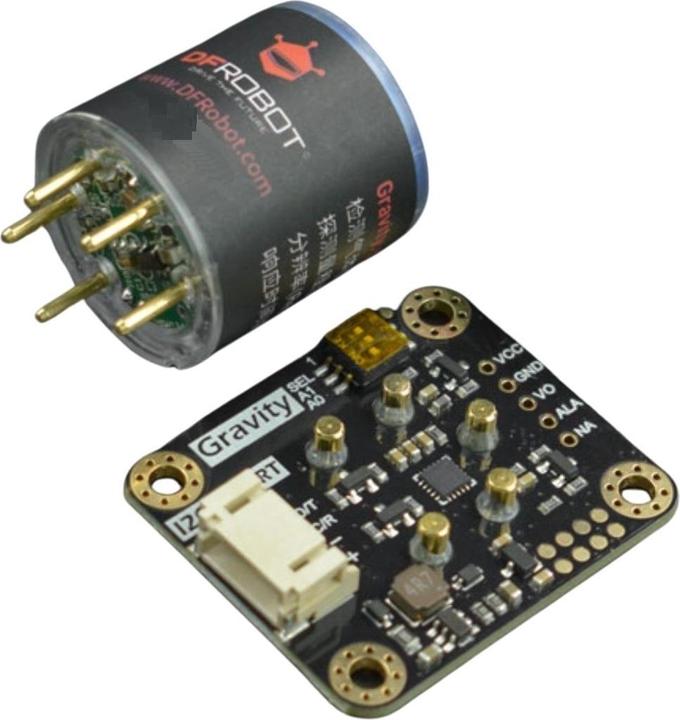

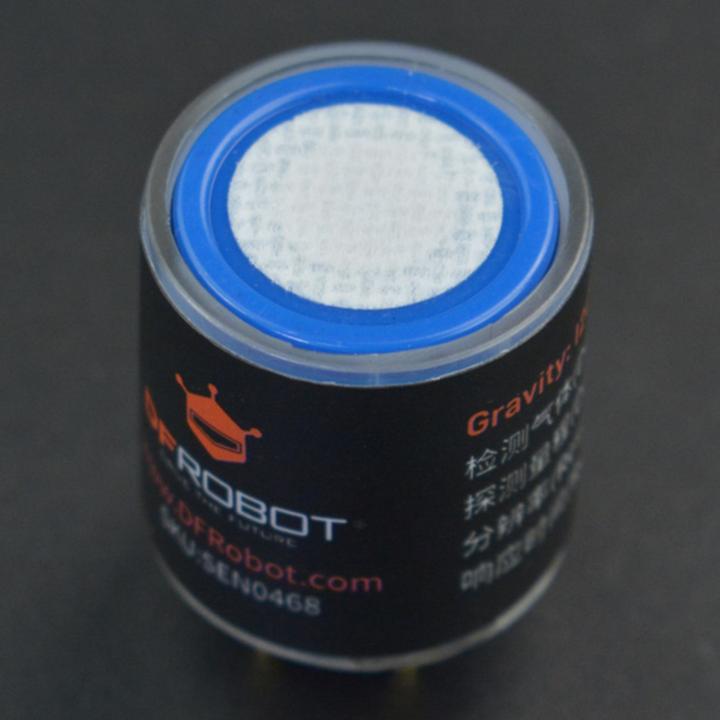

DFRobot Gravity CL2 Chlorine Sensor I2C and UART

Ratings
Delivered between Mon, 26.5. and Tue, 27.5.
Only 1 item in stock at third-party supplier
Supplied by

Product details

The Gravity CL2 chlorine sensor from DFRobot is an innovative, factory-calibrated device for measuring chlorine concentrations in the air, with a measuring range of 0 to 20 ppm. This sensor is characterized by its versatility, as it supports analogue, I2C, and UART output modes, allowing easy integration into various projects. The use of the electrochemical principle ensures high sensitivity, stability, and excellent resistance to interference. With a lifetime of more than two years, this sensor is a reliable choice for applications in the chemical industry, pharmaceutical production, and environmental protection. Compatibility with common microcontrollers such as Arduino, ESP32, and Raspberry Pi enables quick and easy integration into existing systems.

Features:

  • High sensitivity and accuracy in the detection of chlorine.
  • Supports multiple output modes: analogue, I2C, and UART.
  • Robust design with a long service life of over two years.
  • Strong anti-interference capability due to the electrochemical measuring principle.
  • Easy integration thanks to the Gravity interface and compatibility with Arduino, ESP32, and Raspberry Pi.

Application examples:

  • Monitoring the chlorine concentration in swimming pools and water treatment plants.
  • Use in the chemical industry for monitoring production processes.
  • Measurement of chlorine in the air in pharmaceutical production facilities.
  • Environmental monitoring for the detection of chlorine contamination.

Technical data:

  • Manufacturer: DFRobot
  • Manufacturer SKU: SEN0468
  • Detection gas: Chlorine (CL2)
  • Measuring range: 0-20 ppm
  • Operating voltage: 3.3-5.5V DC
  • Operating current: <5mA
  • Output signal: I2C, UART (0-3V), analogue voltage
  • Operating temperature: -20 to 50°C
  • Operating humidity: 15-90% RH (non-condensing)
  • Service life: >2 years (in the air)
  • Compatibility: Arduino, ESP32, Raspberry Pi
  • Dimensions: 37 x 32 x 30 mm
  • Weight: 78.4 g

Scope of delivery:

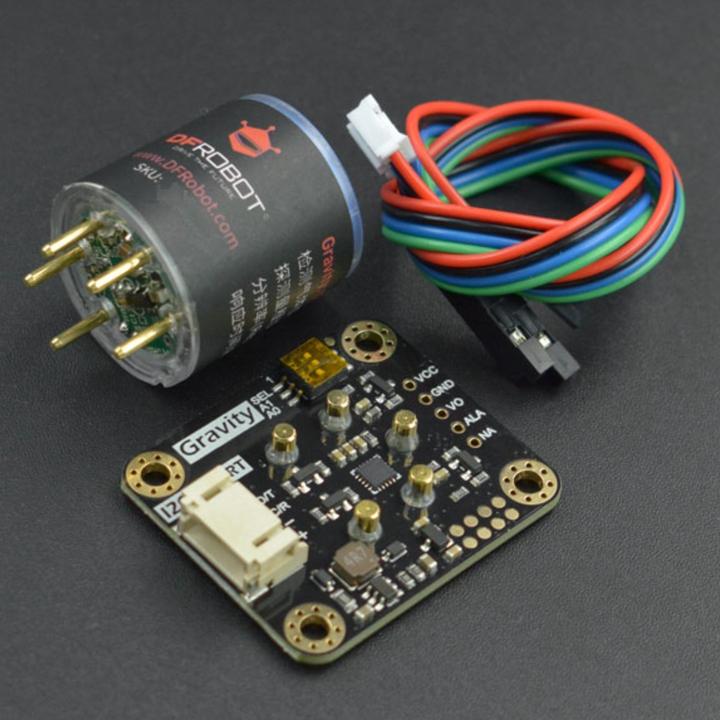

  • 1x Gravity CL2 chlorine sensor I2C and UART
  • 1x Gravity IIC/UART sensor cable.

Key specifications

Item number
42929968

General information

Manufacturer
DFRobot
Category
Development boards + Kits
Release date
15.2.2024

Power supply

Operating voltage
5.50 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x Gravity CL2 chlorine sensor I2C and UART, 1x Gravity IIC/UART sensor cable

Product dimensions

Length
35520 mm
Weight
78.40 g
