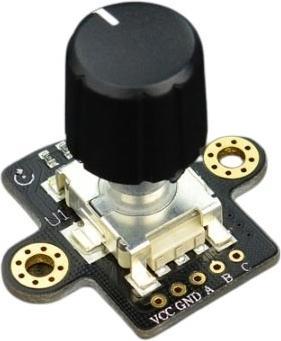

DFRobot EC11 Rotary Encoder Module
More than 10 items in stock at third-party supplier
Product details

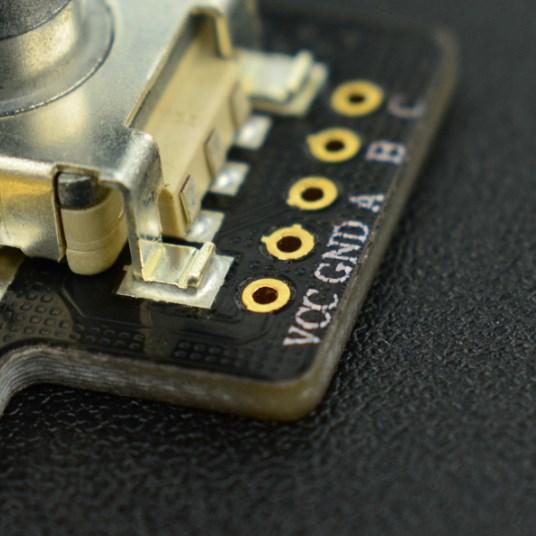

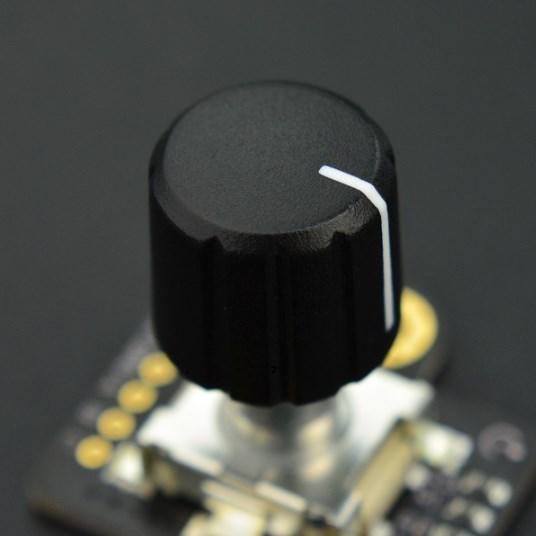

The EC11 encoder from DFRobot is a 360 degree rotary encoder that can be rotated endlessly. The module has three signal terminals: Terminals A and B are encoder outputs, terminal C is the push button signal output when the rotary knob is pressed. This module is perfect for navigating menus, for example. It can also be super used to control and move motors, similar to a handwheel on CNC machines.
Technical details:
Operating voltage: 3.4V to 5V
Full rotation angle: 360 degrees (no stop)
Number of pulses: 15
Lifetime: 30000 ± 200cycles
Contact resistance: ? 100m?
Insulation resistance: 100M? or more
Operating temperature: -30°C to +80°C
Module size: 33.8 x 22.4 x 27.8mm
Weight: 14g

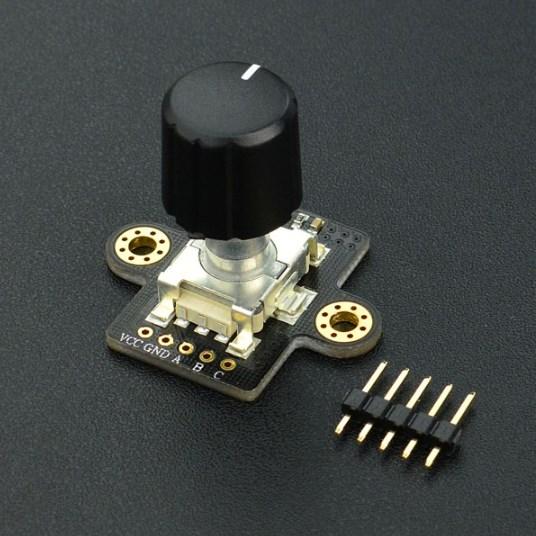

Scope of delivery:
1x EC11 Rotary Encoder Module (Including rotary knob).
1x pin header 1x5 pin.
Item number | 24861689 |
Manufacturer | DFRobot |
Category | Development boards + Kits |
Release date | 23.3.2023 |
Operating voltage | 5 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x EC11 Rotary Encoder Module (rotary knob included), 1x pin header 1x5 pin |
Weight | 14 g |
