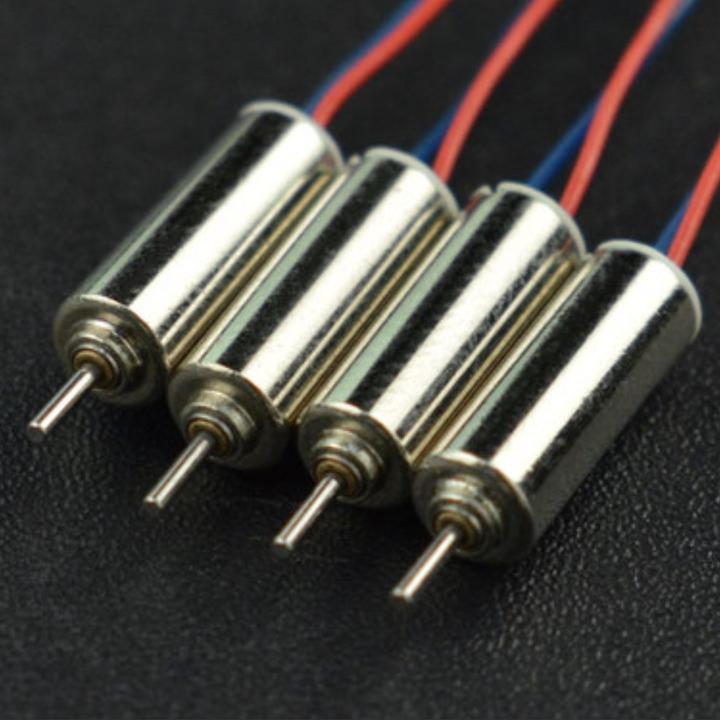

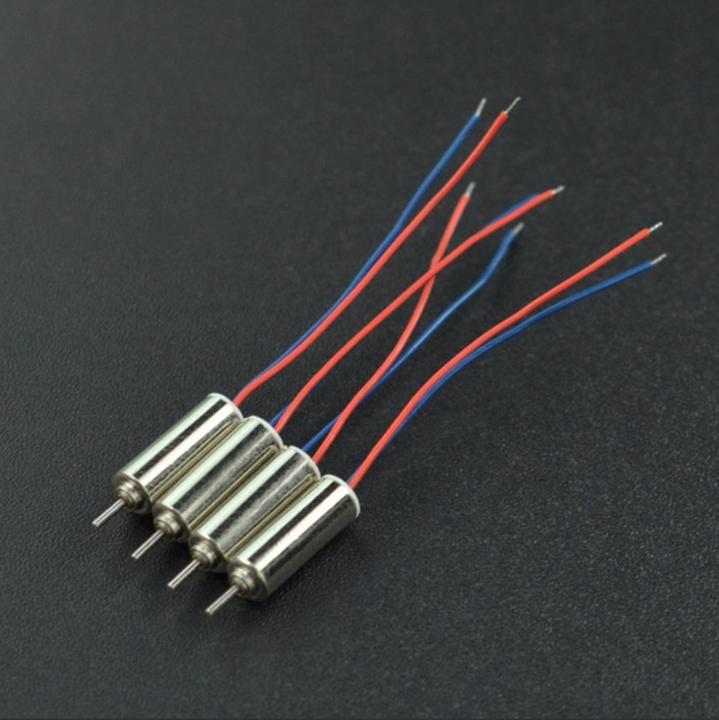

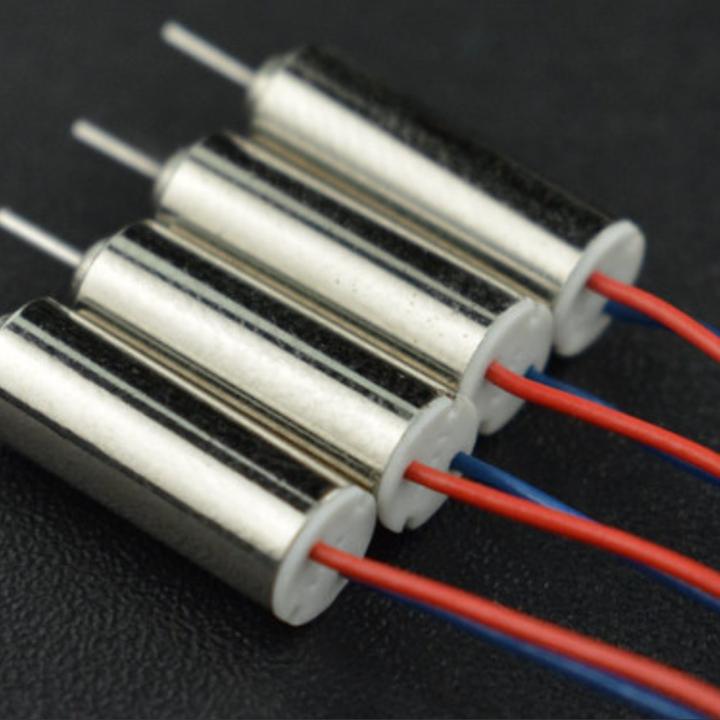

DFRobot 4x12mm Coreless Micro Motor 4pcs

Coreless DC motors are a special type of DC motors that do not have an iron core in the rotor. Instead, a copper wire winding in a basket shape rotates around the outside of a cylindrical magnet. This brings several advantages. Coreless motors can be built much more compactly than conventional DC motors, as the mechanism is more space-efficient. Since there is no iron core, the motor core has much less mass, allowing it to accelerate and decelerate significantly faster and achieve extremely high speeds. The absence of an iron core in the rotor prevents the cogging torque caused by magnetic induction; therefore, the rotation is smooth, with minimal noise and vibrations. Of course, there are not only advantages to coreless motors. Because the motors are very compact and can reach extremely high speeds, there is a risk of overheating. Therefore, coreless motors are less suitable for applications where they need to run continuously for long periods.

Features:

• Coreless design without an iron core
• Maximum speed of 60,000 rpm
• Smooth rotation with low vibrations and noise
• Faster acceleration and deceleration

Technical Details:

• Manufacturer: DFRobot
• Manufacturer SKU: FIT0789
• Voltage: 3.7 V
• Current: 40 mA
• Speed: 60,000 rpm
• Motor length: 12 mm
• Motor diameter: 4 mm
• Shaft length: 4 mm
• Shaft diameter: 0.7 mm
• Weight: 4.5 g

Included:
4x 4x12 mm Coreless Micro Motor.
