Delock USB Type-C converter for 1 x M.2 NVMe SSD + 1 x SATA SSD / HDD with clone function

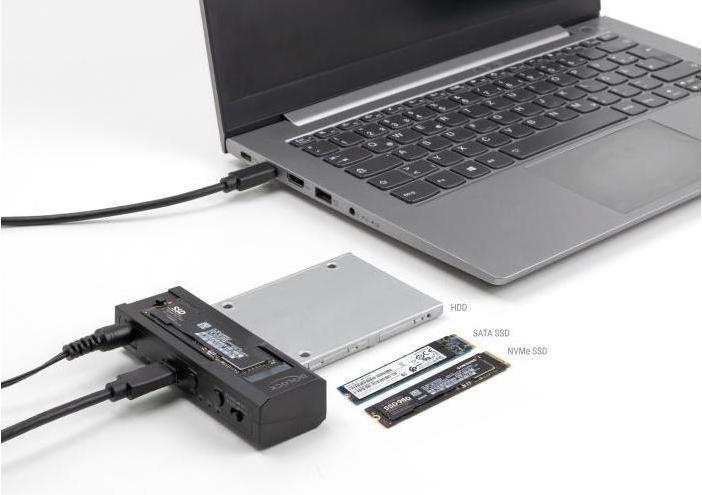

This converter by Delock enables the simultaneous operation of an M.2 NVMe SSD in 2280, 2260, 2242, and 2230 formats, and a 2.5 or 3.5 SATA HDD or SSD via the USB interface.

Clone function without PC
The integrated clone function allows you to clone storage without the use of a PC. It is possible to clone from NVMe to SATA and SATA to NVMe.

Specifications
Connectors:

• 1 x USB 10 Gbps USB Type-C socket
• 1 x M.2 Key M slot
• 1 x SATA 6 Gb/s 22 pin socket
• 1 x DC power socket

Chipset: JMicron JMS581D
Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M on PCIe (NVMe) basis
Maximum height of the components on the module: 1.5 mm, use of double-sided modules possible
For 2.5 and 3.5 SATA HDDs/SSDs
Supports NVM Express (NVMe)
Supports S.M.A.R.T.
Supports TRIM
Supports Native Command Queuing (NCQ)
Data transfer rate up to 10 Gbps
Supports UASP

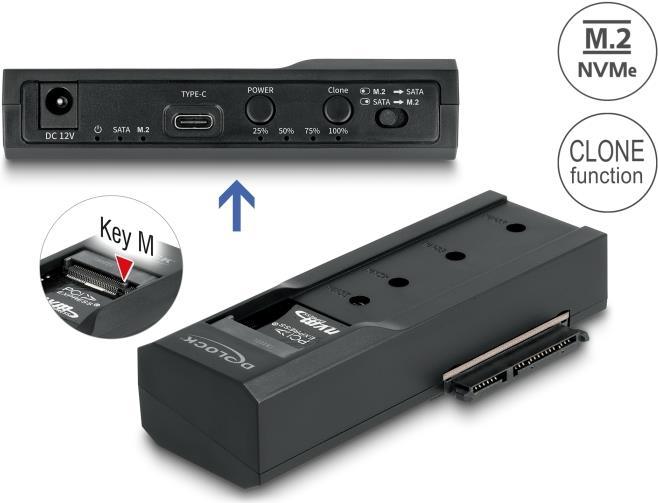

7 x LED display for power, access, and copy status
Bootable
Function keys:

• 1 x clone button
• 1 x on/off switch
• 1 x switch for clone mode

Dimensions (LxWxH): approx. 107 x 35 x 24 mm
Hot Plug, Plug & Play

Power supply specification
Plug-in power supply unit
Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
Output: 12 V / 3 A
Earth outside, plus inside
Dimensions:

• Inside: ø approx. 2.5 mm
• External: ø approx. 5.5 mm
• Length: approx. 10 mm

System requirements

• Android 11.0 or higher
• Chrome OS
• Linux kernel 5.15 or higher
• Mac OS 12.4 or higher
• Windows 10/10-64/11
• iPad Air (4th generation) or higher
• iPad Pro (3rd generation) or higher
• Surface Pro 7
• PC or notebook with a free USB Type-A port or
• Device with a free USB Type-C port or with a free Thunderbolt 3 or Thunderbolt 4 port

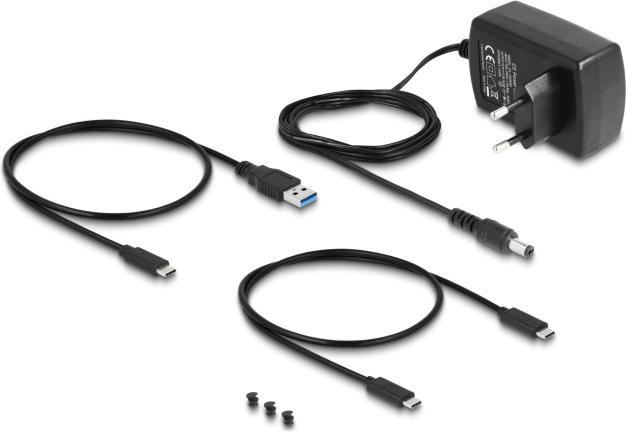

Package contents

• USB Type-C converter
• Cable USB-C plug to USB-C plug, length approx. 80 cm
• Cable USB-C plug to USB Type-A plug, length approx. 80 cm
• 3 x rubber nipples
• External power supply 12.0 V / 3.0 A
• Operating instructions.
