Delock USB barcode scanner 1D with connection cable and holder

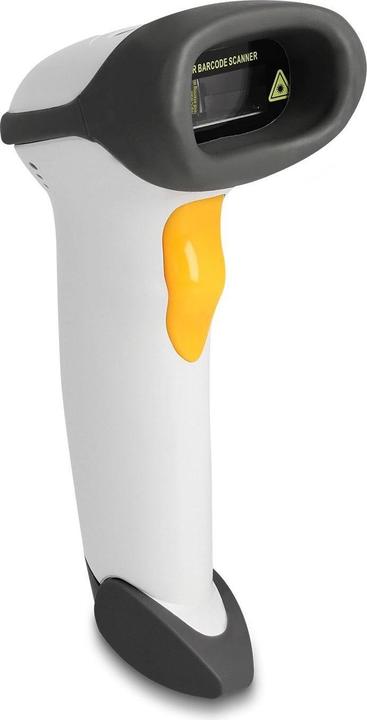

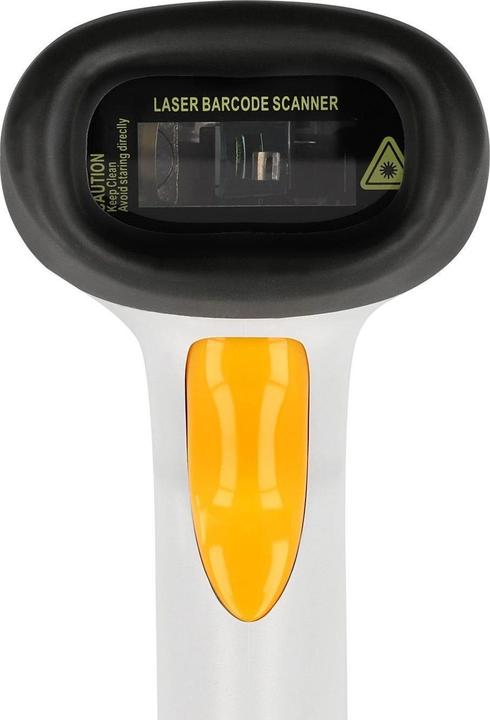

This barcode laser scanner from Delock can be directly connected to a PC or laptop. Alternatively, an adapter can be used to connect the scanner to a mobile phone or tablet. It can accurately capture up to 200 scans per second of all common 1D barcode types, even from a distance. Additionally, the scanner recognizes barcodes displayed on screens and monitors.

Data Transmission via USB
The data transfer of the scanned barcodes is done via the included USB cable.

Secure Connection

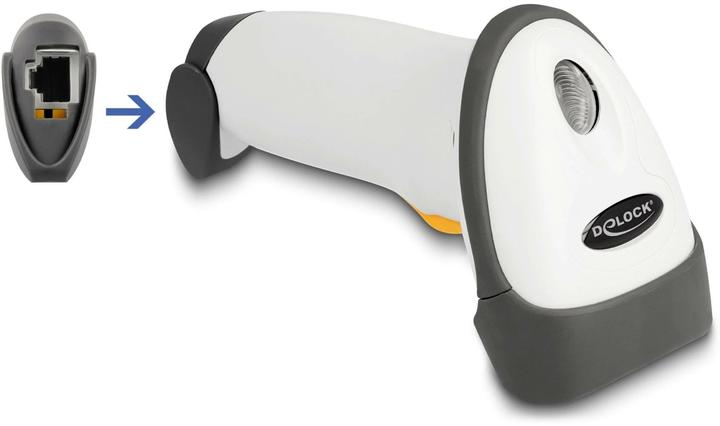

The USB cable connects to the scanner via an RJ50 connector. The connection is flush, so the cable can only be removed using the included eject tool. This ensures a constant connection between the scanner and the system.

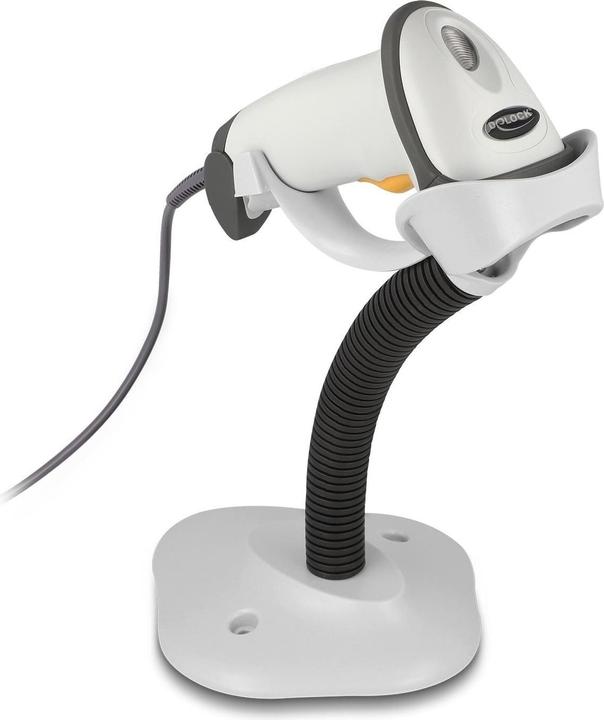

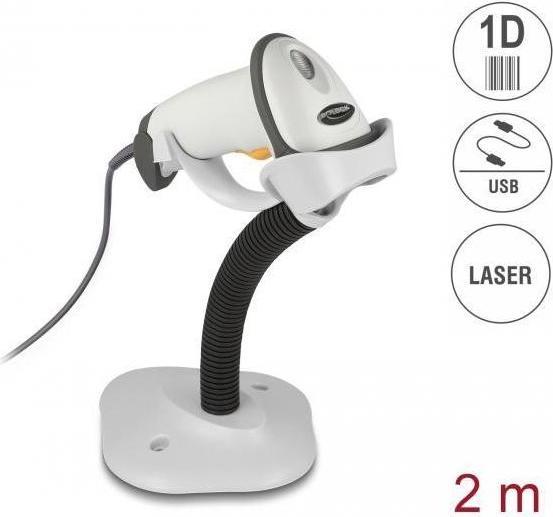

Stable Hold

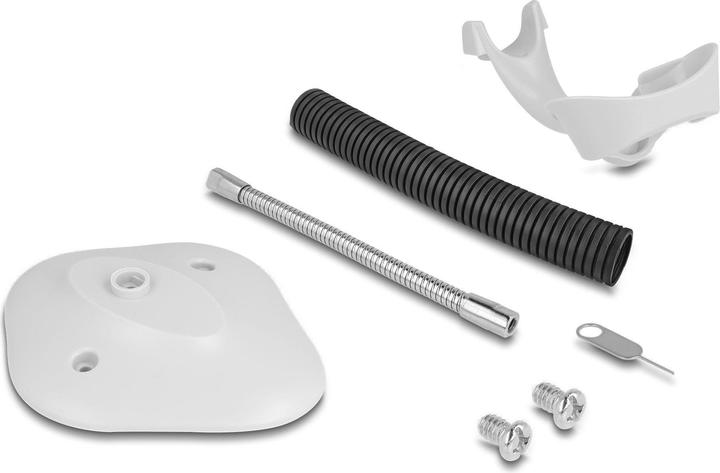

The scanner comes with a suitable holder that can be individually adjusted thanks to its flexible gooseneck. The two holes in the base allow the stand to be secured to a desk, providing a stable hold when placing the scanner down.

Specifications

• Connection: 1 x RJ50 socket
• Decoding chip: ARM Cortex 32 Bit
• Resolution: max. 640 x 480
• Trigger: Push button
• Reading distance: approx. 185 mm to 300 mm
• Reading accuracy: 3 mil
• Scan type: Laser Class 1, 655 nm, <0.5 mW
• Scan rate: up to 200 scans per second
• Scan angle: 44°
• Input voltage: 5 V
• Current consumption:
Operation: max. 100 mA
Standby: max. 10 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -40 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non-condensing)
• Color: light gray
• Weight: approx. 120 g
• Dimensions (LxWxH): approx. 16.5 x 8.2 x 6.5 cm
• Cable length including connection: approx. 2 m
• Scan codes:
Code 128
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13
• Holder dimensions (LxWxH):
Base: approx. 172 x 153 x 23 mm
Gooseneck: approx. 165 x 23 x 23 mm
Holder: approx. 145 x 71 x 37 mm

System Requirements

Android...
