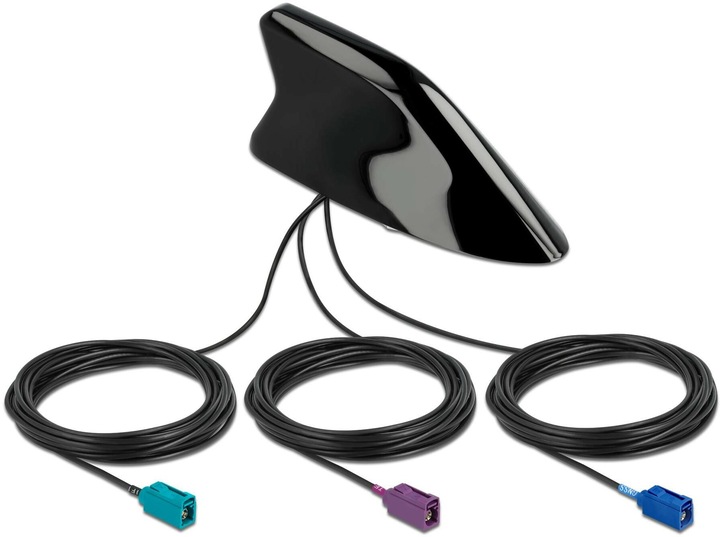

Delock Shark Fin Antenna with LTE + WLAN + GNSS Multiband

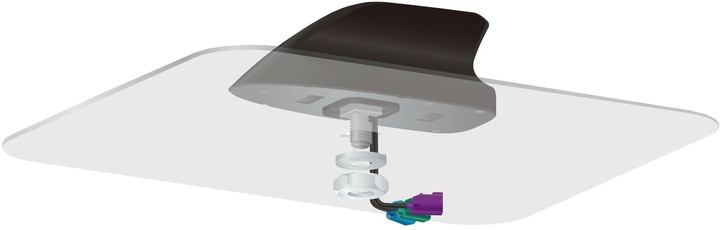

This multi-band antenna from Delock is designed for mounting on a car roof. The so-called Shark Fin antenna features three different frequency bands. The GNSS patch antenna receives signals from the global navigation satellite systems Galileo and GPS and also operates in all common LTE bands. Additionally, the 2.4 GHz frequency band covers the Wi-Fi range.

Stylish and Functional
The modern design of this Shark Fin antenna not only looks good but is also particularly stable and aerodynamic.

Specifications

• Connectors:

1 x FAKRA D socket
1 x FAKRA Z socket
1 x FAKRA C socket

• LTE FAKRA D:

Frequency range:
698 - 960 MHz
1710 - 2690 MHz
Antenna gain: 3.5 dBi
VSWR: < 3.0
Impedance: 50 Ohm
Polarization: linear

• Wi-Fi FAKRA Z:

Frequency range:
2400 - 2483.5 MHz
Antenna gain: 3.0 dBi
VSWR: < 2.0
Impedance: 50 Ohm
Polarization: linear

• GNSS FAKRA C:

Frequency range:
GPS: 1.5754200 GHz
Galileo: 1.5754200 GHz
Antenna gain: 2 dBi
VSWR: < 1.5
Impedance: 50 Ohm
Polarization: RHCP

• LNA GNSS:

Antenna gain: 28.0 dBi
Noise figure: < 2.0 dB
VSWR: < 2.0
Power supply: 3.0 - 5.0 V
Current consumption: < 15 mA

• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Cable length: approx. 3 m
• Cable color: black
• Cable type: RG-174
• Protection class: IP67
• Dimensions (LxWxH): approx. 182 x 69 x 70 mm

System Requirements

• Devices with free Fakra connectors

Package Contents

• Shark Fin antenna
• Nut.
