Delock Removable rack Slot 1 x M.2 NMVe SSD for removable rack

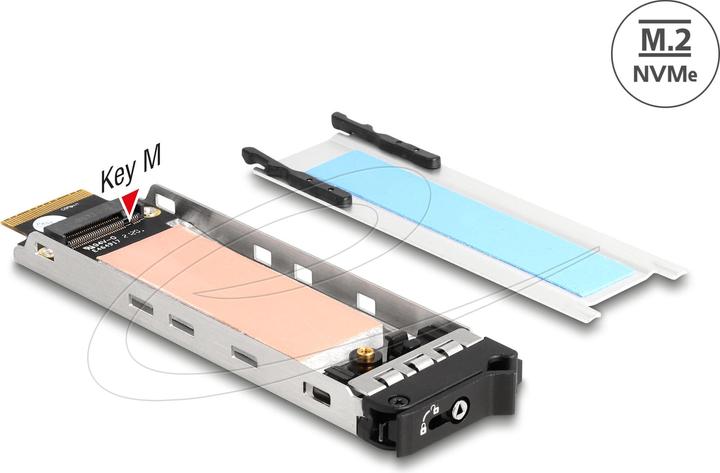

This Delock exchange frame insert is designed for the installation of an M.2 SSD in 2280, 2260, 2242, or 2230 format and is compatible with exchange frames 47028, 47042, 47070, 47072, 47111, 47117, 47126, and 47129.

Insert with lock and suspension: To ensure that only authorized personnel can remove the hard drive, the exchange frame features a key lock. The sturdy metal carrier has springs on the top and bottom that reduce vibrations.

Specifications:

• Connections:
• 1 x M.2 Key M connector
• 1 x M.2 Key M slot
• Interface: PCIe / NVMe
• Supports M.2 modules in 2280, 2260, 2242, and 2230 formats with Key M or Key B+M based on PCIe
• Maximum height of components on the module: 1.5 mm, use of double-sided modules is possible
• Material: Metal
• Operating temperature: -40 °C to 85 °C

System requirements:

• Exchange frames 47028, 47042, 47070, 47072, 47111, 47117, 47126, and 47129 from Delock

Package contents:

• Exchange frame insert
• Heat sink
• Screws

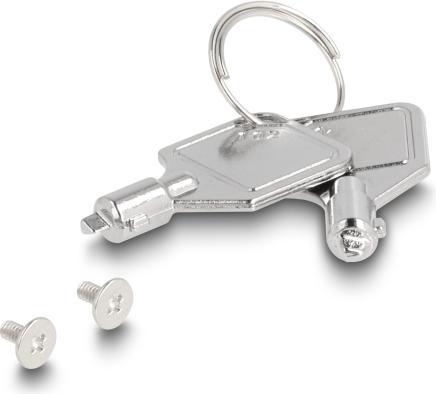

• 2 x keys
• User manual.
