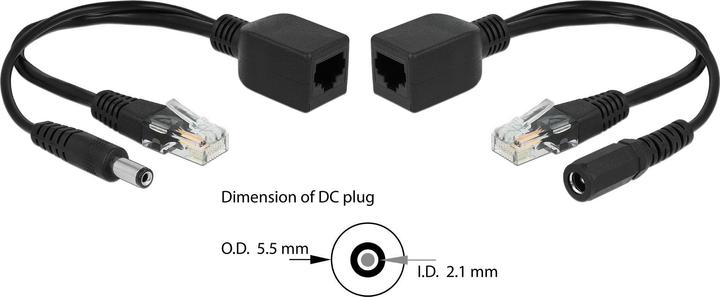

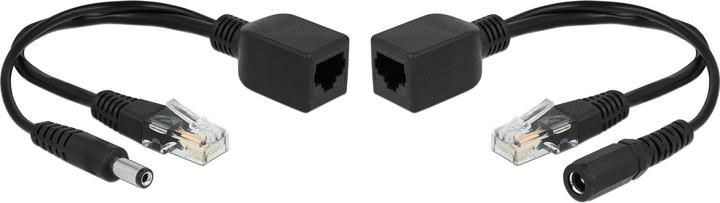

Delock PoE Converter 9-57V passive set, 100Mbps, DC 5.5 x 2.1mm

With this adapter set from Delock, a network cable can be used for a 10/100 Mbps Ethernet connection while simultaneously transmitting power. Two adapters are required, which are connected to the cable. On both sides, there are DC sockets and plugs available for connecting a power supply.

Note: One adapter cannot be used alone; the second adapter is always needed.

Specifications:

• Connections:
• Input:
• 1 x RJ45 plug
• 1 x DC 5.5 x 2.1 mm socket
• Output:
• 1 x RJ45 socket
• 1 x RJ45 plug
• 1 x DC 5.5 x 2.1 mm plug
• Power: 9 - 57 V, max. 800 mA
• Pin assignment:
• 1/2, 3/6 data
• 4/5(+), 7/8(-) power
• Unshielded (UTP)
• Color: black
• Cable length including connectors: approx. 21 cm

System requirements:

• Network cable

Package contents:

• Passive PoE adapter set.
