Delock M8 plug connector A-coded 4-pin socket for mounting

Ratings
BrandMore from Delock
Delivered between Fri, 6.6. and Tue, 17.6.
10 items in stock at supplier

Product details

Description

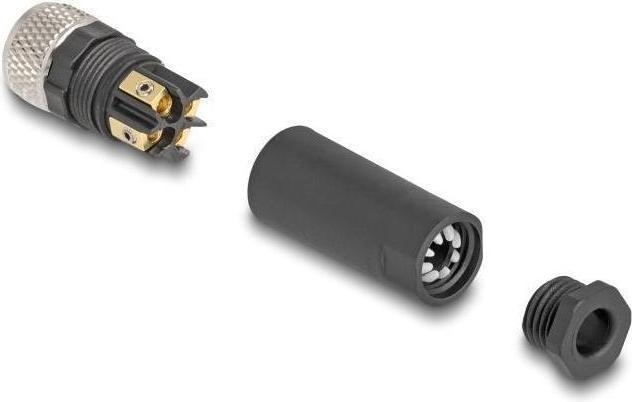

This connector from Delock can be used to connect a cable via a screw terminal to an M8 connector, for example, for machine control or automation.

Specifications

  • Connections:

1 x M8 socket A-coded 4 pin

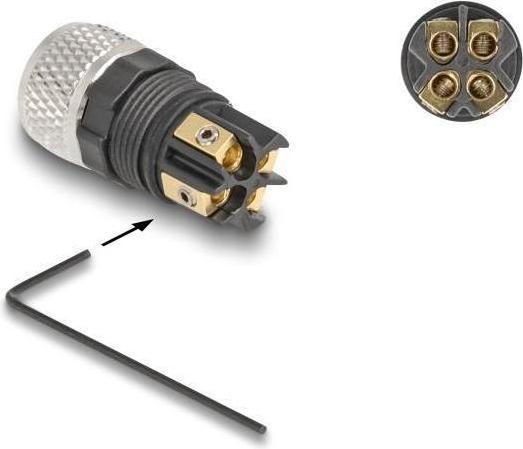

4 x screw terminal

  • Usable for a wire cross-section range of 26 to 22 AWG (0.13 - 0.32 mm²)
  • Operating voltage: max. 60 V
  • Current: max. 3 A
  • Operating temperature: -25 °C ~ 85 °C
  • Protection class: IP67
  • Cable entry max. 3.0 - 4.5 mm
  • Thread size: M8 x 1.0 mm
  • Housing material: PA66
  • Color: black

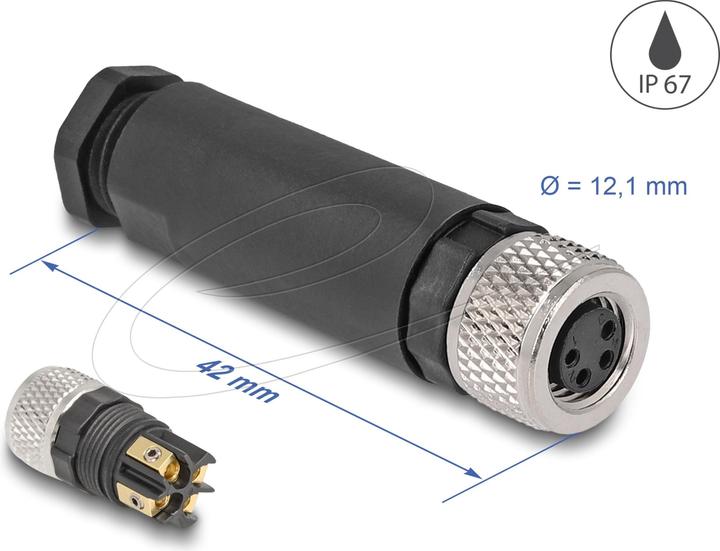

  • Dimensions (LxD): approx. 42 x 12.1 mm

System Requirements

  • An available M8 plug

Package Contents

  • Connector

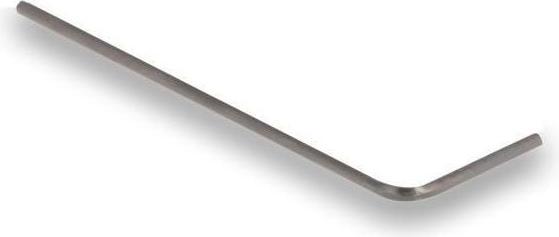

  • Allen key.

Key specifications

Cable + connector type
Plug connectors
Cable length
0.04 m
Item number
37994826

General information

Manufacturer
Delock
Category
Cables + Plugs
Manufacturer no.
60532
Release date
11.9.2023

Colour

Colour
Black

Material

Material group
Metal
Material
Plastic

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
85 °C
Min. temperature
-25 °C
Cable length
0.04 m
Manufacturer Type
60532
Number of cores
4 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Plug connectors

Product dimensions

Length
1.21 cm
Width
4.20 cm
