Delock M12 plug connector A-coded 5 pin plug for mounting

Ratings
BrandMore from Delock
Delivered between Thu, 19.6. and Sat, 28.6.
10 items in stock at supplier

Product details

Description
This connector from Delock can be used to connect a cable via a screw terminal connection to an M12 connector, for example, for machine control or automation.

Specifications

  • Connections:

1 x M12 plug A-coded 5 pin

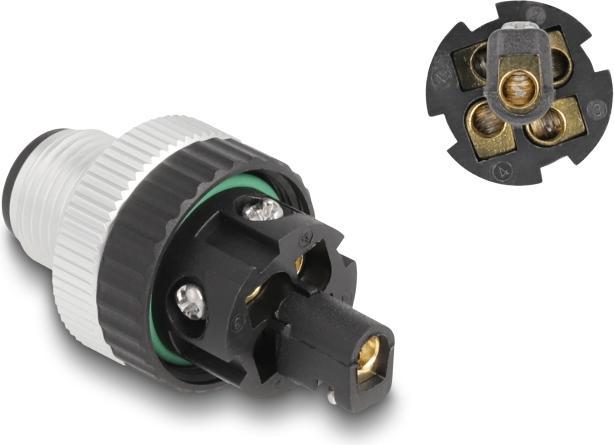

5 x screw terminals

  • Usable for a wire cross-section range of 26 to 20 AWG (0.13 - 0.52 mm²)
  • Operating voltage: max. 60 V
  • Current: max. 4 A
  • Operating temperature: -25 °C to 85 °C
  • Protection class: IP67

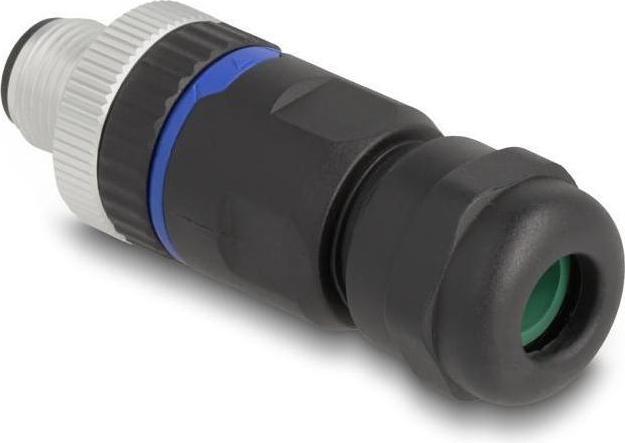

  • Cable entry max. 3.0 - 8 mm
  • Thread size: M12 x 1.0 mm
  • Housing material: PA66
  • Color: black

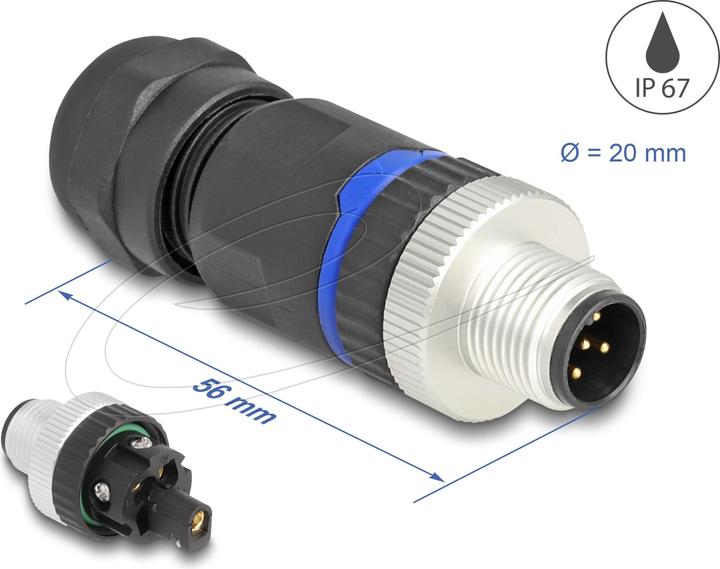

  • Dimensions (LxD): approx. 56 x 20 mm

System Requirements

  • An available M12 socket

Package Contents

  • Connector.

Key specifications

Plug type
M12
Cable + connector type
Plug connectors
Item number
37994830

General information

Manufacturer
Delock
Category
Cables + Plugs
Manufacturer no.
60534
Release date
11.9.2023

Colour

Colour
Black

Material

Material group
Metal
Material
Pa66

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
M12
Max. temperature
85 °C
Min. temperature
-25 °C
Manufacturer Type
60534
Number of cores
5 x

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
5.60 cm
Width
2 cm
Height
20 cm
