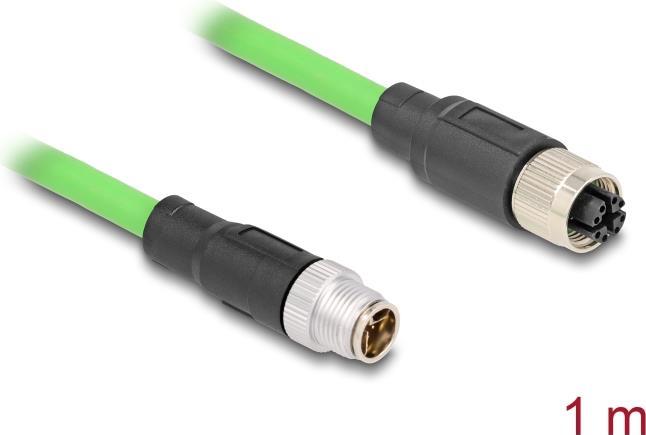

Delock M12 cable X-coded 8 pin plug to socket PUR (TPU) 1 m

SF/UTP, 1 m
CHF47.70/1m
Ratings
BrandMore from Delock
Delivered between Thu, 9.7. and Sat, 25.7.
More than 10 items ordered
Free shipping starting at 50.–

Length3

Product details

This industrial Ethernet cable by Delock can be used to connect various components with M12 connectors, such as for machine control or automation.

Drag chain suitability: The high-quality cable supports up to 10 million bending cycles, making it suitable for use in drag chains and other harsh environments.

Robust cable sheath made of PUR (TPU): The polyurethane (PUR) cable sheath is oil and UV-resistant, meeting the high requirements for industrial applications, such as in the tool and automation sector.

Specification:

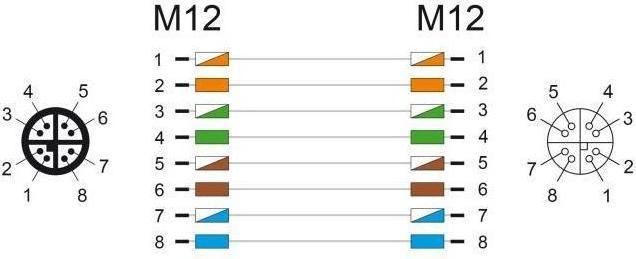

  • Connections: 1 x M12 plug X-coded 8 pin, 1 x M12 socket X-coded 8 pin
  • Suitable for drag chains
  • SF/UTP
  • Shielding: aluminium foil, tinned copper braiding
  • Copper cable
  • Wire cross-section: 26 AWG (0.129 mm²)
  • Cable diameter: approximately 6.8 mm
  • Cable sheath material: PUR (TPU)
  • Maximum number of bending cycles: 10,000,000
  • Smallest bending radius: 54.4 mm for fixed installation, 102.0 mm for flexible installation
  • Oil-resistant
  • UV-resistant
  • Flammability class: UL 94
  • Operating temperature: -25 °C to 80 °C for fixed installation, -25 °C to 70 °C for flexible installation
  • Protection class: IP67
  • Colour: green
  • Length including connections: approximately 1 m, Length: approximately 2 m

Package contents:

  • M12 cable

Packaging:

  • Resealable bag.

Key specifications

Patch cable type
Copper cable

General information

Item number
41286871
Manufacturer
Delock
Category
Network cables
Manufacturer No.
80431
Release date
22.12.2023
External links
Manufacturer's site (de)

Colour

Cable colour
Green

Material

Material
Polyurethane (PUR)
Material of the isolation
Aluminium foil

Cable properties

Connection A
M12
Connection B
M12
Cable Application
Network
Plug features
Gold-plated contacts
Plug Gender
Plug/socket (M/F)
American Wire Gauge (AWG)
26
Temperature range
-25° - 80 °C

Patch cable properties

Patch cable type
Copper cable

Twisted-pair cable properties

Shield
SF/UTP

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.23 kg
Climate contribution
CHF 0.69

Scope of delivery

Items per sales unit
1x
Scope of delivery
Zip polybag

Product dimensions

Diameter
6.80 mm
Length
1 m
Width
6.80 mm
Weight
85 g

30-day right of return
24 Months Warranty (Bring-in)
