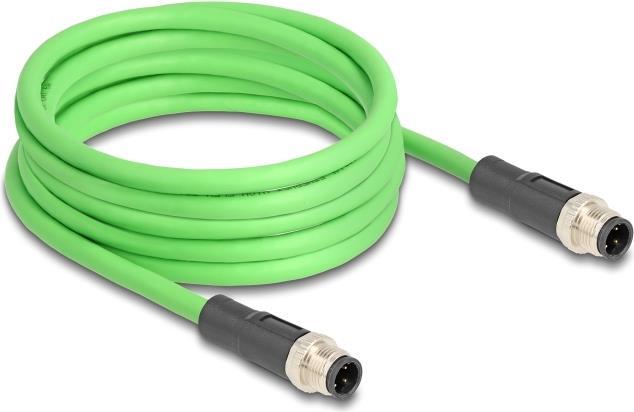

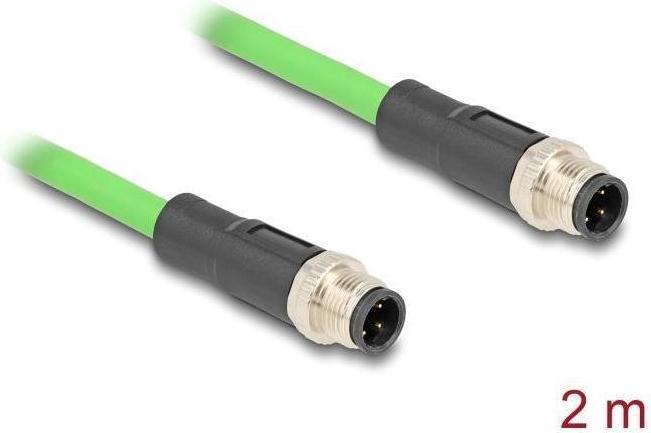

Delock M12 cable D-coded 4 pin plug to plug PUR (TPU) 2 m

SF/UTP, 2 m
was CHF31.– CHF14.46/1m
Ratings
BrandMore from Delock
Delivered between Thu, 25.6. and Sat, 27.6.
More than 10 items ordered
Free shipping starting at 50.–

Length3

Product details

Description
This industrial Ethernet cable from Delock can be used to connect various components with M12 connectors, such as for machine control or automation.

Drag chain suitability
The high-quality cable supports up to 10 million bending cycles, making it suitable for use in drag chains and other harsh environments.

Robust cable sheath made of PUR (TPU)
The polyurethane (PUR) cable sheath is oil and UV resistant, thus meeting the high demands for industrial applications, such as in the tool and automation sectors.

Specifications

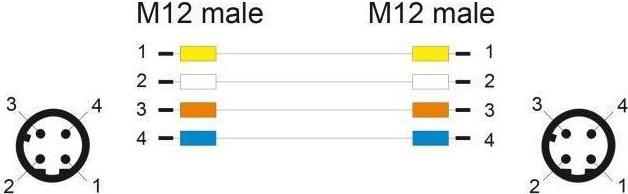

  • Connectors:

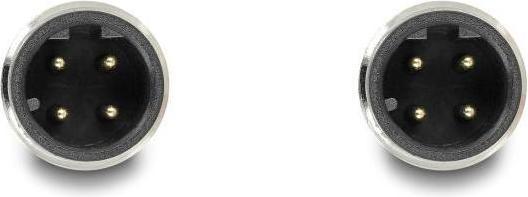

1 x M12 plug D-coded 4 pin
1 x M12 plug D-coded 4 pin

  • Drag chain suitable
  • SF/UTP
  • Shielding: aluminum foil, tinned copper braid
  • Copper conductor
  • Wire cross-section: 22 AWG (0.326 mm²)
  • Cable diameter: approx. 6.5 mm
  • Cable sheath material: PUR (TPU)
  • Max. number of bending cycles: 5,000,000
  • Minimum bending radius:

52.0 mm for fixed installation
97.5 mm for flexible installation

  • Oil resistant
  • UV resistant
  • Flammability class: UL 94
  • Operating temperature:
  • 25 °C ~ 80 °C for fixed installation
  • 25 °C ~ 70 °C for flexible installation
  • Protection class: IP67
  • Color: green
  • Length including connectors: approx. 2 m

Package contents

  • M12 cable.

Key specifications

Patch cable type
Copper cable
Contact assignment
straight

General information

Item number
41286904
Manufacturer
Delock
Category
Network cables
Manufacturer No.
80417
Release date
22.12.2023
External links
Manufacturer's site (de)

Colour

Cable colour
Green

Material

Material
PUR (TPU)
Material of the isolation
Polyurethane

Cable properties

Connection A
M12
Cable Application
Network
Cable design
Round
Plug type
Flat
Cable connection
Connection (m/m)
American Wire Gauge (AWG)
22
Temperature range
-25° - 80 °C

Patch cable properties

Patch cable type
Copper cable

Twisted-pair cable properties

Contact assignment
straight
Shield
SF/UTP

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.23 kg
Climate contribution
CHF 0.69

Scope of delivery

Items per sales unit
1x
Scope of delivery
Zip polybag

Product dimensions

Diameter
6.50 mm
Length
2 m
Width
6.50 mm
Weight
128 g
