Delock D-type RJ45 panel jack with LSA connection Cat.6A STP metal

Ratings
BrandMore from Delock
Delivered between Fri, 6.6. and Tue, 17.6.
More than 10 items in stock at supplier

Product details

This RJ45 panel jack with a D-shaped metal flange by Delock is suitable for panel mounting and installation in a housing.

Special feature: Countersink for cheese head screws.

Specifications: Connectors
Connections:

  • 1 x RJ45 socket
  • 1 x LSA
  • Cat.6A specification

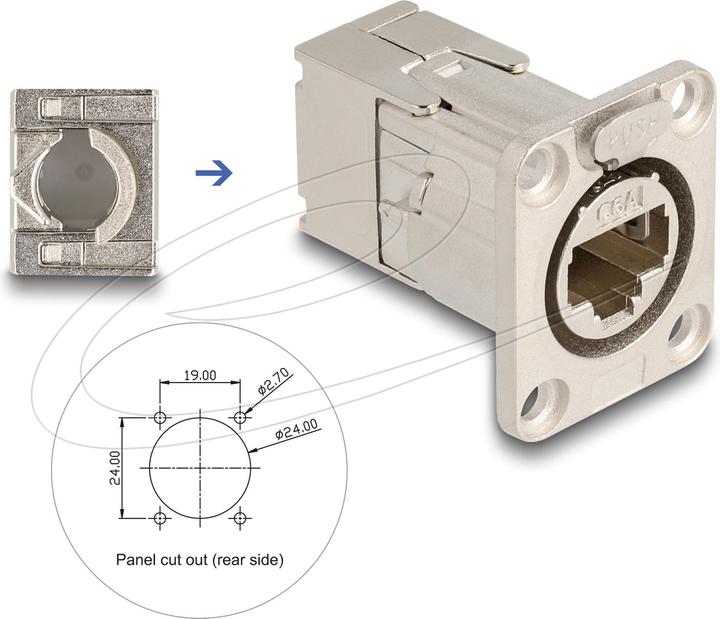

  • For installation in D-type ports with 24 x 19 mm housing cut-out (diameter): approx. 24 mm
  • Four holes for screw fastening
  • For solid and stranded conductors (26 - 22 AWG)
  • Assignment according to TIA-568A/B
  • Shielded (STP)
  • Operating temperature: -10 °C to 60 °C
  • Material: metal
  • Colour: silver
  • Dimensions (LxWxH): approx. 43.1 x 32.6 x 27.6 mm

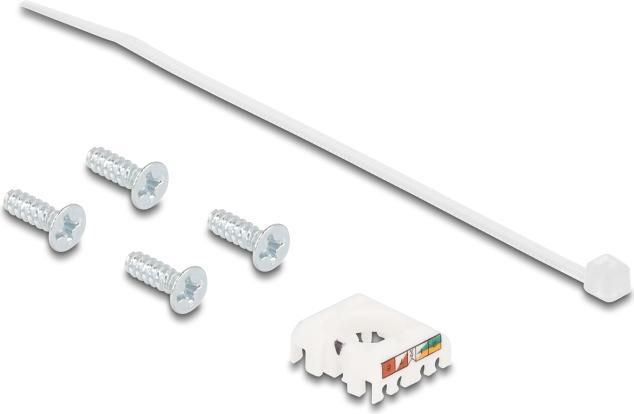

Package contents:

  • D-type module
  • Threading aid
  • Cable tie
  • 4 x screw
  • 4 x washer.

Key specifications

Plug type
RJ45
Item number
46509906

General information

Manufacturer
Delock
Category
Cables + Plugs
Manufacturer no.
67064
Release date
14.6.2024

Colour

Colour
Silver

Material

Material group
Metal
Material
Metal

Cable + Connector Features

Plug type
RJ45
Max. temperature
60 °C
Min. temperature
-10 °C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
4 x screw, 4 x washer, Cable ties, D-type RJ45 panel jack with LSA connection Cat.6A STP metal, Threading aid

Product dimensions

Length
4.31 cm
Width
3.26 cm
Height
2.76 cm

Package dimensions

Length
11.20 cm
Width
8.10 cm
Height
2.80 cm
Weight
43 g
