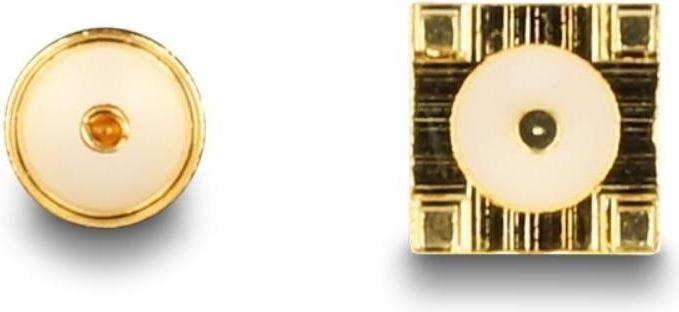

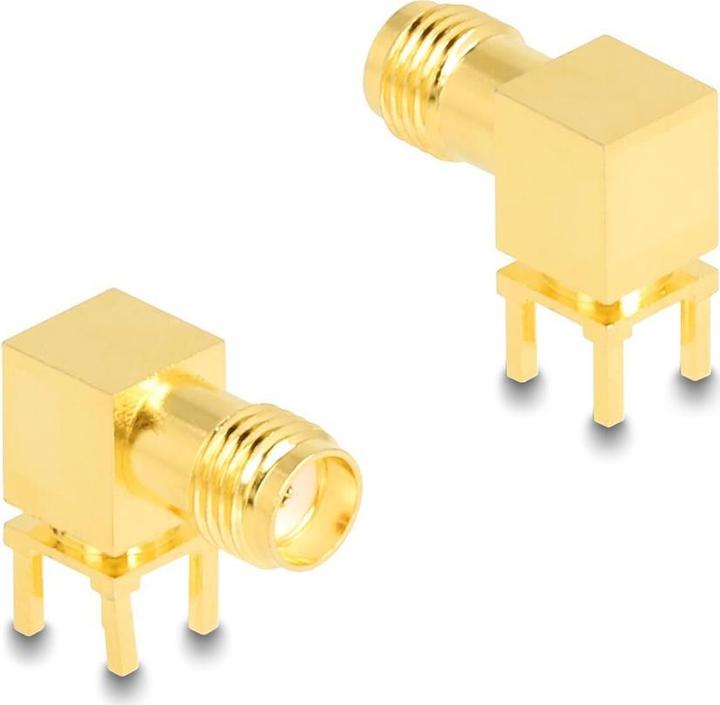

Delock Adapter SMA socket 90° PCB HBI59-1

Save CHF1.20
Ratings
BrandMore from Delock
Delivered between Fri, 6.6. and Tue, 17.6.
More than 10 items in stock at supplier

Product details

Description
This adapter by Delock is suitable for solder mounting on printed circuit boards. The gold coating prevents corrosion and ensures an optimum connection.

Specifications
Connection: 1 x SMA socket 90°
Housing material: HBI59-1 gold-plated brass
Impedance: 50 Ohm
Frequency range: DC - 6 GHz
Thread type: 1/4" - 36 UNS - 2A
Thread length: 5 mm
Operating temperature: -55 °C ~ 155 °C
Solder mounting: 5 solder points
Dimensions (LxWxH): approx. 27 x 24 x 12 mm
Package contents
Adapter.

Key specifications

Plug type
SMA
Cable + connector type
Adapter
Item number
44769853

General information

Manufacturer
Delock
Category
Cables + Plugs
Manufacturer no.
90198
Release date
8.4.2024

Colour

Colour
Gold

Material

Material group
Metal
Material
HBI59-1 Gold-plated brass

Cable + Connector Features

Cable + connector type
Adapter
Plug type
SMA
Max. temperature
155 °C
Min. temperature
-55 °C

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece
Scope of delivery
Adapter

Product dimensions

Length
2.70 cm
Width
2.40 cm
Height
1.20 cm
