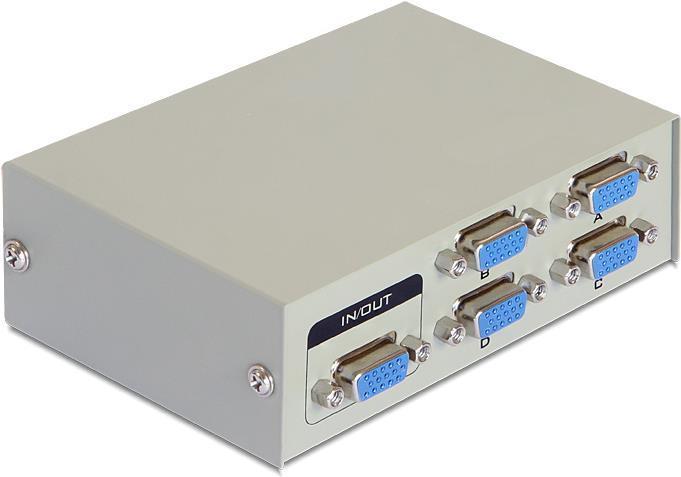

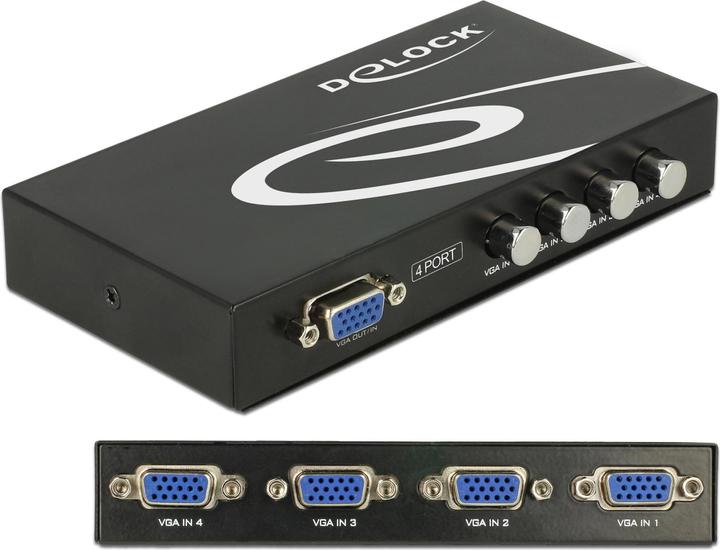

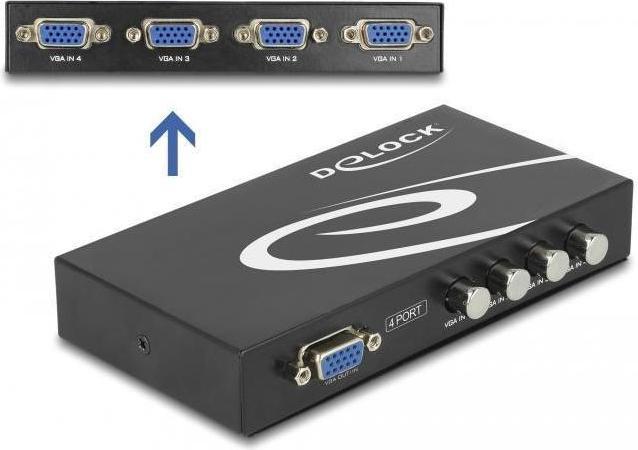

Delock 4Port VGA Switchbox

This Delock VGA switch is a manual bidirectional switch for connecting various computers with VGA ports, offering two different usage options.

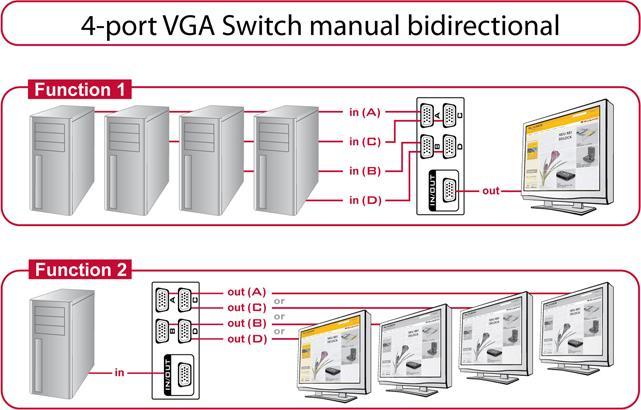

1. You can connect up to four computers with VGA ports to a monitor, TV, or projector with a VGA input. With the push of a button, you can select which device will display the signal on the screen.
2. You can connect one computer with a VGA port to up to four screens and select with the push of a button which screen will display the signal. (Simultaneous output on multiple screens is not possible.)

Revision 2.0 as of January 2017 - for old data see documents.

Specifications:

• Connections:
• Function 1
• Input: 4 x VGA 15 Pin socket
• Output: 1 x VGA 15 Pin socket
• Function 2
• Input: 1 x VGA 15 Pin socket
• Output: 4 x VGA 15 Pin socket
• 4 mechanical buttons
• Resolution up to 1920 x 1080 (depending on the system and connected hardware)
• Metal housing
• Does not require external power supply
• Dimensions (LxWxH): approx. 142 x 72 x 23 mm
• Color: black

System requirements:

• PC or laptop with a free VGA port
• VGA connection cable

Package contents:

• Bidirectional switch
• User manual.
