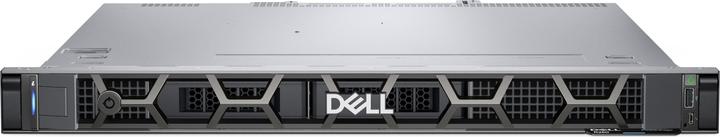

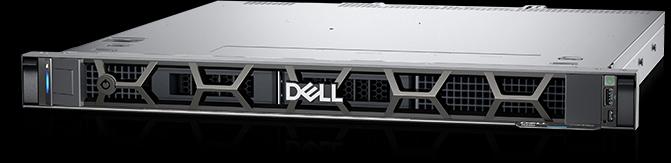

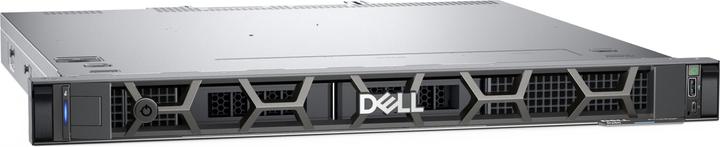

Dell PowerEdge R260 Smart Selection Intel Xeon E-2414 16GB 1,2TB HDD SAS 700W H355 3Yr Basic NBD

16 GB, Rack Server
Delivered between Fri, 30.5. and Tue, 3.6.
More than 10 items in stock at supplier

Product details

The Dell PowerEdge R260 is a powerful rack server designed for a variety of applications in enterprise environments. Equipped with an Intel Xeon E-2414 processor that operates at a clock speed of 2.6 GHz, this server provides a solid foundation for compute-intensive tasks. With 16 GB of DDR5 SDRAM and a maximum storage capacity of 1.2 TB via SAS hard drives, the PowerEdge R260 is capable of efficiently processing and storing large amounts of data. Its compact form factor of just 1U allows for space-saving integration into existing rack systems. The server supports a variety of network connections, including RJ45 and USB, enhancing connectivity and expandability. With a 12 MB L3 cache and support for ECC RAM, the PowerEdge R260 ensures reliable and error-free data processing, making it an excellent choice for businesses that rely on stability and performance.

  • Processor architecture: 64-bit with 4 cores and 4 threads
  • Maximum turbo clock speed of 4.5 GHz for additional performance
  • Supports up to 4 RAM slots for future expansions
  • ECC RAM for improved data security and error correction
  • Versatile connectivity options, including 2x RJ45 and 2x USB-A 3.2 Gen 1.

Key specifications

Number of rack units
1 U
Processor family
Xeon E
Max. number of hard disks
6
Number of processors
1 x
RAM
16 GB
Operating system
No operating system
Item number
54089946

General information

Manufacturer
Dell
Category
Servers
Manufacturer no.
964FM
Release date
20.1.2025

Hardware form factor

Design
Rack Server
Number of rack units
1 U

Processor

Processor family
Xeon E
Number of processors
1 x
Number of processor sockets
1 x
Clock frequency
2.60 GHz
Number of threads
4
Number of processor cores
4 -Core
Max. turbo clock rate
4.50 GHz
Max. TDP
55 W
L3 Cache
12 MB

Motherboard properties

Socket
LGA 1700

Memory

Memory type
DDR5 RAM
Max. memory slots
4
Memory configuration
1 x 16GB
RAM
16 GB
Max. RAM
128 GB
RAM speed
5600 MHz
RAM error correction
ECC
RAM buffer
Unbuffered

Data storage controller

RAID configuration
0110
Possible raid configuration
0110
Mass storage controller type
SAS

Hard drive slots

Max. number of hard disks
6
Storage capacity
1200 GB
Form factor
2.5"
Interface
SASSATA III

Internal interfaces

Expansion slot
PCI Express x16 (Gen 4) (1x)PCI Express x8 (1x)
PCI express version (max.)
4

External interfaces

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x)USB-A 3.2 Gen 1 (2x)
Connectivity
USB

Network

Network connections
RJ45 (2x)
Ethernet controller
broadcom 5720
Ethernet controller brand
Broadcom
Max. port speed
1000 Mbit/s

Graphics card properties

Graphics card model
Matrox G200e

Video connections

Video connections
VGA (1x)

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
No operating system
Processor design
64-bit

Mains supply properties

Number of power supply units
1 x
Power
700 W
input voltage
200 - 240 V
Max. number of power supply units
1

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
496.80 mm
Width
482 mm
Height
42.80 mm
Weight
9.61 kg

30-day right of return
36 Months Warranty (On-Site)
