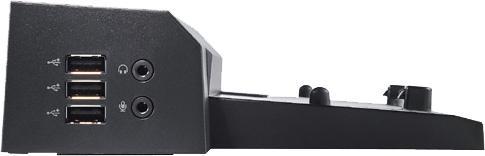

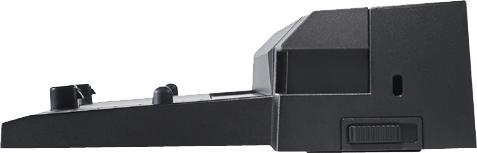

Dell Port Replicator E-Port II 240W
Docking port (proprietary), 1 PortsProduct details
Key Features: A space-saving port replicator for home and office environments that enables connection to peripherals. Supports docking and undocking. Supports digital monitors.
Dimensions (H x D x W): 53.7 x 170 x 200 mm (2.11 x 6.69 x 7.87 inches)
Weight: 0.78 kg (1.72 lb)

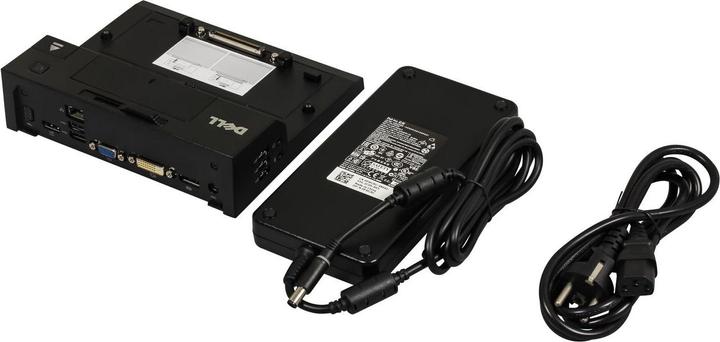

Power Supply: External 240W power adapter (Dell Latitude)

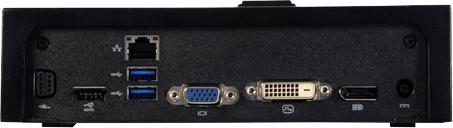

Video Ports: VGA, DisplayPort, DVI-D
Connections: USB, combined eSATA/USB port, RJ-45, audio and microphone, security lock slot, monitor stand connection for E-series
Maximize your workspace with the Dell™ Advanced Port Replicator. The replicator provides convenient cable management, eliminating the need to reconnect peripherals every time you return to your desk. Additionally, with support for dual flat-panel monitors, you gain more flexibility and an expanded view. This product has been tested and validated for use with your Dell system and is compatible with Dell Latitude notebooks. Technical support from Dell is available for this product if used with a Dell system.
USB 3.0: Features new, faster USB 3.0 technology enabled by Intel's Ivy Bridge. Replace the two USB 2.0 ports on the back with USB 3.0 ports. The platform must support USB 3.0 to be activated at the docking station (otherwise, the port supports 2.0).
DisplayPort 1.2: Allows for daisy chaining of displays (4 displays through one port). Activated only with a separate graphics card on current generation Latitude notebooks.
No BIOS/SW/HW impact on older Latitude E-series notebooks.
Type | Docking stations |
Main connection | Docking port (proprietary) |
Exact USB ports | USB-A 2.0 (1x) |
Video connections | DisplayPort (1x), DVI-D (1x), VGA (1x) |
Network connections | RJ45 (1x) |
Audio Connections | Headphone output (1x), Microphone |
Item number | 21163800 |
Manufacturer | Dell |
Category | Docking stations + USB hubs |
Manufacturer no. | 452-11514 |
Release date | 13.6.2022 |
Colour | Black |
Type | Docking stations |
Number of ports | 1 Ports |
Equipment + functions | Notebook lockable |
Compatible notebook models | M4600, M6600, Precision M4700, Precision M6700 |
Compatible brands | Dell |
Main connection | Docking port (proprietary) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Data ports | PS/2 (1x) |
Video connections | DisplayPort (1x), DVI-D (1x), VGA (1x) |
DisplayPort version | 1.2 |
Network connections | RJ45 (1x) |
Audio Connections | Headphone output (1x), Microphone |
Charging power | 240 W |
Country of origin | Japan |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Dell fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 20 cm |
Width | 17 cm |
Height | 5.37 cm |
Weight | 780 g |
