Deepcool AK500 Digital WH

160 mm
Delivered between Wed, 28.5. and Tue, 3.6.
Only 4 items in stock at supplier

Product details

AK500 Digital WH

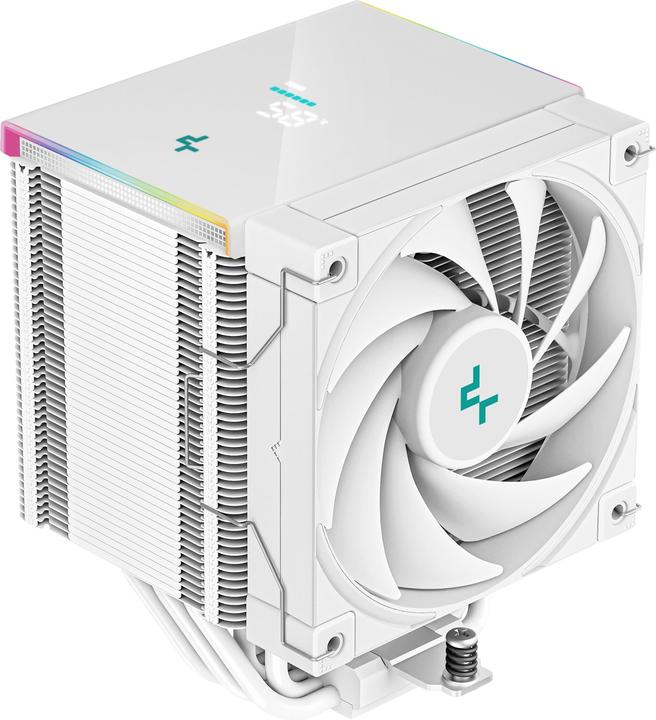

The era of digital air coolers has arrived, and DeepCool is proud to introduce the AK500 Digital WH. Everything you loved about the AK500 WH is combined with a sleek, magnetic status display and ARGB LED strips.

Welcome to the digital age

Real-time status display

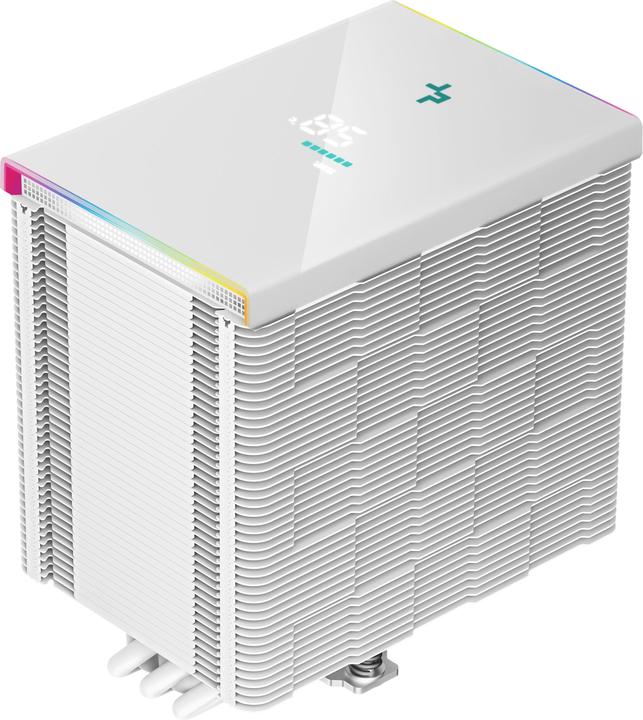

The crystal-clear digital screen shows the temperature and CPU load of the system in real time and warns of excessive temperatures. The display is controlled via a simple application that requires only a free USB 2.0 port.

Proven AK WH design

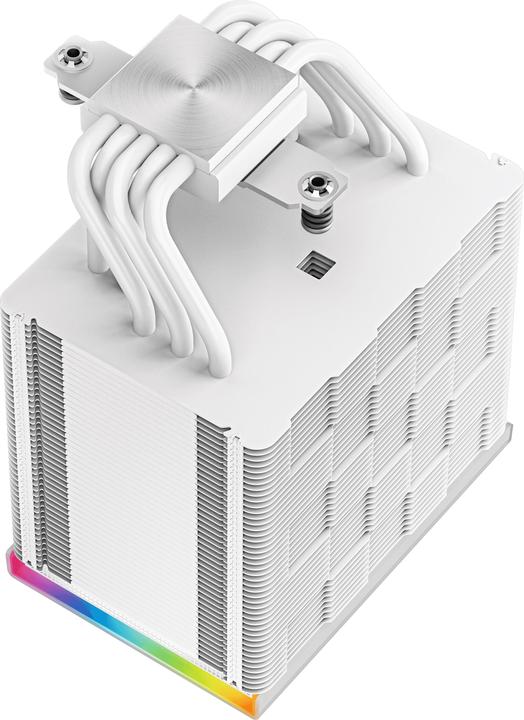

A completely white variant of the highly compatible AK500 CPU cooler features an offset direct contact design, a wide-tower layout with five heat pipes, a unique white matrix fin design, and a high-performance FDB fan that provides excellent heat dissipation and an extremely low noise level.

Top-notch cooling
The exceptional cooling performance of the AK500 Digital WH on modern CPUs makes it the perfect choice for mainstream systems that require an impressive price-performance ratio in a compact size.

Cool, quiet, and powerful

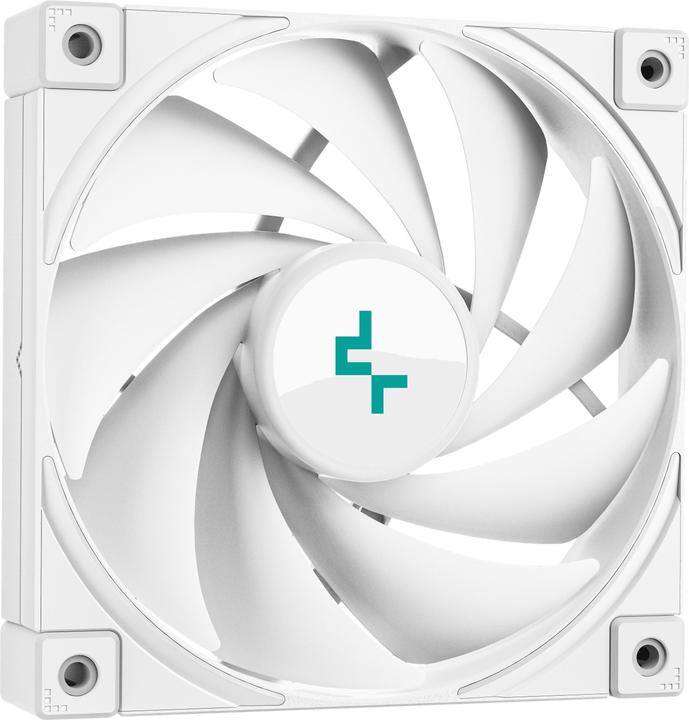

Achieve high-performance cooling with minimal noise thanks to the high-performance FK120 fan, which maximizes airflow and static pressure as needed and intelligently downshifts for quiet efficiency.

Excellent DRAM compatibility
The angled, offset heat pipe design provides unobstructed access to the DIMM slots for better compatibility with tall heat spreaders and also showcases any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45 mm.

Key specifications

Socket
AM4AM5LGA 1150LGA 1151LGA 1155LGA 1200LGA 1700LGA 2011LGA 2011-v3LGA 2066
Height (with fan)
160 mm
Diameter
120 mm
power connector
4-pin PWM
Number of fans
1 x
Item number
40051146

General information

Manufacturer
Deepcool
Category
CPU coolers
Manufacturer no.
R-AK500-WHADMN-G
Release date
14.11.2023

Colour

Colour
White
Exact colour description
White

Cooler properties

CPU cooler design
Single Tower
Fan type
Standard
Socket
AM4AM5LGA 1150LGA 1151LGA 1155LGA 1200LGA 1700LGA 2011LGA 2011-v3LGA 2066
Supported fan sizes
120mm

Heat sink properties

Number of heatpipes
5
Diameter heat pipe
6 mm
Materials radiator core
Copper
Material cooling fins
Aluminium

Fan dimensions

Diameter
120 mm
Length
127 mm
Width
120 mm
Height
160 mm
Weight
1290 g

Fan properties

Number of fans
1 x
Max. Speed
1850 RPM
Airflow
117.20 m³/h
Static pressure
0.22 Pa
Max. noise level
28 dB
LED colour
RGB

Connections

power connector
4-pin PWM

Power supply

Power consumption
1.44 W
Voltage
12 V

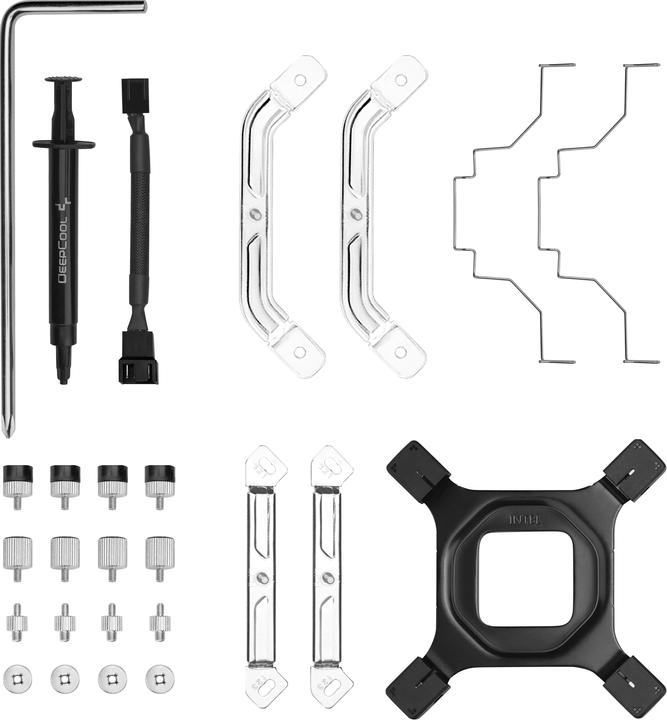

Scope of delivery

Scope of delivery
1x 120 mm fan

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
127 mm
Length (with fan)
127 mm
Height (with fan)
160 mm
Weight
1290 g

Package dimensions

Length
22.10 cm
Width
17 cm
Height
17.60 cm
Weight
1.59 kg

30-day right of return
24 Months Warranty (Bring-in)
