Corsair Force MP500

480 GB, M.2
1Ratings
Test reportsGood based on 4 tests
Currently out of stock

Product details

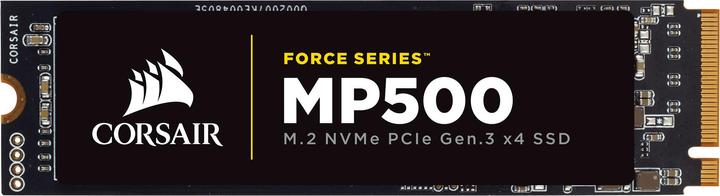

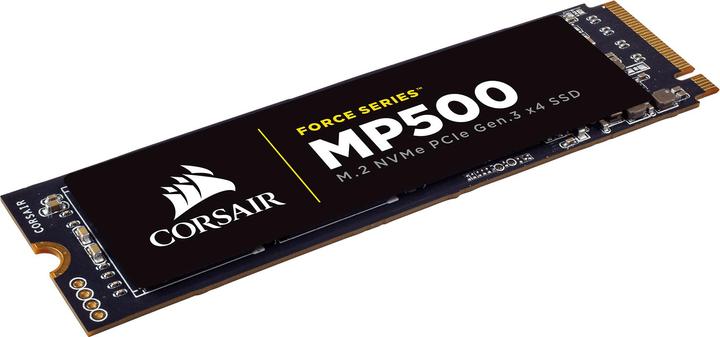

Build smaller, perform faster. CORSAIR Force MP500 series M.2 SSDs deliver high performance, quick system boot ups, blazing fast transfer speeds, and ultimate reliability in a compact form factor.

NVMe PCI Express SSD 3.0 x4 interface. The CORSAIR NVMe PCIe boosts blazing fast bandwidth, allowing you to access your data, load files, and launch games with speeds up to 4x faster than SATA 3.0.

Static and dynamic wear-leveling. Additional protection to enhance reliability and extend the life of the drive.

CORSAIR SSD Toolbox Application. Monitor S.M.A.R.T attributes and SSD health status with support for over-provisioning, secure wipe, disk cloning, firmware update, and more.

Compact M.2 2280 form factor. CORSAIR NVMe M.2 SSD enables a new level of performance in a compact form factor.

Toughened contact surface material. 30um gold finger thickness improves contact to the motherboard and provides vibration resistance to ensure reliability in vigorous conditions.

Enhanced error correction. Additional error bit correction and improved data retention while supporting the latest generation NAND.

Leave SATA SSDs in the dust. The CORSAIR NVMe PCIe boosts bandwidth, allowing you to access all of your data, load files, and launch games with speeds up to 4x faster than SATA 3.0.

Compact size without compromise. CORSAIR NVMe M.2 SSDs enable a new level of performance in a compact form factor. Select from 120GB, 240GB, and 480GB sizes.

Faster response and reliability. Additional protection to enhance reliability and extend the life of the drive. Support for over-provisioning, secure wipe, disk cloning, firmware update, and more.

Additional error bit correction and improved data retention while supporting the latest generation NAND. Work and play knowing you’re backed by CORSAIR's 3-year warranty.

Key specifications

SSD type
M.2 SSD
Interface
M.2 Key M
Protocol
NVMe
Write transfer speed
1500 MB/s
Read transfer speed
2800 MB/s
Max. random 4K read
250000 IOPS
Max. random 4K write
210000 IOPS
Item number
6037137

General information

Manufacturer
Corsair
Category
SSD
Manufacturer no.
CSSD-F480GBMP500
Release date
12.12.2016
External links
Manufacturer's site (de)

Data storage properties

SSD type
M.2 SSD
Form factor
M.2
Storage capacity
480 GB
Interface
M.2 Key M
Protocol
NVMe
Read transfer speed
2800 MB/s
Write transfer speed
1500 MB/s
Memory type (NAND)
MLC
Max. random 4K read
250000 IOPS
Max. random 4K write
210000 IOPS
Max. TBW
640 TB
SSD Features
SMART Support

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
2.20 cm
Width
8 cm
Height
0.35 cm
Weight
82 g

Package dimensions

Length
12.70 cm
Width
7.60 cm
Height
1.40 cm
Weight
30 g
