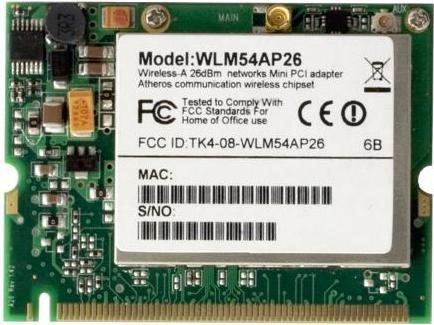

Compex WLM54AP2 - WLM54AP26 400mW WLAN card 802.11a Super-A

The Compex WLM54A-26dBm (WLM54AP26) miniPCI network adapter offers a high output power of 400 mW, enabling extended wireless coverage. Combined with excellent receiver sensitivity, the WLM200N5-26dBm is the miniPCI wireless card solution for long distances or bridging scenarios where the signal level is reduced due to minor obstacles like trees or buildings. The WLM54A-26dBm supports the Super A mode, which delivers better performance with higher throughput for your network connection.

Based on Atheros chipsets, the Compex WLM54A-26dBm miniPCI network adapter is compatible with all IEEE 802.11a WLANs in the 5 GHz band. It is ideal for integration into a variety of OEM devices.

Features:

• 5 GHz IEEE 802.11a WLAN standard
• High output power up to 26 dBm
• Dynamic Frequency Selection (DFS)
• Supports proprietary Super Mode with data transfer rates up to 108 Mbps
• WLAN encryption and authentication supported
• Transmit Power Control (TPC)
• Extended range and higher speeds through improved output signal performance
• High performance with lower power consumption
• Roaming support for many countries (IEEE802.11d)
• MMCX (main), U.FL (aux) antenna connectors
• Suitable for embedded systems or OEM projects
• Cost-effective and ideal for a variety of applications

Chipset: Atheros AR5414
Interface: PCI Interface v 2.3 (Type III-B Mini PCI form factor)
Power Supply: 3.3 VDC
Power Consumption: 5 W
Antenna Connectors: MMCX (main), U.FL (aux)
IEEE 802.11a Standards: 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps
Super-A: 108 Mbps, 96 Mbps, 72 Mbps, 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 6 Mbps
Frequency Range IEEE 802.11a: 5.150 ~ 5.350 GHz, 5.470 ~ 5.725 GHz, 5.725 ~ 5.850 GHz (USA and Canada), 5.150 ~ 5.350 GHz, 5.470 ~ 5.725 GHz, 5.725 ~ 5.875 GHz (Europe).
