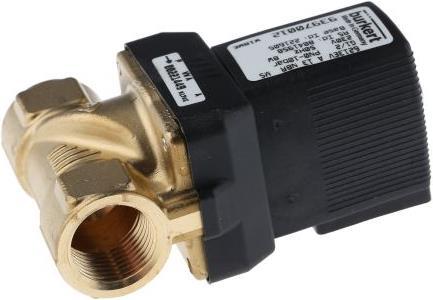

Bürkert 1/2" Solenoid valve 13 mm orifice 230VAC

Supply voltage: 230 V AC
Number of connections: 2
Operation: Control
Connection: G1/2, female thread
Connection size: 1/2 inch
Valve position standard: NC contact
Areas of application: Liquid
Type: 2/2
Valve opening: 13 mm
Housing material: Brass
Operating pressure max: 10 bar
Operating temperature range: -10 to +80 °C
Minimum operating temperature: -10 °C
Maximum operating temperature: +80 °C
Thread fitting type: G

Due to their internal complexity, these valves can only be used with clean, neutral media. Electrical connectors can be ordered separately. This solenoid valve series DS6213-EV is a 2/2 brass valve. It is a new series of 2-way solenoid valves designed as normally closed contacts from Burkert. Made of brass, it is suitable for use with water and inert liquids and gases. A soft mechanical coupling between the main piston and the pilot armature assists soft actuation, while the precision-engineered main housing path contributes to quiet, water hammer-free operation. It is suitable for a wide range of applications including compressed air and vacuum systems, heating and air conditioning, water treatment, and swimming pool technology. Its compact size simplifies installation in confined spaces. The operating pressure ranges from 0 to 10 bar with a response time of 0.1 to 4 seconds. It opens without differential pressure, requiring a minimum pressure differential of 0.5 bar for full opening, and features a high flow rate. The sealed coil has a protection class of IP65.
