Brodit Device holder 215453 Made IN Sweden Mounting accessories - universal use
Product details

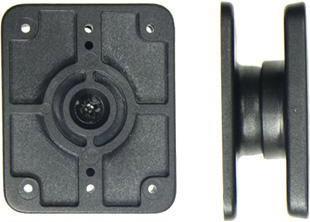

Main plate with ball joint, holes for AMPS standard. Can be angled 20° in any direction. Warning! Please read the instructions carefully before installation. This product is designed to be mounted on the ProClip mounting platform.

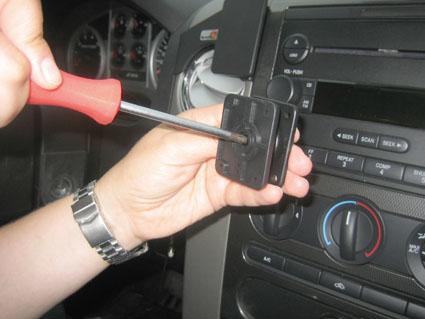

1. Loosen the screw so that the product consists of two parts: the main plate with pre-drilled holes and the mounting part (the smallest piece).

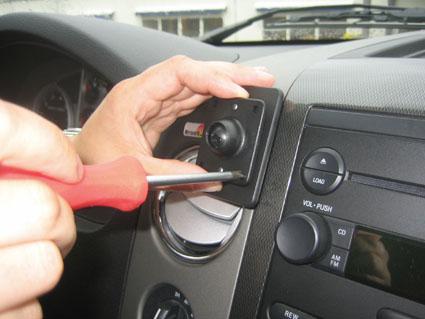

2. Attach the mounting part to the ProClip using the supplied screws.

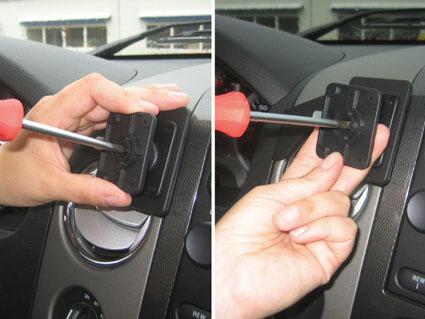

3. Position the mounting piece so that the screw goes into the hole of the ball joint. Tighten the screw slightly, just enough to secure it. Pull the bracket and hold it slightly taut while tightening the screw, so that the bracket sits on the ball joint. Tighten the screw until the bracket is properly in place and can be adjusted.

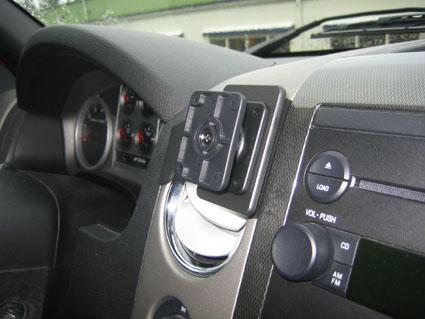

4. The product is mounted. Caution: It will become easier or harder to tilt or rotate the main plate depending on how tightly the screw is tightened.
