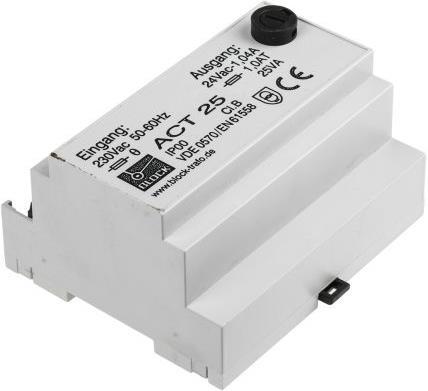

Block Transformer DIN-rail 25VA 24V

Ratings
BrandMore from Block
Delivered between Wed, 6.5. and Thu, 7.5.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Performance2

Product details

Primary nominal voltage: 230V AC
Secondary nominal voltage: 24V AC
Nominal power: 25VA
Number of outputs: 1
Length: 106mm
Width: 94mm
Depth: 63mm
Dimensions: 106 x 94 x 63mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Maximum temperature: +40°C
Weight: 950g

Safety transformers of the ACT series. Short-circuit proof safety transformers, encapsulated in resin. Robust plastic housing. Integrated fuse and over-temperature protection as safeguards against overload and short circuit. Screw terminals for connecting wires to input and output. Complies with the requirements of IEC61558, EN61558, and VDE0570. Insulation class B. Design class 2. Insulation: 3750V (Primary to Secondary).

Key specifications

transformer type
Variable transformer
input voltage
230 V
Output voltage
24 V
Electric current
1.04 A
Power
25 W

General information

Item number
9944152
Manufacturer
Block
Category
Transformer
Manufacturer No.
ACT25
Release date
22.10.2018
Sales rank in Category Transformer
2 of 1413

Transformers + Coils Features

transformer type
Variable transformer

Power supply

input voltage
230 V
Output voltage
24 V
Electric current
1.04 A
Power
25 W

Voluntary climate contribution

CO₂ emissions
4.43 kg
Climate contribution
CHF 0.11

Product dimensions

Length
106 mm
Width
94 mm
Height
63 mm
Weight
950 g
