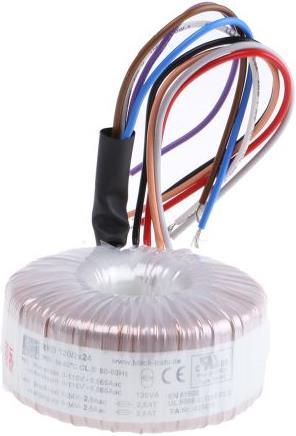

Block Toroidal Transformer 2x24V 120VA

Primary nominal voltage: 115V AC, 230V AC
Secondary rated voltage: 2 x 24V AC
Rated power: 120VA
Number of outputs: 2
Weight: 1.4kg
Diameter: 94mm
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz
Connection type: Cable
Temperature max.: +40°C

Mounting kit included. RKD toroidal transformers feature a dual 115V AC input. These high-quality open-type toroidal transformers come with dual 115V AC, 50/60Hz primary and secondary windings that can be connected individually, in series, or in parallel as needed. They are compact and lightweight compared to traditional laminated stack designs, with very low magnetic emission, very low induced noise (hum), and very low iron loss. Insulation class B.
