Product details
Primary rated voltage: 115 V AC, 230 V AC
Secondary rated voltage: 115 V AC, 220 V AC, 230 V AC, 240 V AC
Construction type: Closed
Mounting type: Front panel mounting
Connection type: Screw
Length: 283 mm
Dimensions: 283 x 200 x 165 mm
Depth: 200 mm
Operating frequency min.: 50 Hz
Temperature min.: -20°C
Temperature max.: +40°C
Secondary rated current: 5.0 A, 10 A

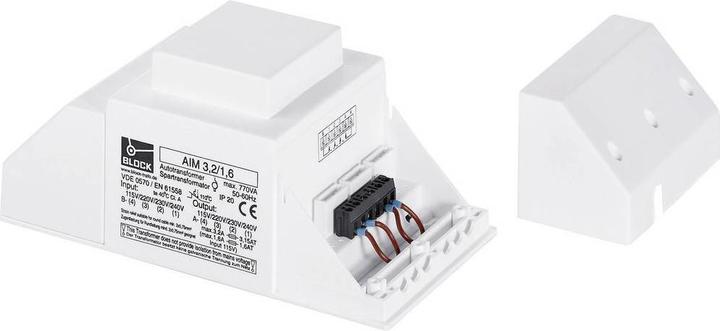

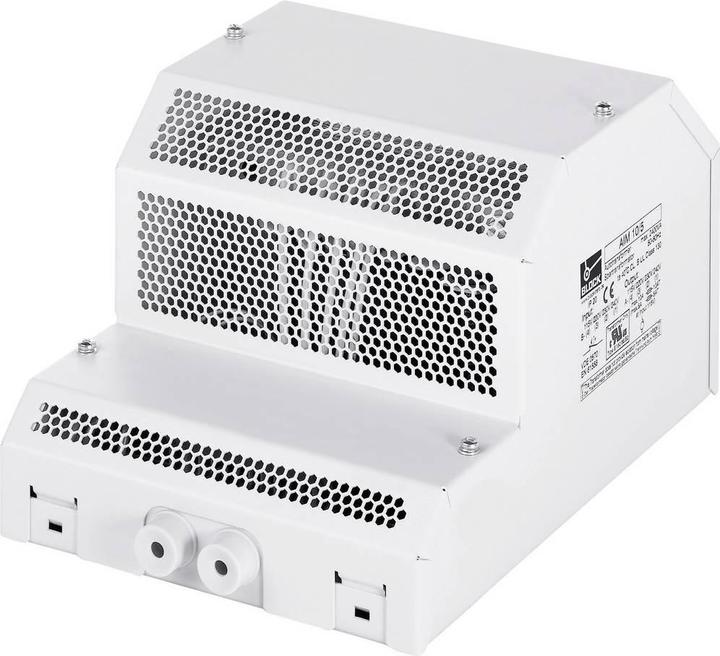

The mains connection of these units is not isolated. Encapsulated Up/Down, AIM Series. These short-circuit proof, self-wound, encapsulated transformers from Block provide step-up and step-down regulation of line voltage at 50/60 Hz. Features mounting holes for easy installation, screw terminal connections with strain relief for connecting cables, ensuring a rugged and reliable setup. Protection against thermal overload and integrated fuse protection: transformers tested according to EN 61558, VDE 0570.
