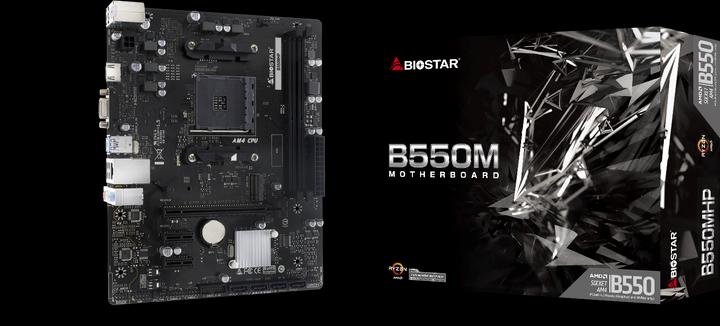

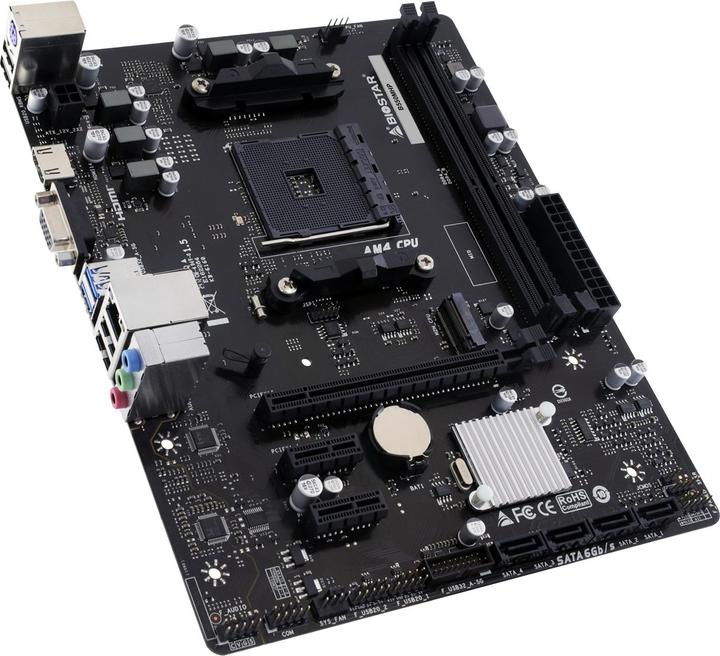

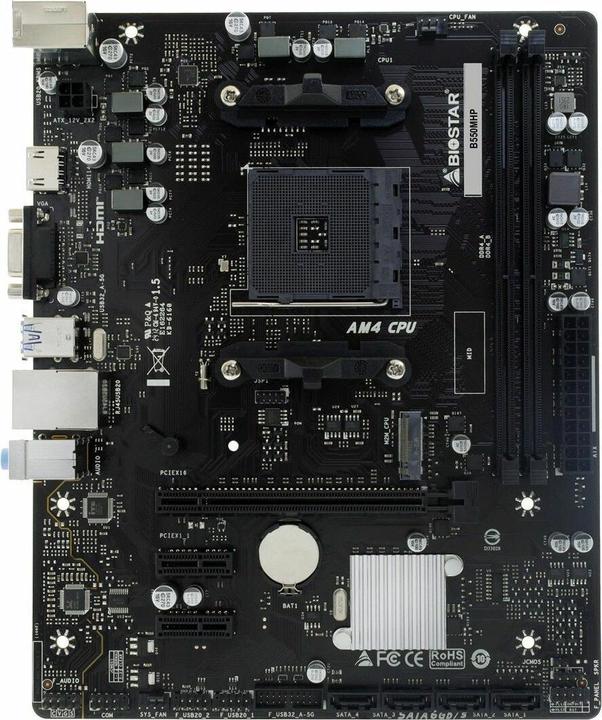

The Biostar B550MHP is based on the AMD B550 chipset and supports AMD processors for the AM4 socket. It has two DDR4 slots for up to 64 GB of RAM. The Biostar B550MHP is also equipped with one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. The Biostar B550MHP also has 8-channel sound, a Gigabit LAN interface, four SATA3 ports, one M.2 port and a range of USB interfaces.
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Item number | 52727113 |
Manufacturer | Biostar |
Category | Motherboards |
Manufacturer no. | B550MHP |
Release date | 5.11.2024 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B550 |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
Processor family | Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 4400 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4400 MHz |
Transfer rate | 3200 MT/s |
Memory type | DDR4-RAM |
Video connections | HDMI (1x), VGA (1x) |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Out (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (1x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (3x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x) |
Power connectors | 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 27 cm |
Width | 22 cm |
Height | 7 cm |
Weight | 560 g |
