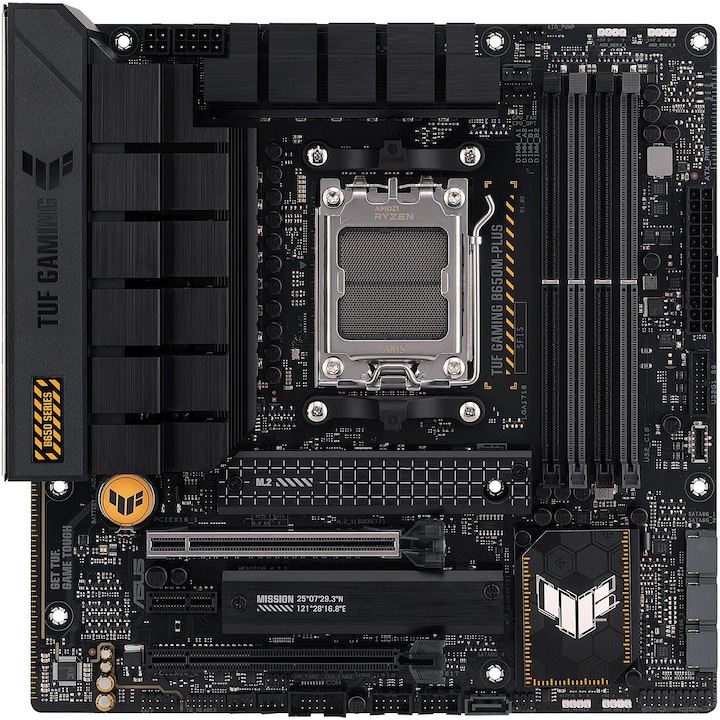

ASUS Tuf B650M-Plus
AM5, AMD B650, mATXtomorrow with flash delivery
to check if flash delivery is available to you.
Product details
The ASUS Tuf B650M-Plus combines all the essential elements of the latest AMD Ryzen 7000 series processors with gaming-grade features and proven durability. Equipped with military-grade components, an enhanced power solution and a comprehensive cooling system, this motherboard exceeds expectations with rock-solid and stable performance for marathon gaming. Tuf Gaming motherboards also undergo rigorous endurance testing to ensure they perform in conditions where others might fail. Aesthetically, this model features robust black and geometric design elements that reflect the reliability and stability of the Tuf Gaming range.
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | 24-pin ATX power connector (1x), 4-pin ATX 12V (1x), 4-pin CPU (1x), 4-pin Molex (3x), 8-pin ATX 12V (1x) |
Mainboard features | Clear CMOS Button, COM Port Header, RGB header, S/PDIF header, Thunderbolt header |
Item number | 22605352 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1BG0-M0EAY0 |
Release date | 22.9.2022 |
Sales rank in Category Motherboards | 128 of 986 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Clear CMOS Button, COM Port Header, RGB header, S/PDIF header, Thunderbolt header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6400 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

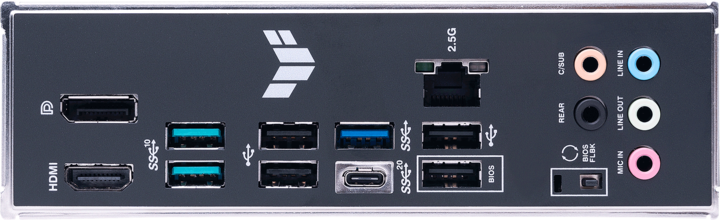

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | 24-pin ATX power connector (1x), 4-pin ATX 12V (1x), 4-pin CPU (1x), 4-pin Molex (3x), 8-pin ATX 12V (1x) |
Expansion slot | PCI Express x16 (2x), PCI Express x4 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-C 3.2 Gen 1 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x M.2 rubber spacers, 2 x Serial ATA cable, M.2 screw package |
Length | 244 mm |
Width | 244 mm |
Height | 277 mm |
Weight | 300 g |
Length | 28.40 cm |
Width | 28.30 cm |
Height | 7.40 cm |
Weight | 1.54 kg |
