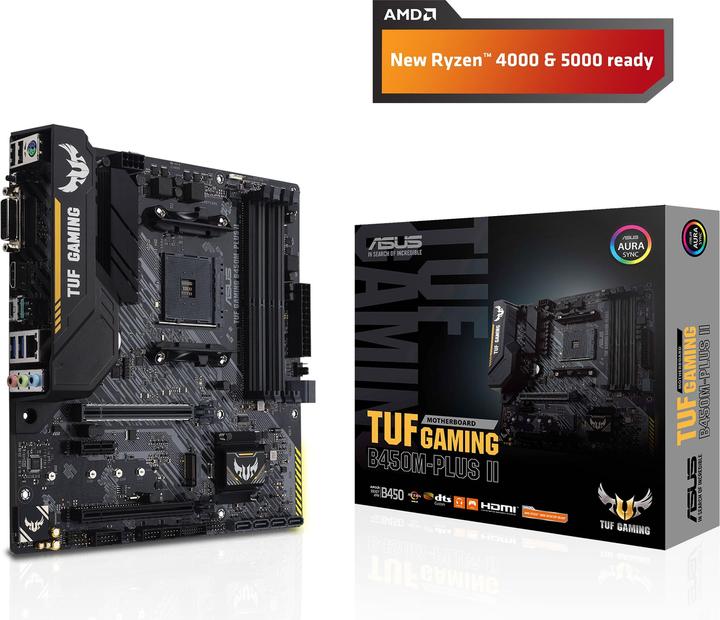

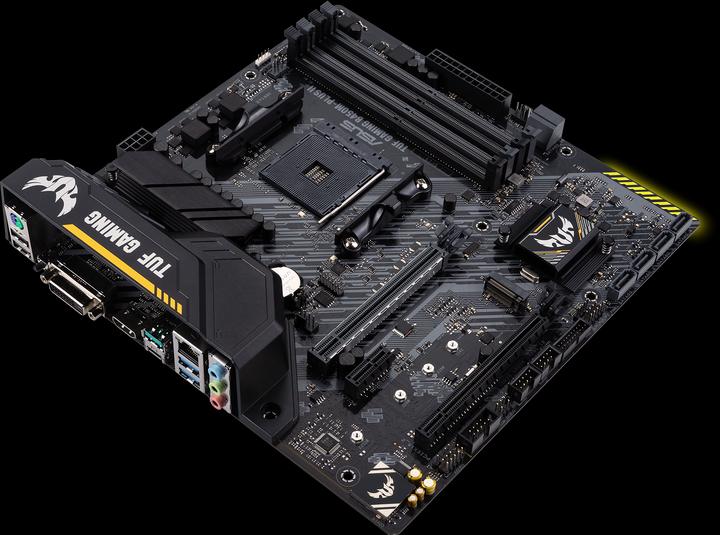

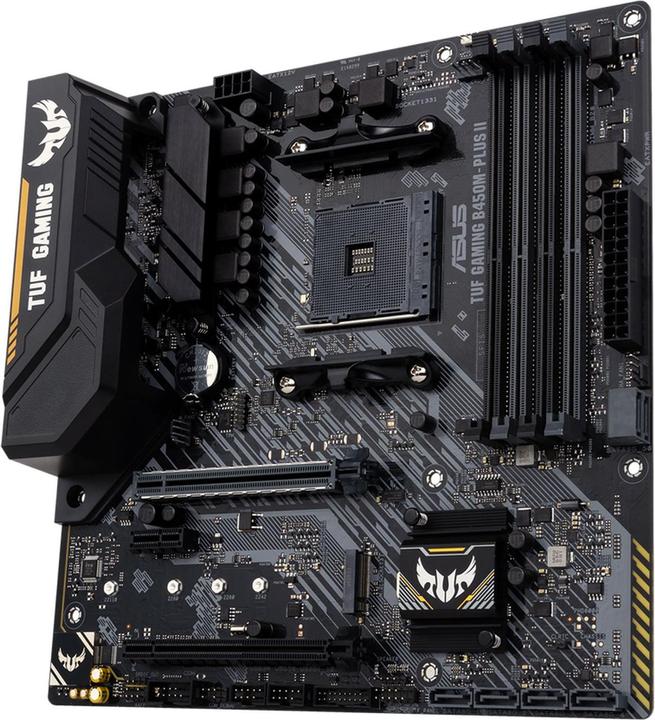

ASUS TUF B450M-Plus II Gaming
AM4, AMD B450, mATXMore than 10 items in stock at supplier
Product details
Durable. Stable. Reliable.TUF gaming motherboards are purposefully designed and tested to perform in conditions that would challenge other boards. Engineered with military-grade components, enhanced power supplies and a comprehensive range of cooling options, the motherboard delivers top-notch performance with unwavering in-game stability.When you assemble a system with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted partner companies that guarantee their hardware is easy to assemble, optimally compatible and looks the part, from components to chassis.Multiple Temperature SourcesFor load-based cooling, each port can be assigned two user-configurable temperature sensors that it monitors and responds to - all easily set via Fan Xpert 2+.
Processor family | Ryzen 3 4th Gen, Ryzen 3 5th Gen, Ryzen 5 4th Gen, Ryzen 5 5th Gen, Ryzen 7 4th Gen, Ryzen 7 5th Gen, Ryzen 9 4th Gen, Ryzen 9 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (1x), S-ATA III (6x) |
Mainboard features | Clear CMOS Button, Front panel audio connector, Onboard processor, RGB header, Trusted Platform Module |
Item number | 14007352 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1620-M0EAY0 |
Release date | 7.10.2020 |
Sales rank in Category Motherboards | 97 of 993 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Onboard processor, RGB header, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 7 |
BIOS type | UEFI AMI |
Processor family | Ryzen 3 4th Gen, Ryzen 3 5th Gen, Ryzen 5 4th Gen, Ryzen 5 5th Gen, Ryzen 7 4th Gen, Ryzen 7 5th Gen, Ryzen 9 4th Gen, Ryzen 9 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2666 |
Max. RAM OC | 4400 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code, Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.0b |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (1x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Power connectors | 20+8 pin ATX, 24-pin EATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 259 mm |
Weight | 849 g |
Length | 27.10 cm |
Width | 26.50 cm |
Height | 12.30 cm |
Weight | 1.05 kg |
