ASUS ROG STRIX Z890-I GAMING WIFI

LGA 1851, Intel Z890, Mini-ITX
2Ratings
BrandMore from ASUS
Delivered between Mon, 26.5. and Mon, 2.6.
More than 10 items in stock at third-party supplier
Supplied by
ASUS DE

Product details

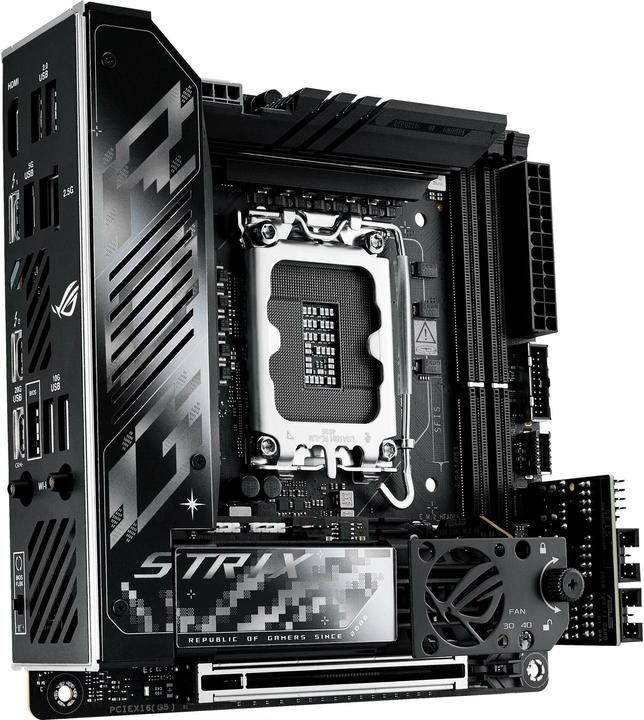

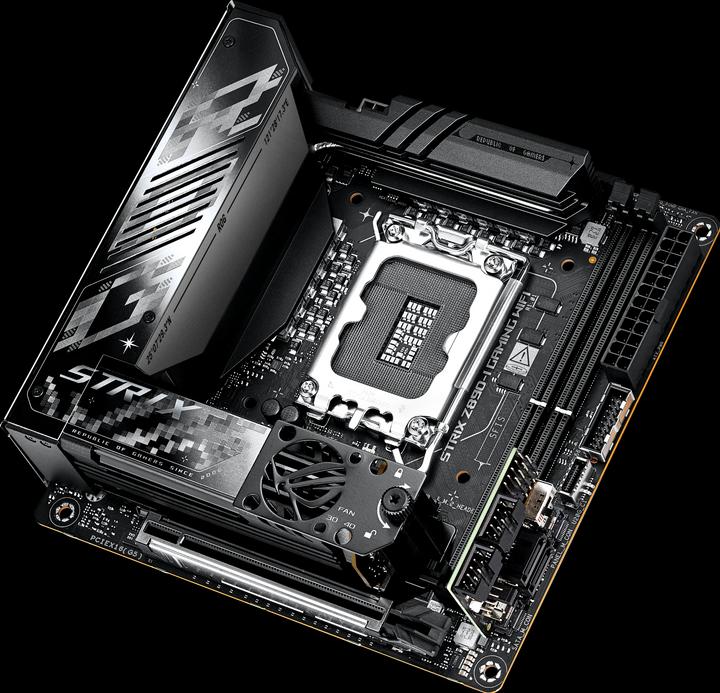

The ASUS ROG STRIX Z890-I GAMING WIFI motherboard is equipped with the Intel Z890 chipset and designed for LGA 1851 socket processors. It is fully AI-PC ready, providing excellent performance for AI applications and demanding computing needs.

Features:

The ASUS ROG STRIX Z890-I GAMING WIFI motherboard supports Intel Core Ultra processors (series 2), has a Mini-ITX form factor (17 cm x 17 cm), and offers dual-channel DDR5 memory support with a maximum capacity of 96GB. It includes numerous connectivity options, including Intel 2.5Gb Ethernet, Wi-Fi 7, Bluetooth v5.4, and advanced audio features with the ROG High Definition Audio CODEC ALC4050.

Expansion Slots:

The motherboard includes 1 PCIe 5.0 x16 slot supporting Intel Core Ultra processors (series 2).

Storage Connectors:

There are 2 SATA 6Gb/s ports and 2 M.2 slots supporting PCIe 5.0 x4 mode for high-speed storage solutions.

Rear Panel Connections:

The rear panel features 2 Thunderbolt 4 (2 USB Type-C), 1 USB 20Gbps port (USB Type-C), 3 USB 10Gbps ports (Type-A), 1 USB 5Gbps port (Type-A), 2 USB 2.0 ports (Type-A), 1 HDMI port, 1 Wi-Fi module, 1 Intel 2.5Gb Ethernet port, and 1 BIOS FlashBack button.

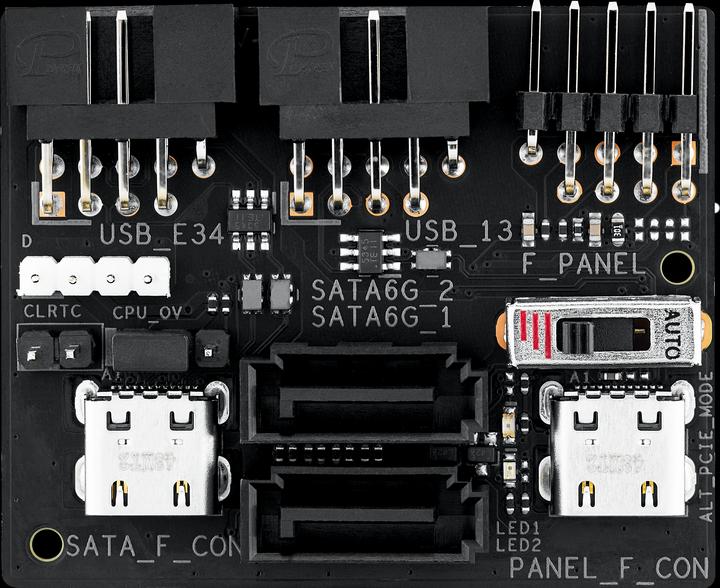

Internal Connections:

The internal header connections include a 4-pin CPU fan header, a 4-pin AIO pump header, a 4-pin chassis fan header, an extra flow fan header, and multiple power and storage-related connectors.

Key specifications

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
2 x
Internal connection options
M.2 PCIe (2x), S-ATA III (2x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button
Item number
50344132

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1IC0-M0EAY0
Release date
24.10.2024

Motherboard properties

Form factor
Mini-ITX
Socket
LGA 1851
Chipset
Intel Z890
Mainboard features
Clear CMOS Button
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be

Processor

Processor family
Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
2 x
Max. memory (RAM)
96 GB
Memory chip
DDR5-5600, DDR5-6400
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
HDMI (1x), Thunderbolt 4 (2x)
Video connection version
HDMI 1.4

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Intel
Ethernet controller
Intel I226-V
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC4050H

Data storage

RAID configuration
0, 1, 5

Internal interfaces

Internal connection options
M.2 PCIe (2x), S-ATA III (2x)
Expansion slot
PCI Express x16 (Gen 5) (1x)
PCI express version (max.)
5
Number of fan connector
2

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 2 (3x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Origin

Country of origin
Taiwan

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

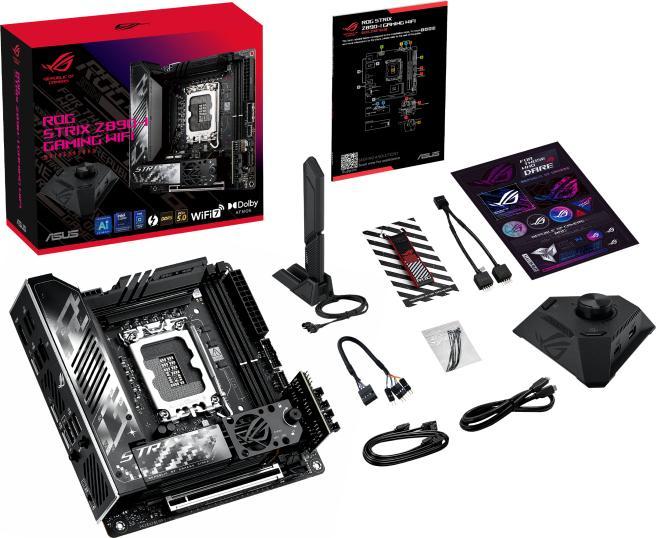

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
170 mm
Width
170 mm
Height
170 mm
Weight
1915 g

Package dimensions

Length
29.30 cm
Width
22.70 cm
Height
11.20 cm
Weight
1.89 kg
