ASUS ROG STRIX Z790-H GAMING WIFI

LGA 1700, Intel Z790, ATX
65Ratings
BrandMore from ASUS
Currently out of stock

Product details

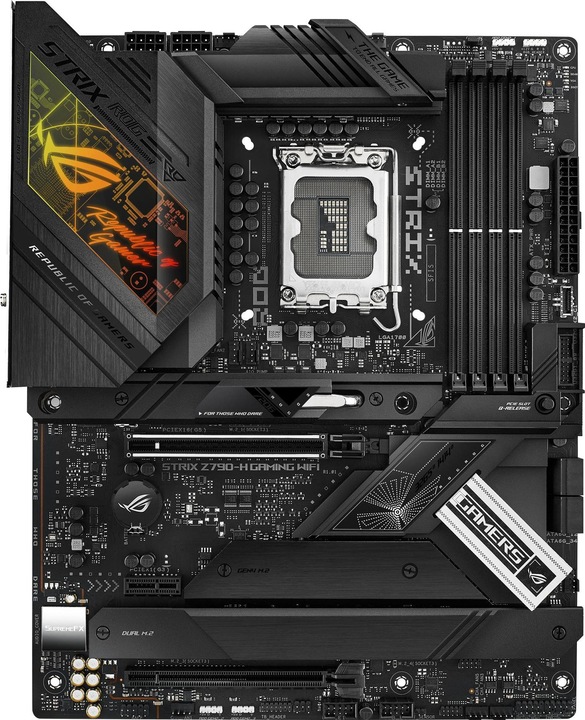

Strike stealthily with the powerful ROG Strix Z790-H. Thick black heatsinks keep the VRM temperatures in check, allowing Intel's 13th Gen processors to achieve higher boosts. There are four M.2 slots available, with the top slot featuring a combo heatsink for added cooling. PCIe 5.0 support is ready for next-generation graphics cards, and modern WiFi 6E along with USB 3.2 Gen 2x2 completes the connectivity options.

Key specifications

Processor family
Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCI/SATA Combo (1x), M.2 PCIe (3x), S-ATA (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header
Item number
23989181

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1E10-M0EAY0
Release date
9.3.2023
Sales rank in Category Motherboards
37 of 989
External links
Manufacturer's site (de)

Motherboard properties

Form factor
ATX
Socket
LGA 1700
Chipset
Intel Z790
Mainboard features
Clear CMOS Button, Front panel audio connector, RGB header, Thunderbolt header
Operating system compatibility
Windows 10, Windows 11 Home, Windows 11 Pro
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3 12th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
7200 MHz
Supported memory speed
4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC S1220A
Audio channel
7.1 Channel
Audio Connections
Digital Audio Out (5)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (1x), M.2 PCIe (3x), S-ATA (4x)
Expansion slot
PCI Express x1 (1x), PCI Express x16 (1x)
PCI express version (max.)
5
Number of fan connector
5

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (4x)

Power supply

Power connectors
24-pin ATX, 8-pin ATX 12V

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
305 mm
Width
244 mm
Height
244 mm
Weight
2350 g

Package dimensions

Length
36.30 cm
Width
27.50 cm
Height
7.60 cm
Weight
2.28 kg

30-day right of returnReturn policy
36 Months Warranty (Bring-in)Warranty provisions
