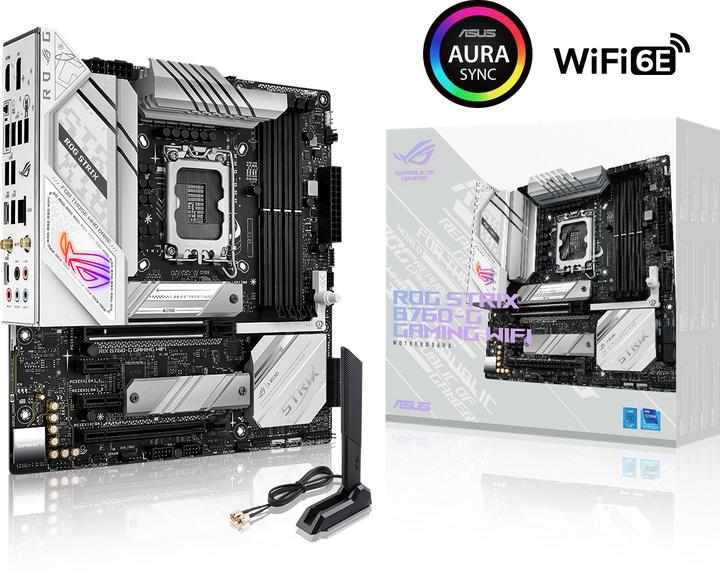

ASUS ROG STRIX B760-G GAMING WIFI
LGA 1700, Intel B760, mATXtonight with flash delivery
to check if flash delivery is available to you.
Product details
The ASUS ROG STRIX B760-G GAMING WIFI is a motherboard for desktop computers designed for gaming enthusiasts. It features the Intel B760 chipset and supports Intel Core processors from the 8th and 9th generations.
The motherboard has 4 DIMM slots that support DDR4 memory with speeds of up to 2666 MHz. It can accommodate up to 64 GB of RAM, which is sufficient to handle even the most demanding applications and games.
It offers multiple connections, including 2 PCIe 3.0 x16 slots, 2 PCIe 3.0 x1 slots, and 2 M.2 slots for fast SSDs. Additionally, there are 6 SATA 6 Gbit/s ports to support traditional hard drives and SSDs.
Processor family | Celeron, Pentium M |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 25066635 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1EQ0-M0EAY0 |
Release date | 2.3.2023 |
Sales rank in Category Motherboards | 150 of 989 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Pentium M |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5-7800 |
Supported memory speed | 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz, 7800 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | SupremeFX S1220A |
Audio channel | 7.1 Channel |
Audio Connections | HDMI (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
USB ports | Thunderbolt 3, USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x) |
Power connectors | 20+8 pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Weight | 1785 g |
Length | 28.60 cm |
Width | 27.70 cm |
Height | 7.40 cm |
Weight | 1.77 kg |
