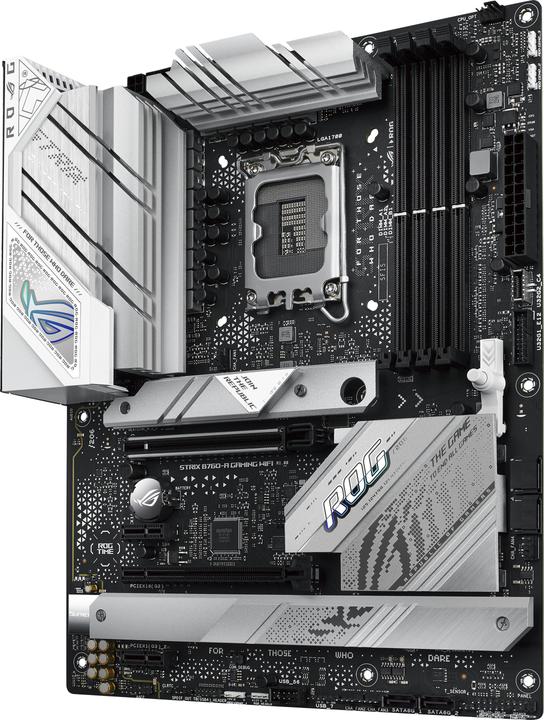

ASUS ROG STRIX B760-A GAMING WIFI
LGA 1700, Intel B760, ATXDelivered tomorrow
6 items in stock
6 items in stock
Product details
Just like its impressive sibling, the ROG Strix B760-A Gaming WiFi offers a vibrant interpretation of the Intel platform with PCIe 5.0, USB 3.2 Gen 2x2, and cyber-inspired ROG motifs on a high-contrast background. This variant features DDR5, providing even more bandwidth for gaming and applications.
Processor family | Celeron, Core i3, Core i7 14th Gen, Pentium Gold |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 25259816 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1EP0-M0EAY0 |
Release date | 2.3.2023 |
Sales rank in Category Motherboards | 151 of 975 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3, Core i7 14th Gen, Pentium Gold |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5-7200 |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 3) (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 4 |
USB ports | USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Power connectors | 20+8 pin ATX, 24-pin EATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 30 mm |
Weight | 1000 g |
Length | 36 cm |
Width | 28 cm |
Height | 7 cm |
Weight | 2.05 kg |
