Product details
The ASUS Prime series has been developed by experts to unleash the full potential of Intel's 10th generation Core processors. With a robust power supply, extensive cooling solutions, and intelligent tuning options, the Prime Z490 series motherboards offer a range of performance optimizations for regular users or PC builders, available through intuitive software or firmware features.
Processor family | Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (1x), S-ATA III (5x) |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Item number | 13128509 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB12W0-M0EAY0 |
Release date | 21.4.2020 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1200 |
Chipset | Intel Z490 |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 10 Home |
BIOS type | UEFI AMI |
Processor family | Core i3 10th Gen, Core i5 10th Gen, Core i7 10th Gen, Core i9 10th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3000, DDR4-3200 |
Max. RAM OC | 4400 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 3000 MHz, 3200 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

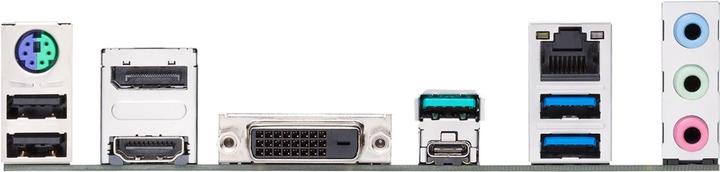

Video connections | DisplayPort (1x), DVI-D (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 1.4b |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Ethernet controller | I219V |
Max. port speed | 1 Gbit/s |
Chip | ALC887-VD2 |
Audio channel | 8.0 Channel |
Audio Connections | Jack 3.5mm (3x) |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (1x), S-ATA III (5x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (2x) |
PCI express version (max.) | 3 |
Number of fan connector | 3 |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin EATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Propeller |
Length | 244 mm |
Width | 244 mm |
Height | 244 mm |
Length | 27.50 cm |
Width | 5.50 cm |
Height | 27 cm |
Weight | 1.05 kg |
Specifications may include unverified machine translations.
