ASUS PRIME H610M-E D4-CSM

LGA 1700, Intel H610, mATX
Ratings
BrandMore from ASUS
Delivered between Sat, 28.6. and Wed, 2.7.
More than 10 items in stock at supplier

Product details

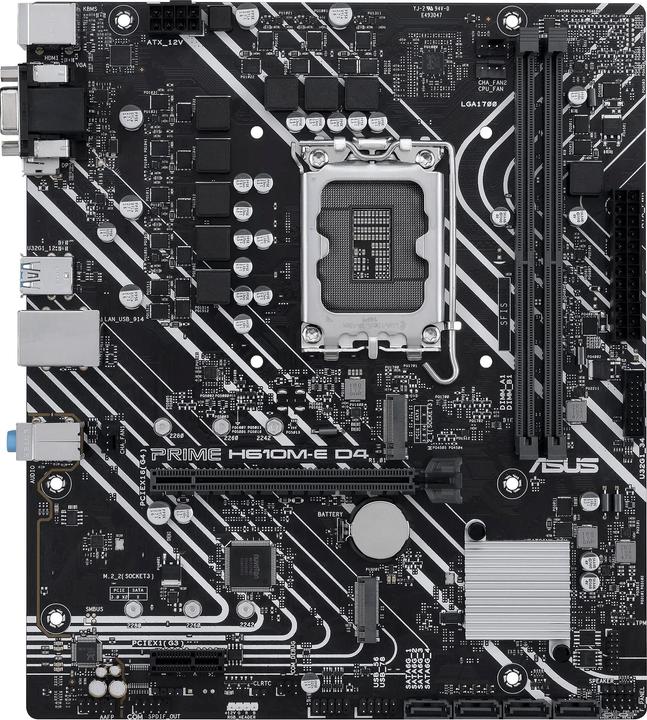

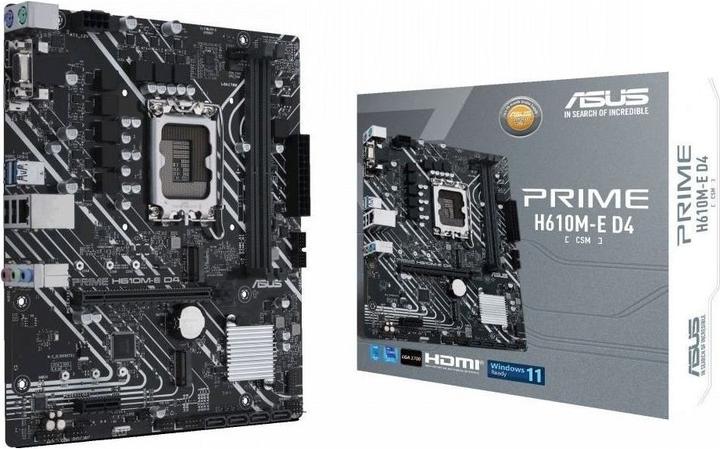

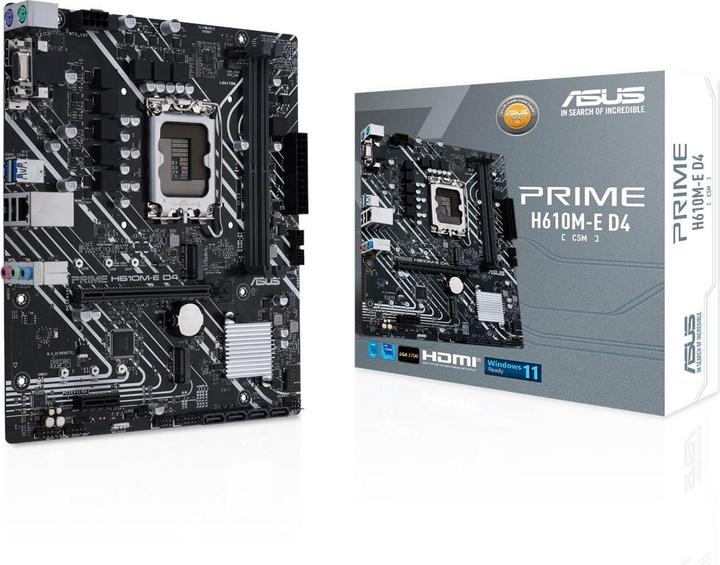

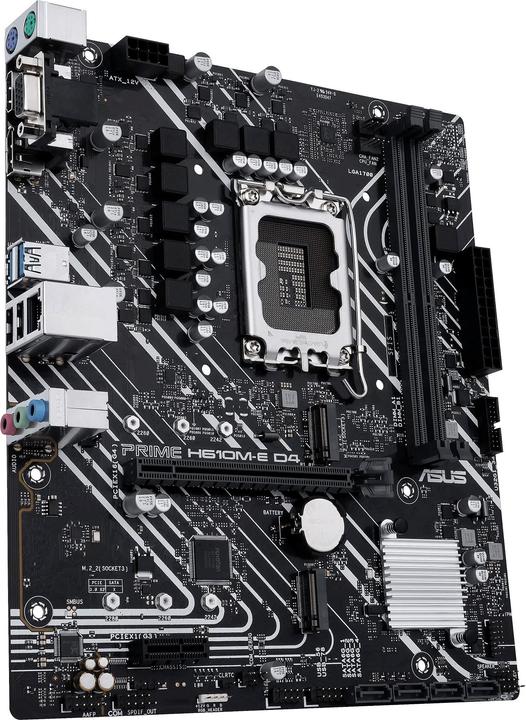

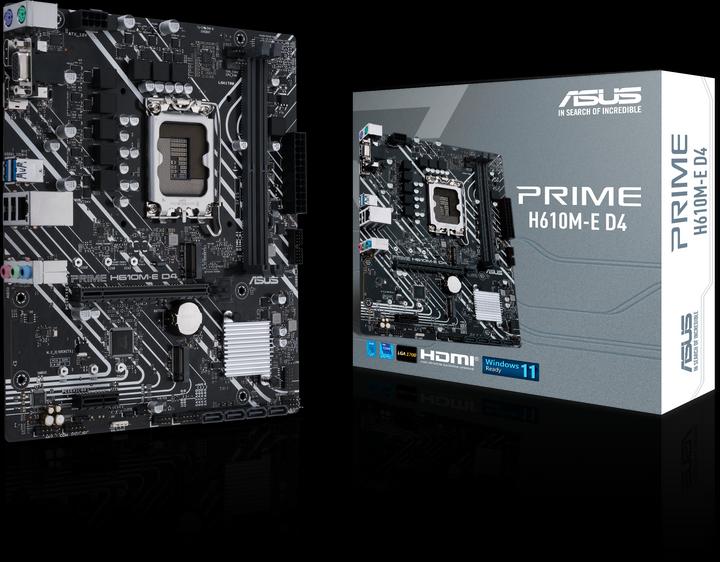

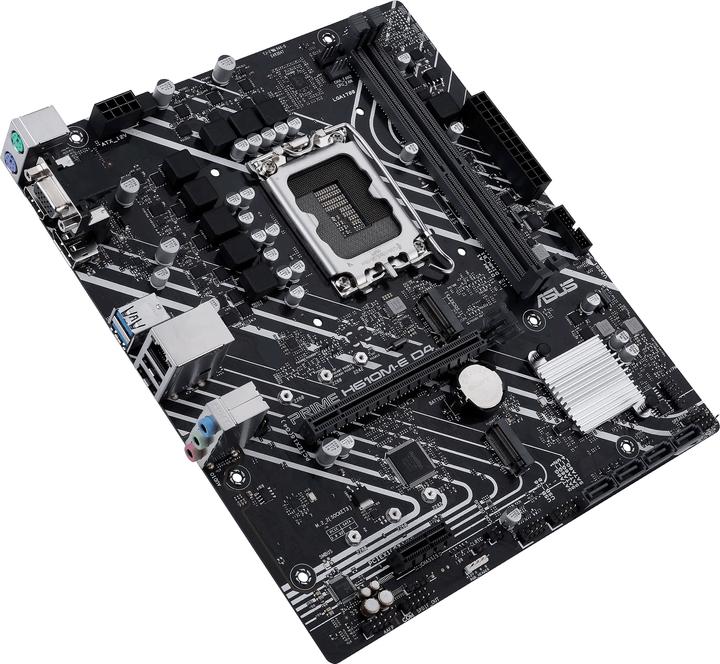

The ASUS Prime H610M-E D4-CSM motherboard is based on the Intel H610 chipset and supports Intel processors for the 12th generation with a socket 1700. It features two DDR4 DIMM slots operating in dual-channel mode for up to 64 GB of memory. Additional features of the ASUS Prime H610M-E D4-CSM include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. Furthermore, the ASUS Prime H610M-E D4-CSM offers 8-channel sound, a Gigabit LAN interface, four SATA3 ports, two M.2 slots, and a variety of USB interfaces.

Key specifications

Processor family
Celeron, Core i3, Core i5
Memory type
DDR4-RAM
Number of memory modules (RAM)
2 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Wi-Fi
Mainboard features
Trusted Platform Module
Item number
18299184

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB19N0-M0EAYC
Release date
3.1.2022

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel H610
Mainboard features
Trusted Platform Module
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Wi-Fi

Processor

Processor family
Celeron, Core i3, Core i5

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
2 x
Max. memory (RAM)
64 GB
Memory chip
DDR4-3200
Max. RAM OC
3200 MHz
Supported memory speed
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

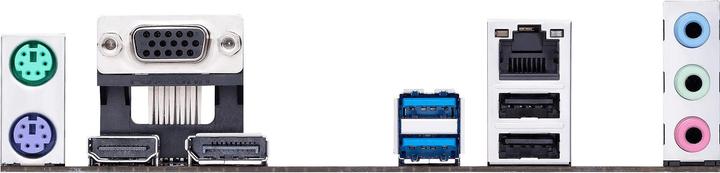

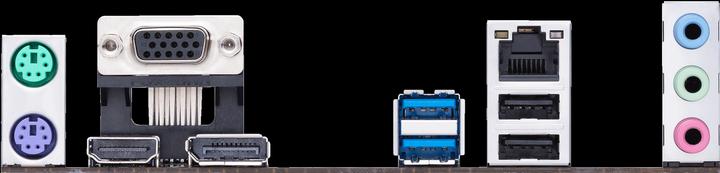

Video connections
DisplayPort (1x)
Video connection version
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Gigabit Ethernet
Max. port speed
1 Gbit/s

Audio

Chip
High Definition Audio
Audio channel
7.1 Channel
Audio Connections
Audio In

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x16 (1x), PCI Express x16 (Gen 4) (1x)
Number of fan connector
2

Further connections

USB ports
USB-C
Exact USB ports
USB-A 2.0 (2x), USB-A 3.2 Gen 1 (1x)

Power supply

Power connectors
20+8 pin ATX

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Cables supplied: SATA

Product dimensions

Length
211 mm
Width
244 mm
Height
221 mm
Weight
382 g

Package dimensions

Length
28 cm
Width
26.60 cm
Height
5.80 cm
Weight
879 g

30-day right of return
36 Months Warranty (Bring-in)
