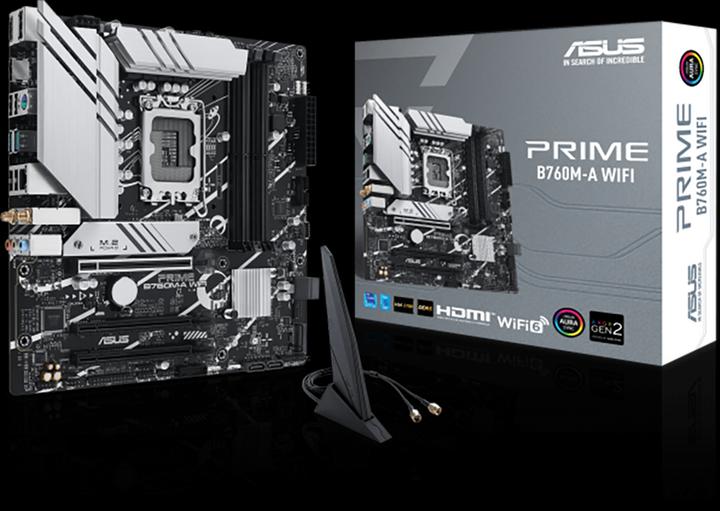

ASUS PRIME B760M-A WIFI

LGA 1700, Intel B760, mATX
1Ratings
BrandMore from ASUS
Delivered between Wed, 11.6. and Thu, 12.6.
6 items in stock at supplier

Product details

The ASUS Prime series motherboards have been expertly designed to fully utilize the potential of the 13th generation Intel Core processors. With a robust power supply design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B760M-A WIFI offers users and PC enthusiasts a range of performance optimizations through intuitive software and firmware features.

Key specifications

Processor family
Celeron, Core i3, Core i5
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (4x)
Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Front panel audio connector
Item number
25252973

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1EL0-M0EAY0
Release date
2.3.2023
External links
Manufacturer's site (de)

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1700
Chipset
Intel B760
Mainboard features
Front panel audio connector
Operating system compatibility
Windows, Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron, Core i3, Core i5

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
7200 MHz
Supported memory speed
5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (2x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Max. port speed
2.50 Gbit/s

Audio

Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Data storage

RAID configuration
0, 1, 10, 5

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 4) (2x)
PCI express version (max.)
4
Number of fan connector
2

Further connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x)

Power supply

Power connectors
20+8 pin ATX

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
244 mm
Height
50 mm
Weight
886 g

Package dimensions

Length
28.20 cm
Width
27.90 cm
Height
7.40 cm
Weight
1.46 kg
